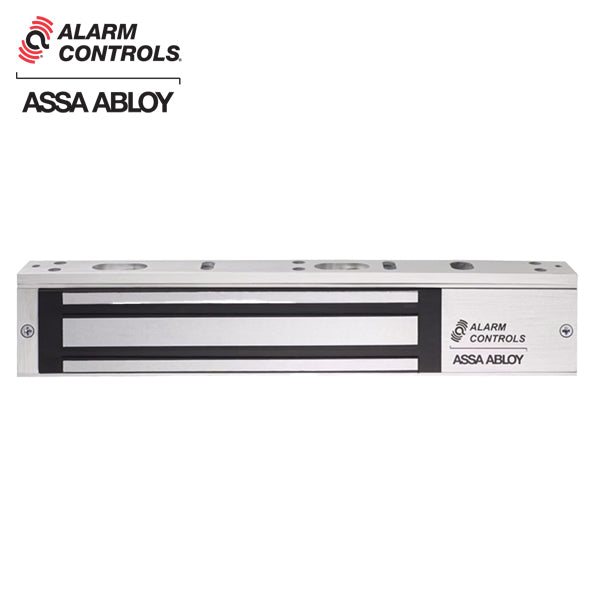

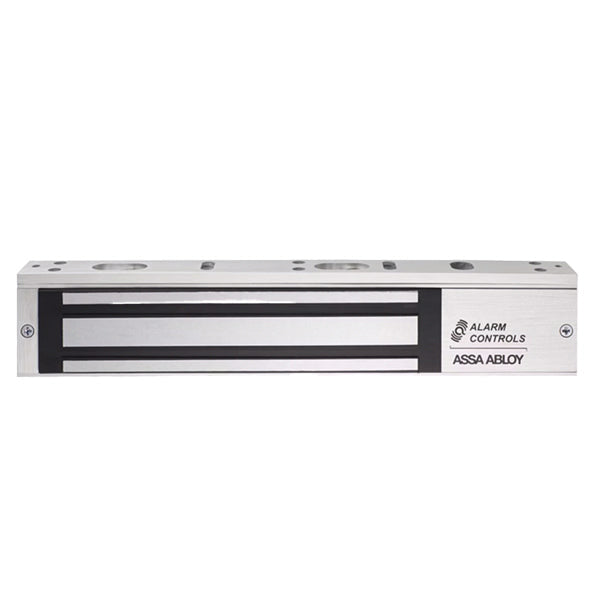

Alarm Controls - Single Magnetic Lock - 600LB 12/24VDC Single Aluminum
Available to Order
SKU:
ALARMCONTR-600S
NSID:
904
- $149.83
-
$179.79 - $149.83
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
The Maglock 600S ALA300600S is a Bracket-mounted, single magnetic lock with 600 lbs holding force that can be easily installed without special tools and used with any access control system. Ideal for high-use areas for traffic control in interior applications.
Features:
- It can be used with any access control system
- Self-drilling TEC screws
- Non-aluminum parts are plated to resist corrosion
- Instant release, no hysteresis
- Limited lifetime warranty
- E-Z mount system, no special tools required
- Built-in arc suppression
- Utilizes the ACC E-Z mount system for easy installation
Specification:
| Armature Depth | 0.5" |
| Armature Height | 1.5" |
| Armature Length | 7.25" |
| Magnet Depth [in] | 1" |
| Magnet Height | 1 11/16" |
| Magnet Length | 9 7/8" |
| Voltage | 12 or 24 VDC, field selectable |
| Current 12v DC | 505 mA |
| Current 24v DC | 260 mA |
| Maximum Operating Temperature | 131 °F |
| Minimum Operating Temperature | 14 °F |
| Holding Force | 600 |
| Certifications |
CE Certified, UL 294 recognized component |
| Door Supported |
Single Door |
