Hardwired Gateway, interfaces up to 63 Networx locks with PC network with hardwired Ethernet RJ45 with POE (Power Over Ethernet)

Features and benefits:

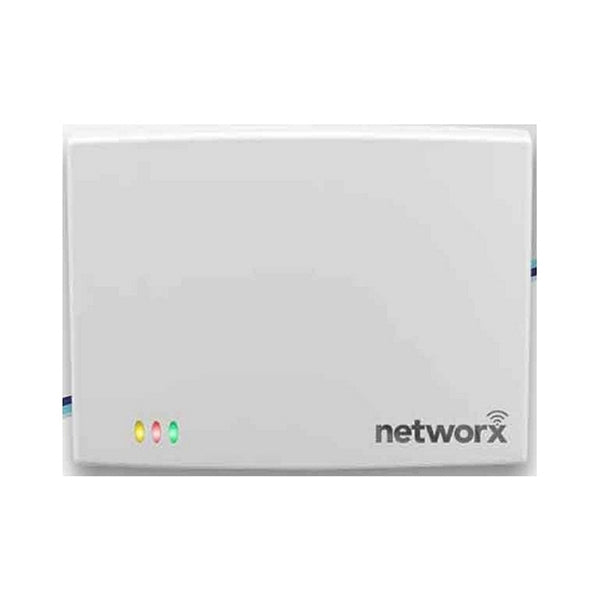

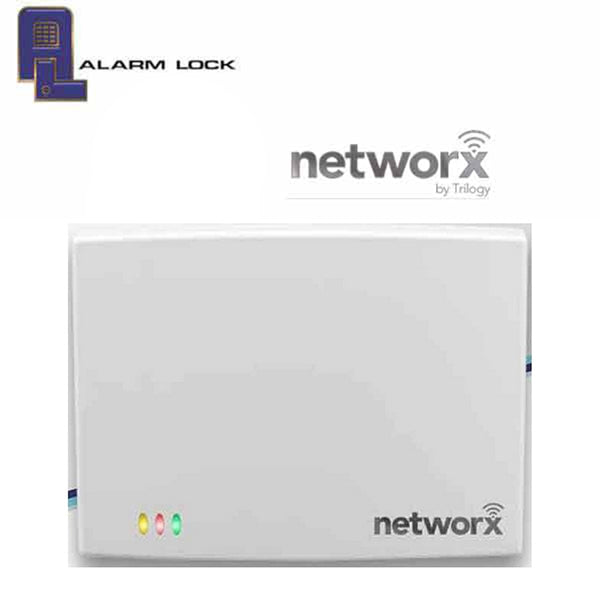

The Trilogy® Networx™ AL-IME2-POE (Power Over Ethernet) Hardwired Gateway Interface Module interfaces Networx locks with a PC network with hardwire Power-Over-Ethernet. It is very similar in function to the original hardwired Networx Gateway Modules, but is enhanced with alternative power, and additional extended potential range, supporting up to seven (7) Expanders (model AL-IME2-EXP Expanders). Also both Generation 2 Gateways and matching Expanders have a new modern styling, and three LED indicators, blending into any décor. AL-IME2-EXP Specifications

  • Maximum of 7 AL-IME-EXP Expanders per one Version 2 Series Gateway (Addressed as one group) NETWORK RANGE
  • Gateway/Expander to Locks: Clear field range 500’. Typical indoor range, Networx 75- 175’; ArchiTech Networx 50 -125’. Note: Actual range varies with building construction.
  • Gateway/Expander to Expander: Clear field range 500’. Typical indoor range, 75- 175’. Note: Actual range varies with building construction. AL RADIO LINK
  • 900 MHz GFSK
  • 50 Channels
  • 10 mW power output POWER
  • Peak Supply Current: 650 mA
  • Input Voltage: 5 - 6 volts AC
  • Requires one(1) 6VAC External Power Supply ENVIRONMENTAL
  • Operating Temperature: -20˚ to 60˚C (-4˚ to 140˚F)
  • Storage Temperature: -40˚ to 85˚C (-40˚ to 185˚F) SOFTWARE SUPPORTED
  • Trilogy Networx supported by Alarm Lock DL-WINDOWS for centralized programming, database management and updates; free download available online. Optional Enterprise Real-Time Processing Solution choice of Lenel OnGuard® or Continental CardAccess® Integration. PHYSICAL CHARACTERISTICS
  • Enclosure Size 4.5”H x 6.0”W x 1.94”D, 0.5lbs
Call 1-800-878-6604 for Bulk / Dealer Pricing!
Dimensions 4.5 (H) x 6.0 (W) x 1.94 (D) in.
Environmental Operating Temperature: -4˚ to 140˚F (-20˚ to 60˚C)
Network Interface Ethernet, 10Base-T or 100Base-TX (using RJ-45 jack)
Wireless Protocol 900MHz, DHCP, TCP/IP, UDP/IP
Power POE (Power Over Ethernet)
Storage Temperature Range -40° to 185°F (-40° to 85°C)
Manufacturer Alarm Lock
Brand Trilogy Networx
Weight 0.5 lbs
Warranty 2 Year Manufacturer



Return Policy: We accept returns on unopened products up to 30 days after the date of purchase. We do not accept opened/damaged/defective goods. To return affected items please contact Alarm Lock directly at 1-800-645-9440 or visit their support page here

Note: Actual range varies with building construction.

Compatible With

Note: Actual range varies with building construction.
