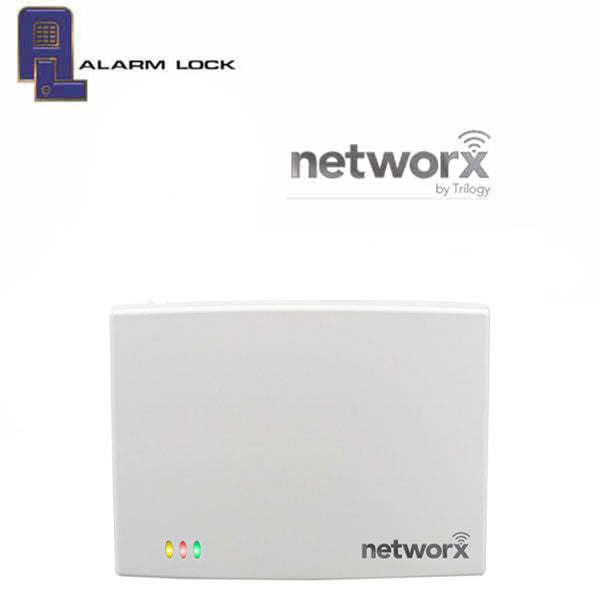

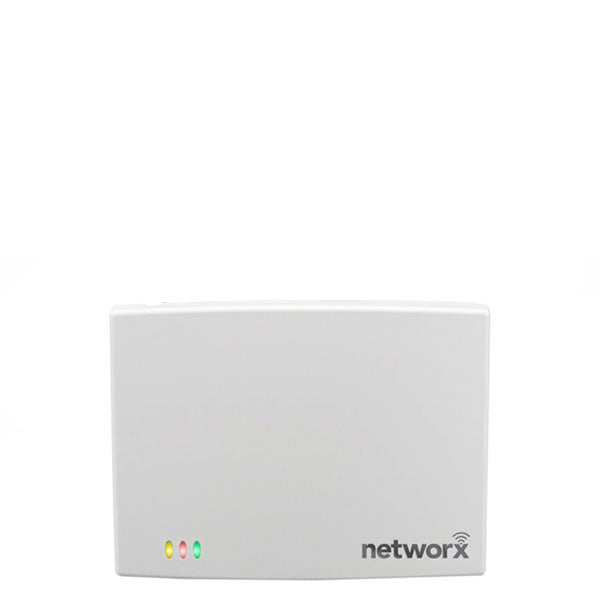

Alarm Lock Networx- IME3-POE - Generation 3 POE Gateway - Power Over Ethernet - Compatible with Version 2 Gateway

In Stock
SKU: ALL-AL-IME3-POE
NSID: 66687

Get it shipped ! Order within:

Get it shipped ! Order within:

Get an Extra Hour with

$350.20
$408.00
$350.20

The Trilogy Networx AL-IM3-POE is a Gateway device used within the Trilogy Networx™ wireless system. Combines with wireless wall-mounted expanders and plug-in wireless expanders to cover more building space with a single IP address. Installation is simple, only requiring access to one RJ-45 Ethernet network cable for both communication and power.

Note: Version 3 Gateway Expanders CAN be mixed into an existing system that includes older non-version 2 gateways as long as one Version 3 Gateway is connected to the system.


Call 1-800-878-6604 for Bulk / Dealer Pricing!
Dimensions 4.5 (H) x 6.0 (W) x 1.94 (D) in.
Environmental Operating Temperature: -4°F – 140°F (-20°C – 60°C)
Storage Temperature Range -40° to 185°F (-40° to 85°C)
Network Range Gateway/Expander to Locks: Clear field range 500'.
Typical indoor range, Networx 75- 175'; ArchiTech Networx 50-125'. Note: Actual range varies with building construction. Gateway/Expander to Expander: Clear field range 500'. Typical indoor range, 75- 175'. Note: Actual range varies with building construction.
Wireless Protocol DHCP, TCP/IP, UDP/IP
Radio Frequency 900MHz
Ethernet  100Base-TX (Using RJ-45 Jack), 10Base-T
Power POE
Current 650 mA
Manufacturer Alarm Lock
Brand Trilogy Networx
Weight 0.5 lbs
Warranty 2 Year Manufacturer Warranty


Return Policy: We accept returns on unopened products up to 30 days after the date of purchase. We do not accept opened/damaged/defective goods. To return affected items please contact Alarm Lock directly at 1-800-645-9440 or visit their support page here

Downloads:
Spec Sheet

Note: Actual range varies with building construction.

Compatible With

Note: Actual range varies with building construction.
