Alarm Lock Trilogy - AL-IME-USB - Portable Networx Gateway Version 2
Get it shipped ! Order within:
Get it shipped ! Order within:
Get an Extra Hour with
- $183.72
-
$300.00 - $183.72
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per

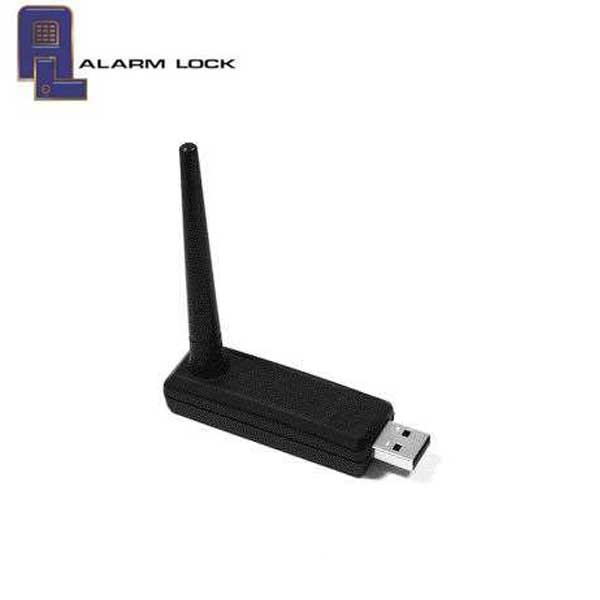

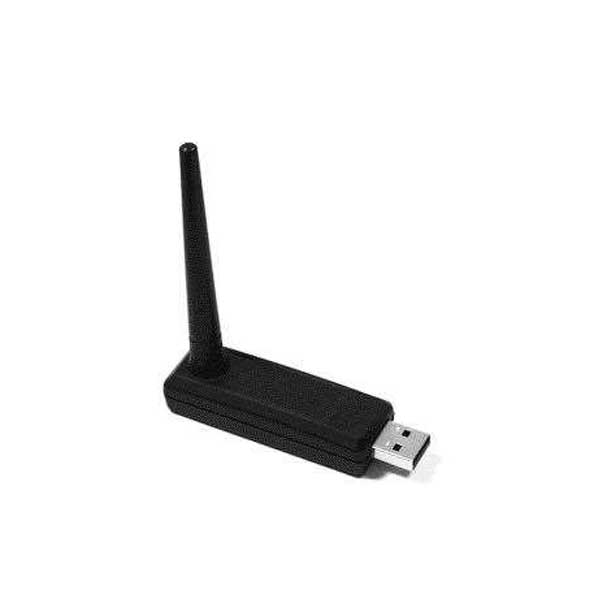

With the Alarm Lock IME - USB Portable USB Internet Gateway discover, add, and program Networx locks and retrieve tracking logs without a network on site. Ideal for a remote facility such as a cell tower, gates, or any access points outside the reach of your network.
This USB Portable Gateway provides full Networx Gateway functionality without the need for a network connection. Simply insert the USB Gateway into your PC or laptop USB socket, and you can quickly create a wireless connection to your Networx door locks, with all data routed through the USB Gateway. In addition, the USB Gateway can be used in an existing system with standard Networx Gateways. The USB Gateway is a flexible device. No data is stored within the USB Gateway itself, and therefore a single USB Gateway can be switched seamlessly between computers running DL-Windows and even between DL-Windows accounts (the USB Gateway is automatically provided with the necessary lock data from DL-Windows each time communications are initiated with locks).
- Portable Networx gateway
- Allows communication with locks without using a network (very convenient if your network goes down)
- Supplied with 6″ USB extension cable for computers with USB sockets positioned in close proximity
- Supports up to 2000 locks
- Range: 200 feet, depending on building construction materials
- Input power supplied by PC or laptop
- More Information Below
System Requirements
- Supported operating systems: Windows XP Service Pack 3, Windows 7, 32-Bit and 64-Bit Systems
- Processor: 2GHz or faster is recommended
- RAM: 1GB or more is recommended
- Hard Disk Space: 1GB or more is recommended
- DL-Windows software (FREE download) version: 5.2 or greater
-
Note: Only “Local” Emergency Commands are supported when using a USB Gateway as your primary means of communicating with your locks. If no standard Networx Gateways are used in your system, Emergency Commands can only be initiated by a pre-programmed Wireless Remote Release (not with DL-Windows).
Specifications
| Dimensions | 1/2 (H) x 7/8 (W) x 3 1/8 (L) in. | (2 1/2 (H) in. with 2 in. antennae |
| Wireless Protocol | 900MHz |
| Remote Range | 200 ft |
| Manufacturer | Alarm Lock |
| Brand | Trilogy Networx |
| Weight | 0.2 lbs |
| Warranty | 2 Year Manufacturer |
Return Policy: We accept returns on unopened products up to 30 days after the date of purchase. We do not accept opened/damaged/defective goods. To return affected items please contact Alarm Lock directly at 1-800-645-9440 or visit their support page here
