Alarm Lock

Alarm Lock Trilogy - DL1200 - Narrow Stile Keypad Lever Lock - 10B - Durondic Bronze - Grade 1

Alarm Lock Trilogy - DL1200 - Narrow Stile Keypad Lever Lock - 10B - Durondic Bronze - Grade 1

In stock
SKU ALL-DL1200-10B1 NSID 898
$498.95$598.74On Sale You save $99.79 (17%)
Get it shipped Today! Order within:

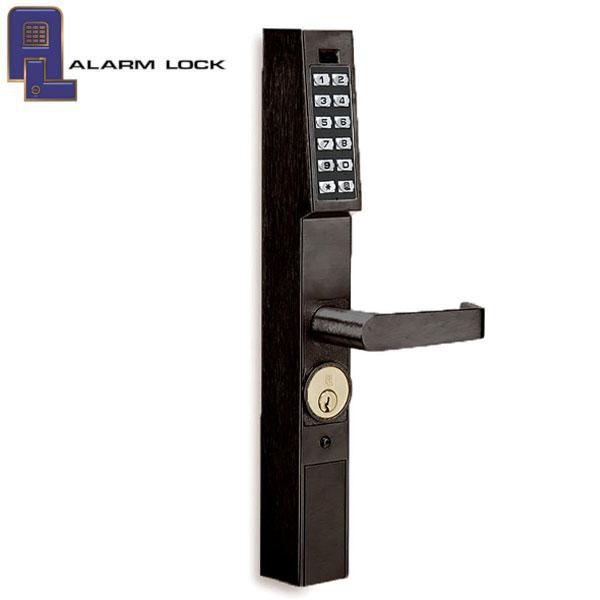

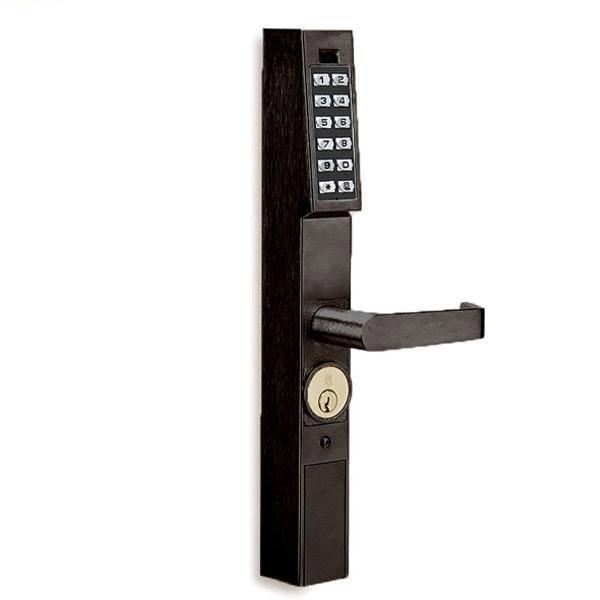

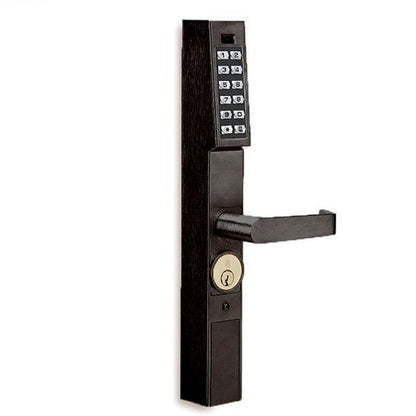

The Alarm Lock Trilogy is a stand‑alone, non‑handed narrow‑stile lever trim equipped with a durable, vandal‑resistant, all‑metal 12‑button keypad. Designed for use on aluminum or glass doors, it allows up to 100 unique 3‑6 digit PIN user codes, programmed directly on the keypad—no PC or external software required. Powered by two long‑life lithium 3 V batteries (DL123A), it delivers approximately 100,000 cycles and includes audible and visual low‑battery alerts.

More Information Below

Call 1-800-878-6604 for Bulk / Dealer Pricing!
View full details

Details

SPECIFICATIONS:

LOCK FUNCTION Entrance Narrow Stile Keypad Lever Lock
DOOR THICKNESS Only Stile thickness 1 ¾"
BACKSET 31/32”,1 1/8’ and 1-1/2”
HANDING Non-handed; fully field-reversible
POWER Long-life, battery-operated for 100,000 and 80,000 cycles respectively, typical on 2 lithium 3V batteries, supplied; low battery alert
CYLINDER 1-1/4” supplied (Supports 1-1/8, 1-1/4, and 1-3/8”)
PROGRAMMABLE Yes
USER CODES keypad supports 100 users, fingertip/keypad programmable
WEATHERPROOF -31˚ to +151˚F (-35˚ to +66˚C)
FINISH 10B Durondic Bronze



Return Policy: We accept returns on unopened products up to 30 days after the date of purchase. We do not accept opened/damaged/defective goods. To return affected items please contact Alarm Lock directly at 1-800-645-9440 or visit their support page here

Downloads:
Brochure
