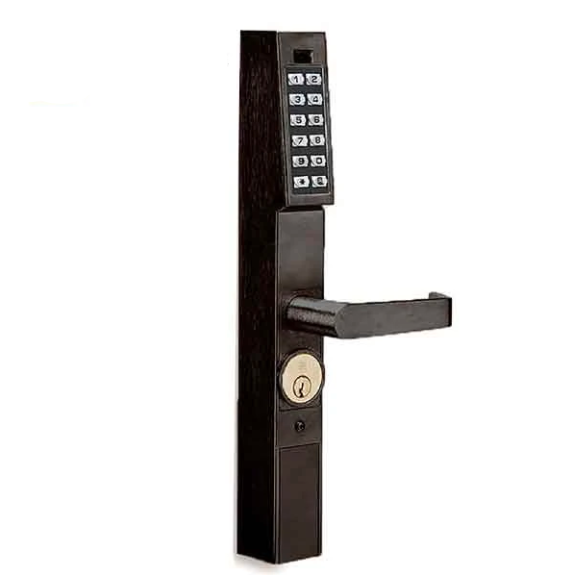

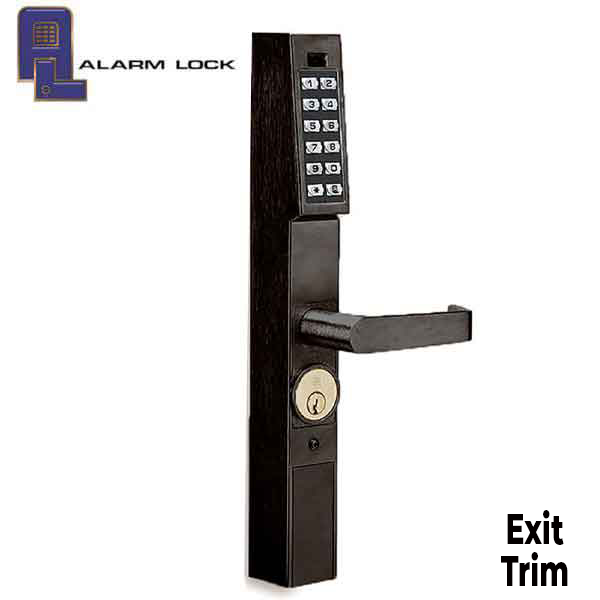

The Trilogy Narrow Stile Keypad Exit Lever Lock is designed for compatibility with various panic exit bars, delivering field‑proven Trilogy® keyless access control for any narrow‑stile door. Built with a weatherproof, all‑metal construction, it is durable, vandal‑resistant, and ideal for high‑traffic environments. This lock offers convenient features such as automatic locking or free passage scheduling, emergency global lockdown in seconds, and exceptional battery life. The DL1200 series is a rugged, advanced entry solution with multiple programmable options for reliable and secure access.
Important Note: Tailpiece is sold separately and is required for most installations
Cylinder not included
(compatibility table below)
| --- | Tailpiece | Compatible Devices |
|---|---|---|
 |
ALL-TP-1691 | Arrow S1200/1250, Von Duprin 22 & Dorma 5300, DCI 1200/1300 Panic Devices |
 |
ALL-TP-1693 | Corbin ED8200 Panic Device |
 |
ALL-TP-1694 | Von Duprin 33 LH (RHR) Devices only |
| Specifications | |
|---|---|
| LOCK FUNCTION | Narrow Stile Keypad Exit Lever Lock |
| DOOR THICKNESS | Only Stile thickness 1 ¾" |
| BACKSET | 31/32”,1 1/8’ and 1-1/2” |
| HANDING | Non-handed; fully field-reversible |
| LEVER TRIM | Aluminum door retrofit Arrow, DCI, Von Duprin and Dorma panic exit bars |
| POWER | Long-life, battery-operated for 100,000 and 80,000 cycles respectively, typical on 2 lithium 3V batteries, supplied; low battery alert |
| CYLINDER | 1-1/4” Cylinder (Not Included) (Supports 1-1/8, 1-1/4, and 1-3/8”) |
| PROGRAMMABLE | Yes |
| USER CODES | keypad supports 100 users, fingertip/keypad programmable |
| WEATHERPROOF | -31˚ to +151˚F (-35˚ to +66˚C) |
| FINISH | 10B Durondic Bronze |
Return Policy: We accept returns on unopened products up to 30 days after the date of purchase. We do not accept opened/damaged/defective goods. To return affected items please contact Alarm Lock directly at 1-800-645-9440 or visit their support page here
Downloads:
Brochure
