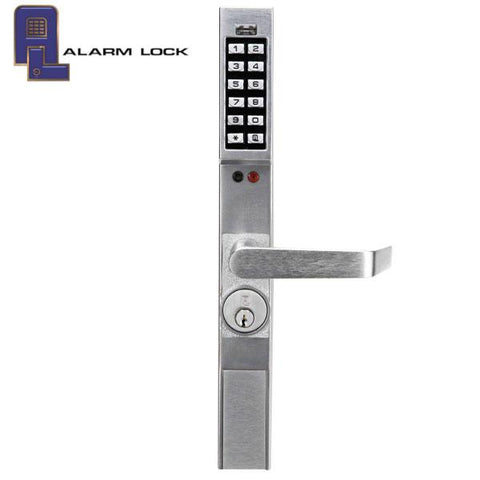

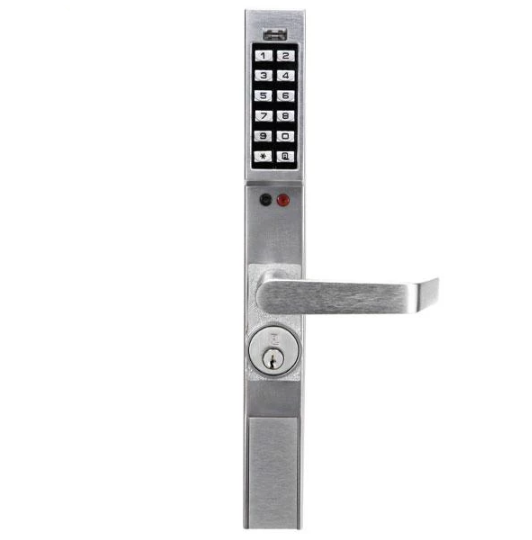

Alarm Lock Trilogy - DL1300 - Narrow Stile Keypad Lever Lock w/ Audit Trail - 26D - Satin Chrome - Grade 1
Get it shipped ! Order within:
Get it shipped ! Order within:
Get an Extra Hour with
- $548.95
-
$606.08 - $548.95
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
AL-DL1300-26D
The Trilogy Narrow Stile Keypad Lever Lock with Audit Trail provides proven Trilogy® keyless access control for narrow-stile compatible doors. Built with a weatherproof, all-metal construction, it is designed to withstand demanding environments while remaining fully vandal-resistant. This lock features automatic locking or free passage scheduling, emergency global lockdown in seconds, and an audit trail for tracking access events. With exceptional battery life and advanced programmable options, the DL1300 series offers a rugged and reliable solution for secure entry management.
More Information Below
SPECIFICATIONS:
| LOCK FUNCTION | Entrance Narrow Stile Keypad Lever Lock w/ Audit Trail |
| DOOR THICKNESS | Only Stile thickness 1 ¾" |
| BACKSET | 31/32”,1 1/8’ and 1-1/2” |
| HANDING | Non-handed; fully field-reversible |
| POWER | Long-life, battery-operated for 100,000 and 80,000 cycles respectively, typical on 2 lithium 3V batteries, supplied; low battery alert |
| CYLINDER | 1-1/4” supplied (Supports 1-1/8, 1-1/4, and 1-3/8”) |
| PROGRAMMABLE | Yes |
| USER CODES | support 2000 users, PC programming/reporting and features 40,000 events audit trail by the user and 500 events schedule/real-time clock (e.g. lock/unlock by time) |
| WEATHERPROOF | -31˚ to +151˚F (-35˚ to +66˚C) |
| FINISH | 26D Satin Chrome |
Return Policy: We accept returns on unopened products up to 30 days after the date of purchase. We do not accept opened/damaged/defective goods. To return affected items please contact Alarm Lock directly at 1-800-645-9440 or visit their support page here
Downloads:
Brochure
Specifications
