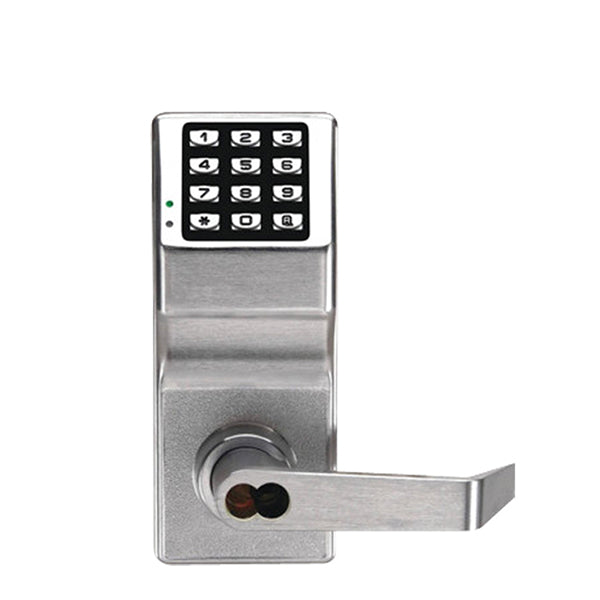

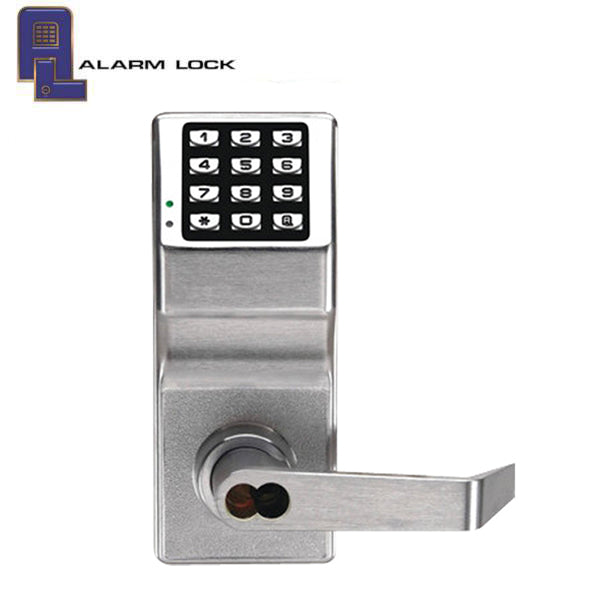

Alarm Lock Trilogy - DL2700LD - Trilogy T2 - Digital Keypad Lock Lever Set - Lockdown Function -Weatherproof - SFIC -26D - Satin Chrome - Grade 1
Alarm Lock Trilogy - DL2700LD - Trilogy T2 - Digital Keypad Lock Lever Set - Lockdown Function -Weatherproof - SFIC -26D - Satin Chrome - Grade 1
Alarm Lock Trilogy - DL2700LD - Trilogy T2 - Digital Keypad Lock Lever Set - Lockdown Function -Weatherproof - SFIC -26D - Satin Chrome - Grade 1
Alarm Lock Trilogy - DL2700LD - Trilogy T2 - Digital Keypad Lock Lever Set - Lockdown Function -Weatherproof - SFIC -26D - Satin Chrome - Grade 1
Alarm Lock Trilogy - DL2700LD - Trilogy T2 - Digital Keypad Lock Lever Set - Lockdown Function -Weatherproof - SFIC -26D - Satin Chrome - Grade 1

Alarm Lock Trilogy - DL2700LD - Trilogy T2 - Digital Keypad Lock Lever Set - Lockdown Function -Weatherproof - SFIC -26D - Satin Chrome - Grade 1

$502.74 $628.43
Availability: Available
Wishlist
  • Product SKU: ALL-DL2700WIC/26D-S
  • NSID: 44336
  • ALL-DL2700WIC/26D-S

    The Trilogy DL2700 Series is one of Alarm Lock's most popular standalone pushbutton cylindrical lock with Grade 1 durability. a leader in access and egress solutions for education, healthcare, multi-use commercial, retail, transportation & industry. Field-proven reliability.

    • Lockdown Function: Lockdown up to four locks with one compact remote keyfob, supplied. (up to 50 RR-4KEYFOB keyfobs supported per lock).
    • Electronic battery-operated standalone digital cylindrical keyless door lock.
    • More codes: up to 100 3-5 digit codes: 1 master, 10 managers, 90 basic users, 3 one-time service codes
    • SFIC- Small Format Interchangeable Core (Core Sold Separately)
    • Weather Proof

    $502.74
    Get it shipped
    Today!
    Order within
    00 Hrs
    00 Mins
    00 Secs



SPECIFICATIONS

LOCK FUNCTION Entrance
OPERATION The clutch mechanism permits turning the lever without retracting the latch and reduces stress on lock bodies and spindle. Outside lever free turning in the locked position. Entering access code, key bypass, or remote bypass will allow the lever to retract the latch. Inside lever always instant egress
DOOR THICKNESS 1 5/8" to 1 7/8."
BACKSET 2 3/4" Standard.
KEYPAD All metal, 12 buttons programmable for multi-level access functions including group or individual user codes, master and management codes, passage and emergency or service code, lockout and remote override capability, and allowable entry time from 5 to 20 seconds. 4 Different keypad tones and keypad may be silenced
INTERCHANGEABLE CORE MODELS Accepts 6 & 7 Pin Cylinders from Best, Arrow, KSP, Medeco Keymark & Kaba Peaks. Alarm Lock Tailpiece is supplied; IC Core is not included
LATCHBOLT UL Listed, fire-rated, 3 hours, 1/2” throw, solid brass, deadlocking. Reversible. Adjustable front for flat or beveled doors
STRIKE 1 1/8” x 2 3/4” T strike & 1 1/4” x 4 7/8” ASA strike included. With screws for wood or metal jambs
LATCH FRONT 1 1/8” x 2 1/4” wrought brass or stainless steel
HANDING Non-handed
FINISHES US26D satin chrome
POWER 5 AA alkaline batteries are now rated at 200,000 cycles, supplied. Audible low battery alert, visual and audible entry indicators, unique Flex Drive® motor
DOOR PREP Standard ANSI 161 Series Prep, modified by adding additional through-bolt holes
COMPLIANCES Grade 1, heavy-duty cylindrical lockset, UL listed and FCC certified. ADA compliant lever sets



Return Policy: We accept returns on unopened products up to 30 days after the date of purchase. We do not accept opened/damaged/defective goods. To return affected items please contact Alarm Lock directly at 1-800-645-9440 or visit their support page here

Downloads:
Brochure
Specifications

ALL-DL2700WIC/26D-S

The Trilogy DL2700 Series is one of Alarm Lock's most popular standalone pushbutton cylindrical lock with Grade 1 durability. a leader in access and egress solutions for education, healthcare, multi-use commercial, retail, transportation & industry. Field-proven reliability.

  • Lockdown Function: Lockdown up to four locks with one compact remote keyfob, supplied. (up to 50 RR-4KEYFOB keyfobs supported per lock).
  • Electronic battery-operated standalone digital cylindrical keyless door lock.
  • More codes: up to 100 3-5 digit codes: 1 master, 10 managers, 90 basic users, 3 one-time service codes
  • SFIC- Small Format Interchangeable Core (Core Sold Separately)
  • Weather Proof



SPECIFICATIONS

LOCK FUNCTION Entrance
OPERATION The clutch mechanism permits turning the lever without retracting the latch and reduces stress on lock bodies and spindle. Outside lever free turning in the locked position. Entering access code, key bypass, or remote bypass will allow the lever to retract the latch. Inside lever always instant egress
DOOR THICKNESS 1 5/8" to 1 7/8."
BACKSET 2 3/4" Standard.
KEYPAD All metal, 12 buttons programmable for multi-level access functions including group or individual user codes, master and management codes, passage and emergency or service code, lockout and remote override capability, and allowable entry time from 5 to 20 seconds. 4 Different keypad tones and keypad may be silenced
INTERCHANGEABLE CORE MODELS Accepts 6 & 7 Pin Cylinders from Best, Arrow, KSP, Medeco Keymark & Kaba Peaks. Alarm Lock Tailpiece is supplied; IC Core is not included
LATCHBOLT UL Listed, fire-rated, 3 hours, 1/2” throw, solid brass, deadlocking. Reversible. Adjustable front for flat or beveled doors
STRIKE 1 1/8” x 2 3/4” T strike & 1 1/4” x 4 7/8” ASA strike included. With screws for wood or metal jambs
LATCH FRONT 1 1/8” x 2 1/4” wrought brass or stainless steel
HANDING Non-handed
FINISHES US26D satin chrome
POWER 5 AA alkaline batteries are now rated at 200,000 cycles, supplied. Audible low battery alert, visual and audible entry indicators, unique Flex Drive® motor
DOOR PREP Standard ANSI 161 Series Prep, modified by adding additional through-bolt holes
COMPLIANCES Grade 1, heavy-duty cylindrical lockset, UL listed and FCC certified. ADA compliant lever sets



Return Policy: We accept returns on unopened products up to 30 days after the date of purchase. We do not accept opened/damaged/defective goods. To return affected items please contact Alarm Lock directly at 1-800-645-9440 or visit their support page here

Downloads:
Brochure
Specifications
