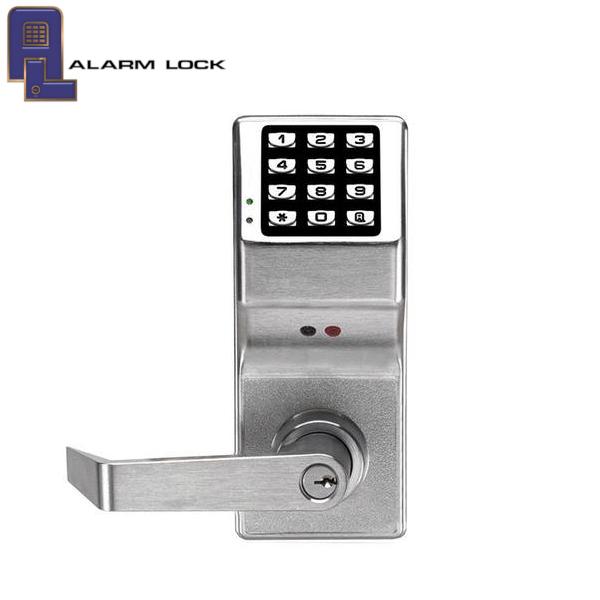

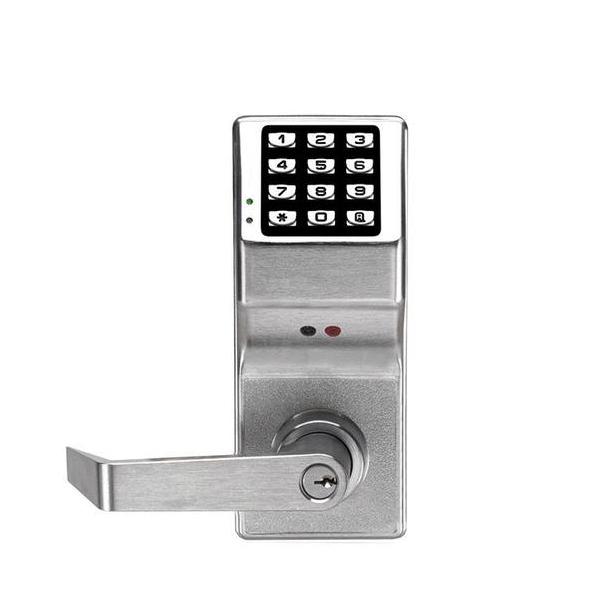

Alarm Lock Trilogy - DL2800 - Digital Keypad Lever Set w/ Audit Trail - 26D - Satin Chrome
Alarm Lock Trilogy - DL2800 - Digital Keypad Lever Set w/ Audit Trail - 26D - Satin Chrome
Alarm Lock Trilogy - DL2800 - Digital Keypad Lever Set w/ Audit Trail - 26D - Satin Chrome
Alarm Lock Trilogy - DL2800 - Digital Keypad Lever Set w/ Audit Trail - 26D - Satin Chrome
Alarm Lock Trilogy - DL2800 - Digital Keypad Lever Set w/ Audit Trail - 26D - Satin Chrome

Alarm Lock Trilogy - DL2800 - Digital Keypad Lever Set w/ Audit Trail - 26D - Satin Chrome

$511.82 $599.99
Availability: In Stock
  • Product SKU: ALL-DL2800-26D
  • NSID: 957
  • AL-DL2800-26D

    The Trilogy DL2800 Series is one of Alarm Lock's most popular standalone pushbutton cylindrical locks with Grade 1 durability. A leader in access and egress solutions for education, healthcare, multi-use commercial, retail, transportation & industry. Field-proven reliability.

    • Electronic battery-operated standalone digital cylindrical keyless door lock.
    • More codes: up to 200 3-5 digit codes: 1 master, 10 managers, 90 basic users, 3 one-time service codes

    $511.82
    Get it shipped
    Today!
    Order within
    00 Hrs
    00 Mins
    00 Secs

SPECIFICATIONS

LOCK FUNCTION Entrance Digital Keypad Lever Lock w/ Audit Trail
OPERATION The clutch mechanism permits turning the lever without retracting the latch and reduces stress on lock bodies and spindle. Outside lever free turning in the locked position. Entering access code, key bypass, or remote bypass will allow the lever to retract the latch. Inside lever always instant egress
DOOR THICKNESS 1 5/8" to 1 7/8."
BACKSET 2 3/4" Standard
KEYPAD All metal, 12 buttons programmable for multi-level access functions including group or individual user codes, master and management codes, passage and emergency or service code, lockout and remote override capability, and allowable entry time from 5 to 20 seconds. 4 Different keypad tones and keypad may be silenced
STANDARD KEY OVERRIDE CYLINDERS Solid brass 6 pin tumbler cylinder pinned 5, SC1 keyway, furnished in all locks. Additional tailpieces included HW580 fits Schlage, Corbin/ Russwin CL, Sargent 480 Series, ASSA65-611. Model HW620 fits Ilco and Lori cylinders
LATCHBOLT UL Listed, fire-rated, 3 hours, 1/2” throw, reversible
STRIKE 1 1/8” x 2 3/4” T strike & 1 1/4” x 4 7/8” ASA strike included. With screws for wood or metal jambs
LATCH FRONT 1 1/8” x 2 1/4” wrought brass or stainless steel
HANDING Non-handed
USERS Holds up to 200 codes. Master, Management, Supervisor & basic user. 150 event schedule, real-time clock & 1000 event audit trail.
FINISHES US26D satin chrome
POWER 5 AA alkaline batteries are now rated at 200,000 cycles, supplied. Audible low battery alert, visual and audible entry indicators, unique Flex Drive® motor
DOOR PREP Standard ANSI 115 Series Prep, modified by adding additional through-bolt holes
COMPLIANCES Grade 1, heavy-duty cylindrical lockset, UL listed and FCC certified. ADA compliant lever sets

Return Policy: We accept returns on unopened products up to 30 days after the date of purchase. We do not accept opened/damaged/defective goods. To return affected items please contact Alarm Lock directly at 1-800-645-9440 or visit their support page here

Additional Downloads:
Brochure
Spec Sheet

AL-DL2800-26D

The Trilogy DL2800 Series is one of Alarm Lock's most popular standalone pushbutton cylindrical locks with Grade 1 durability. A leader in access and egress solutions for education, healthcare, multi-use commercial, retail, transportation & industry. Field-proven reliability.

  • Electronic battery-operated standalone digital cylindrical keyless door lock.
  • More codes: up to 200 3-5 digit codes: 1 master, 10 managers, 90 basic users, 3 one-time service codes

SPECIFICATIONS

LOCK FUNCTION Entrance Digital Keypad Lever Lock w/ Audit Trail
OPERATION The clutch mechanism permits turning the lever without retracting the latch and reduces stress on lock bodies and spindle. Outside lever free turning in the locked position. Entering access code, key bypass, or remote bypass will allow the lever to retract the latch. Inside lever always instant egress
DOOR THICKNESS 1 5/8" to 1 7/8."
BACKSET 2 3/4" Standard
KEYPAD All metal, 12 buttons programmable for multi-level access functions including group or individual user codes, master and management codes, passage and emergency or service code, lockout and remote override capability, and allowable entry time from 5 to 20 seconds. 4 Different keypad tones and keypad may be silenced
STANDARD KEY OVERRIDE CYLINDERS Solid brass 6 pin tumbler cylinder pinned 5, SC1 keyway, furnished in all locks. Additional tailpieces included HW580 fits Schlage, Corbin/ Russwin CL, Sargent 480 Series, ASSA65-611. Model HW620 fits Ilco and Lori cylinders
LATCHBOLT UL Listed, fire-rated, 3 hours, 1/2” throw, reversible
STRIKE 1 1/8” x 2 3/4” T strike & 1 1/4” x 4 7/8” ASA strike included. With screws for wood or metal jambs
LATCH FRONT 1 1/8” x 2 1/4” wrought brass or stainless steel
HANDING Non-handed
USERS Holds up to 200 codes. Master, Management, Supervisor & basic user. 150 event schedule, real-time clock & 1000 event audit trail.
FINISHES US26D satin chrome
POWER 5 AA alkaline batteries are now rated at 200,000 cycles, supplied. Audible low battery alert, visual and audible entry indicators, unique Flex Drive® motor
DOOR PREP Standard ANSI 115 Series Prep, modified by adding additional through-bolt holes
COMPLIANCES Grade 1, heavy-duty cylindrical lockset, UL listed and FCC certified. ADA compliant lever sets

Return Policy: We accept returns on unopened products up to 30 days after the date of purchase. We do not accept opened/damaged/defective goods. To return affected items please contact Alarm Lock directly at 1-800-645-9440 or visit their support page here

Additional Downloads:
Brochure
Spec Sheet
