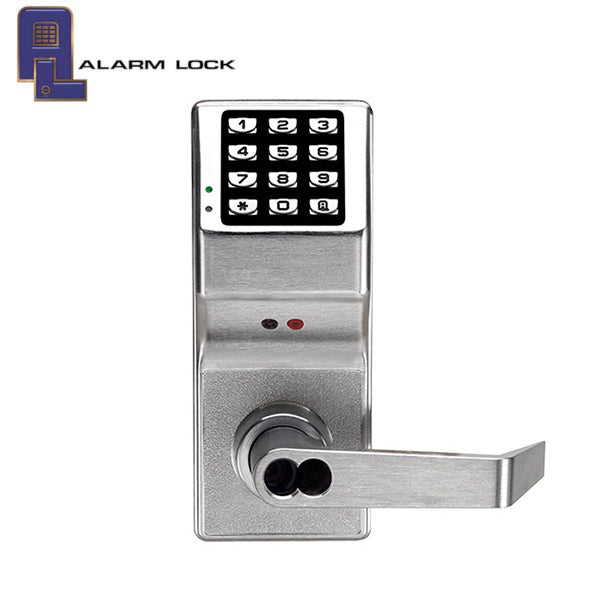

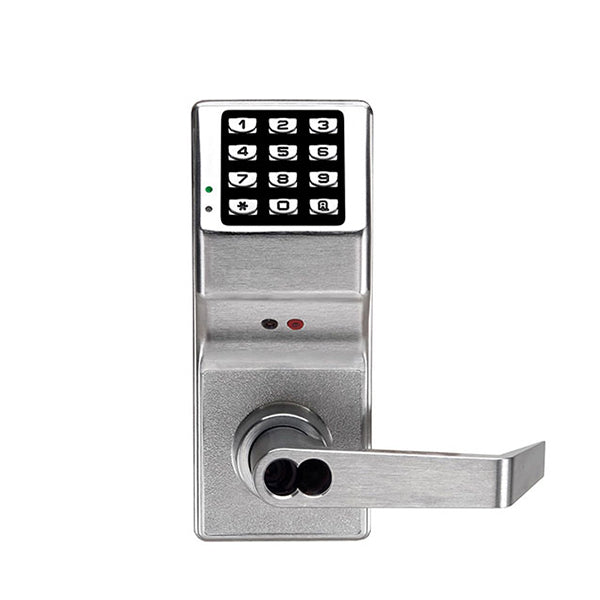

*Discontinued* Alarm Lock Trilogy - DL2800 - Digital Keypad Lever Set w/ Audit Trail - IC Core Prep - 26D - Satin Chrome
Out of Stock
SKU:
ALL-DL2800IC-R-US26D
NSID:
37231
- $572.02
-
- $572.02
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
The Trilogy DL2800 Series is one of Alarm Lock's most popular standalone pushbutton cylindrical locks with Grade 1 durability. A leader in access and egress solutions for education, healthcare, multi-use commercial, retail, transportation & industry. Field-proven reliability.
- Electronic battery-operated standalone digital cylindrical keyless door lock.
- More codes: up to 200 3-5 digit codes: 1 master, 10 managers, 90 basic users, 3 one-time service codes
- Sargent Interchangeable Core Prepped
- $572.02
-
- $572.02
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Description
xSPECIFICATIONS
| LOCK FUNCTION | Entrance Digital Keypad Lever Lock w/ Audit Trail |
| OPERATION | The clutch mechanism permits turning the lever without retracting the latch and reduces stress on lock bodies and spindle. Outside lever free turning in the locked position. Entering access code, key bypass, or remote bypass will allow the lever to retract the latch. Inside lever always instant egress |
| DOOR THICKNESS | 1 5/8" to 1 7/8." |
| BACKSET | 2 3/4" Standard |
| KEYPAD | All metal, 12 buttons programmable for multi-level access functions including group or individual user codes, master and management codes, passage and emergency or service code, lockout and remote override capability, and allowable entry time from 5 to 20 seconds. 4 Different keypad tones and keypad may be silenced |
| STANDARD KEY OVERRIDE CYLINDERS | Accepts 6 & 7 Pin Cylinders from: Best, Arrow, KSP, Medeco Keymark & Kaba Peaks. Also available IC Core models for Yale, Medeco, Sargent, Corbin/Russwin CL and Schlage. Alarm Lock Tailpiece is supplied; IC Core is not included |
| LATCHBOLT | UL Listed, fire-rated, 3 hours, 1/2” throw, reversible |
| STRIKE | 1 1/8” x 2 3/4” T strike & 1 1/4” x 4 7/8” ASA strike included. With screws for wood or metal jambs |
| LATCH FRONT | 1 1/8” x 2 1/4” wrought brass or stainless steel |
| HANDING | Non-handed |
| USERS | Holds up to 200 codes. Master, Management, Supervisor & basic user. 150 event schedule, real-time clock & 1000 event audit trail. |
| FINISHES | US26D satin chrome |
| POWER | 5 AA alkaline batteries are now rated at 200,000 cycles, supplied. Audible low battery alert, visual and audible entry indicators, unique Flex Drive® motor |
| DOOR PREP | Standard ANSI 115 Series Prep, modified by adding additional through-bolt holes |
| COMPLIANCES | Grade 1, heavy-duty cylindrical lockset, UL listed and FCC certified. ADA compliant lever sets |
Return Policy: We accept returns on unopened products up to 30 days after the date of purchase. We do not accept opened/damaged/defective goods. To return affected items please contact Alarm Lock directly at 1-800-645-9440 or visit their support page here
Additional Downloads:
Brochure
Spec Sheet
