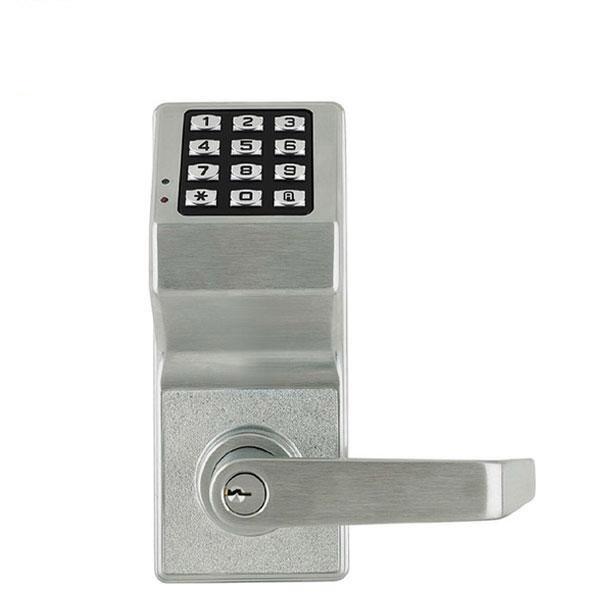

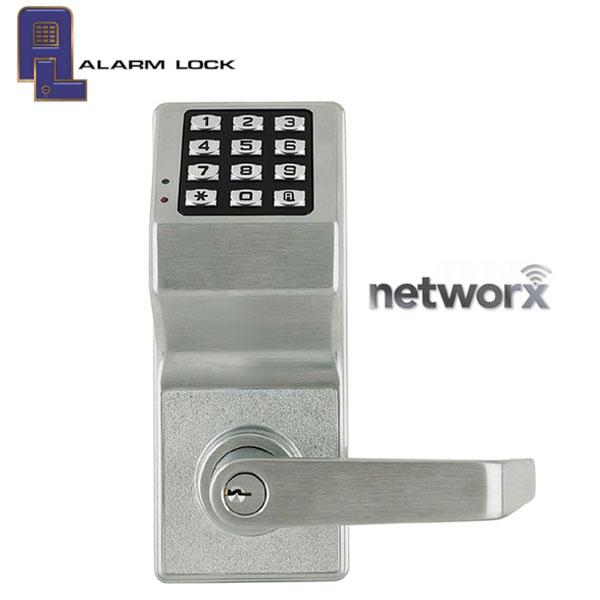

DL6100-US26D Alarm Lock Trilogy Networx Digital Cylindrical Keyless Lock Leverset in Satin Chrome Finish

The Trilogy DL6100 Series Networx Locks eliminate door-to-door programming and audit trail retrieval by communicating wirelessly via Ethernet or 802.11B/G, while providing all original Trilogy standalone lock's functionality. It provides a quick, easy and economical access system with advanced features and functions like various automatic schedules, event logs, and support for 5000 doors and 5000 existing Prox. ID Cards/Badges. However, this lock has no wires to run and no access panels or power supplies to buy or install.

More Information Below:

Call 1-800-878-6604 for Bulk / Dealer Pricing!

LOCK FUNCTION Entrance Networx Digital Lever Lock w/ wireless & ethernet feature
OPERATION The clutch mechanism permits turning the lever without retracting the latch and reduces stress on lock bodies and spindle. Outside lever free turning in the locked position. Entering access code, key bypass, or remote bypass will allow the lever to retract the latch. Inside lever always instant egress
DOOR THICKNESS 1 5/8" to 1 7/8."
BACKSET 2 3/4" Standard
KEYPAD All metal, 12 buttons programmable for multi-level access functions including group or individual user codes, master and management codes, passage and emergency or service code, lockout and remote override capability, and allowable entry time from 5 to 20 seconds. 4 Different keypad tones and keypad may be silenced
USERS Up to 5,000 3-5 digit codes. Master, Managers, Basic users. 500 scheduled events and 35,000 event audit log.
STANDARD KEY OVERRIDE CYLINDERS Solid brass 6 pin tumbler cylinder pinned 5, SC1 keyway, furnished in all locks. Additional tailpieces included HW580 fits Schlage, Corbin/ Russwin CL, Sargent 480 Series, ASSA65-611. Model HW620 fits Ilco and Lori cylinders
LATCHBOLT UL Listed, fire-rated, 3 hours, 1/2” throw, solid brass, deadlocking. Reversible. Adjustable front for flat or beveled doors
STRIKE 1 1/8” x 2 3/4” T strike & 1 1/4” x 4 7/8” ASA strike included. With screws for wood or metal jambs
HANDING Non-handed
FINISHES US26D satin chrome
POWER 4 C-cell batteries supplied. Audible low battery alert, visual and audible entry indicators, unique Flex Drive® motor
DOOR PREP Standard ANSI A115 Series Prep, modified by adding additional through-bolt holes
COMPLIANCES Grade 1, heavy-duty cylindrical lockset, UL listed and FCC certified. ADA compliant lever sets
