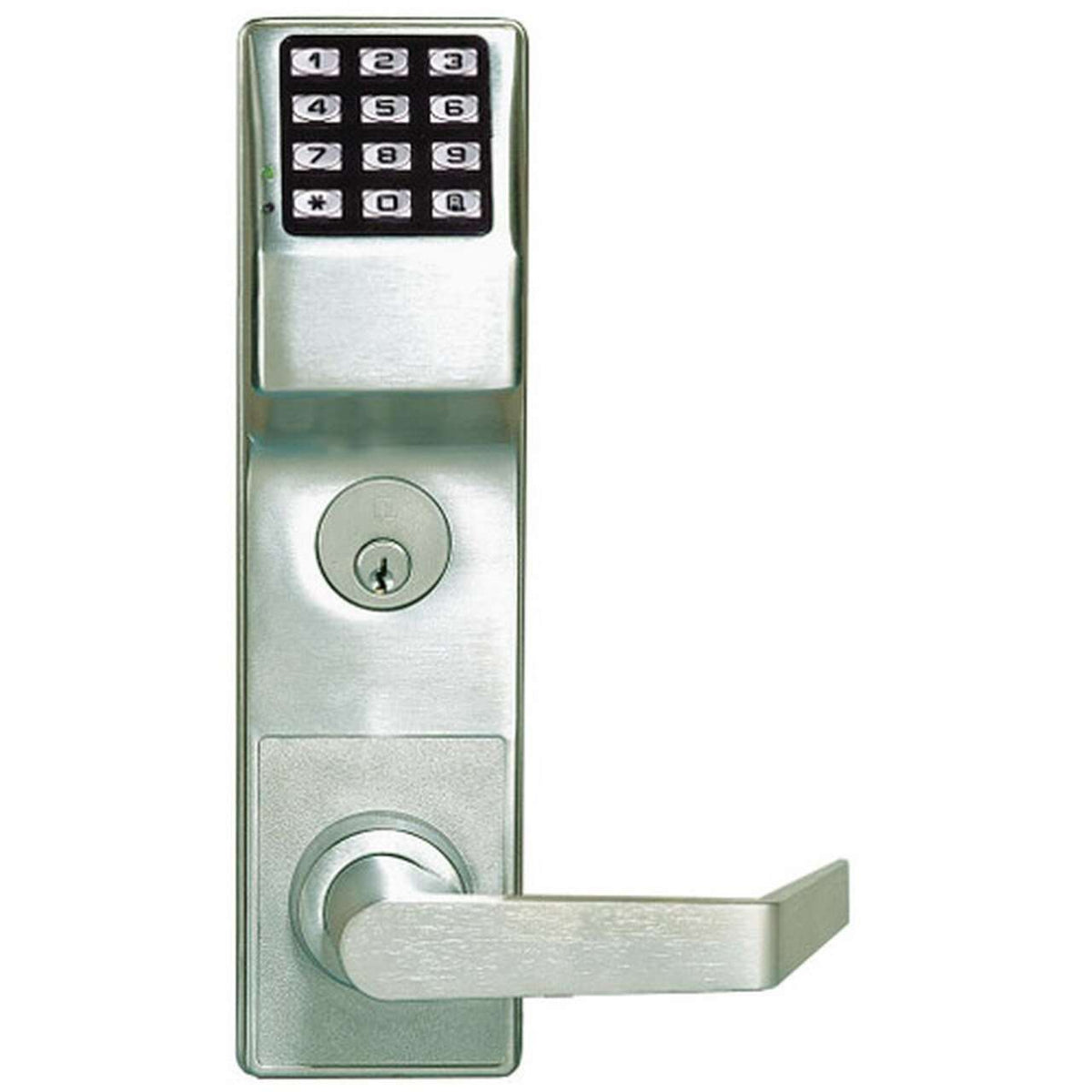

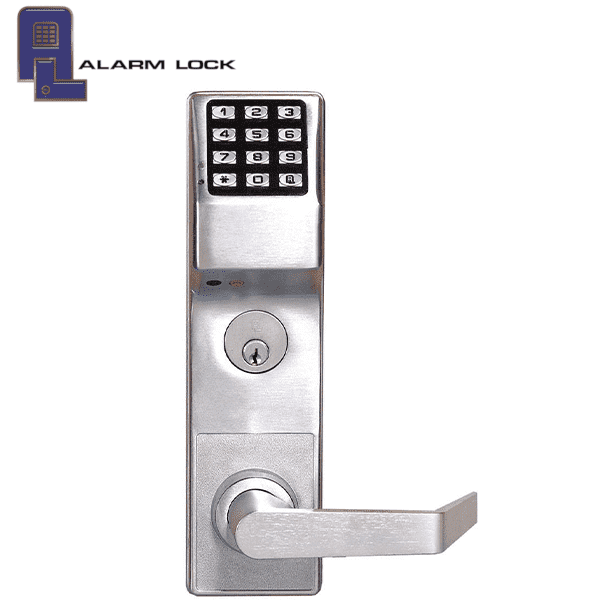

    DL6500CRL-26D Alarm Lock Trilogy Series Networx Digital Mortise Keyless Lock Straight Leverset in Satin Chrome Finish

    The Trilogy DL6500CRL Series Networx Locks eliminate door-to-door programming and audit trail retrieval by communicating wirelessly via Ethernet or 802.11B/G, while providing all original Trilogy standalone lock's functionality. It provides a quick, easy and economical access system with advanced features and functions like various automatic schedules, event logs, and support for up to 5000 users with 3-6 digit numeric PIN codes. However, this lock has no wires to run and no access panels or power supplies to buy or install.

    More Information Below:



    $995.00
    Get it shipped
    Today!
    Order within
    00 Hrs
    00 Mins
    00 Secs
SPECIFICATIONS

LOCK FUNCTION Entrance Networx Digital Classroom Mortise Lever Lock w/ Audit Trail & wireless/ethernet feature
OPERATION The clutch mechanism permits turning the lever without retracting the latch and reduces stress on lock bodies and spindle. Outside lever free turning in the locked position. Entering access code, key bypass, or remote bypass will allow the lever to retract the latch. Inside lever always instant egress
NETWORX Audit trail retrieval and lock management by communicating wirelessly via Ethernet or 802.11B/G
DOOR THICKNESS 1 5/8" to 1 7/8."
BACKSET 2 3/4" Standard
KEYPAD All metal, 12 buttons programmable for multi-level access functions including group or individual user codes, master and management codes, passage and emergency or service code, lockout and remote override capability, and allowable entry time from 5 to 20 seconds. 4 Different keypad tones and keypad may be silenced
USERS Up to 5,000 3-5 digit codes. Master, Managers, Basic users. 500 scheduled events and 35,000 event audit log.
STANDARD KEY OVERRIDE CYLINDERS 1 3/8" (3.5cm) mortise cylinder supplied. Will accept 1 3/8" to 1 1/2" (3.5-3.8cm) mortise cylinder
LATCHBOLT Classroom function features stainless steel latch bolt with 3/4" (1.91cm) projection and deadlocking latch
STRIKE 1 1/4” x 4 7/8” strike included
HANDING Field Reversible
FINISHES US26D satin chrome
POWER 4 C-cell batteries supplied. Audible low battery alert, visual and audible entry indicators, unique Flex Drive® motor
DOOR PREP Standard ANSI A115 mortise prep, modified by adding additional through-bolt holes
WEATHERPROOF
-31 degree to +151 degree F (-35 degree to +66 degree C)
COMPLIANCES BHMA Grade 1, UL listed 10C positive pressure specification. FCC certified and ADA compliant lever sets
