Hardwired Gateway Expander, extends the range of a Version 2 Gateway and helps interface up to 63 Networx locks with PC network with hardwired Ethernet RJ45

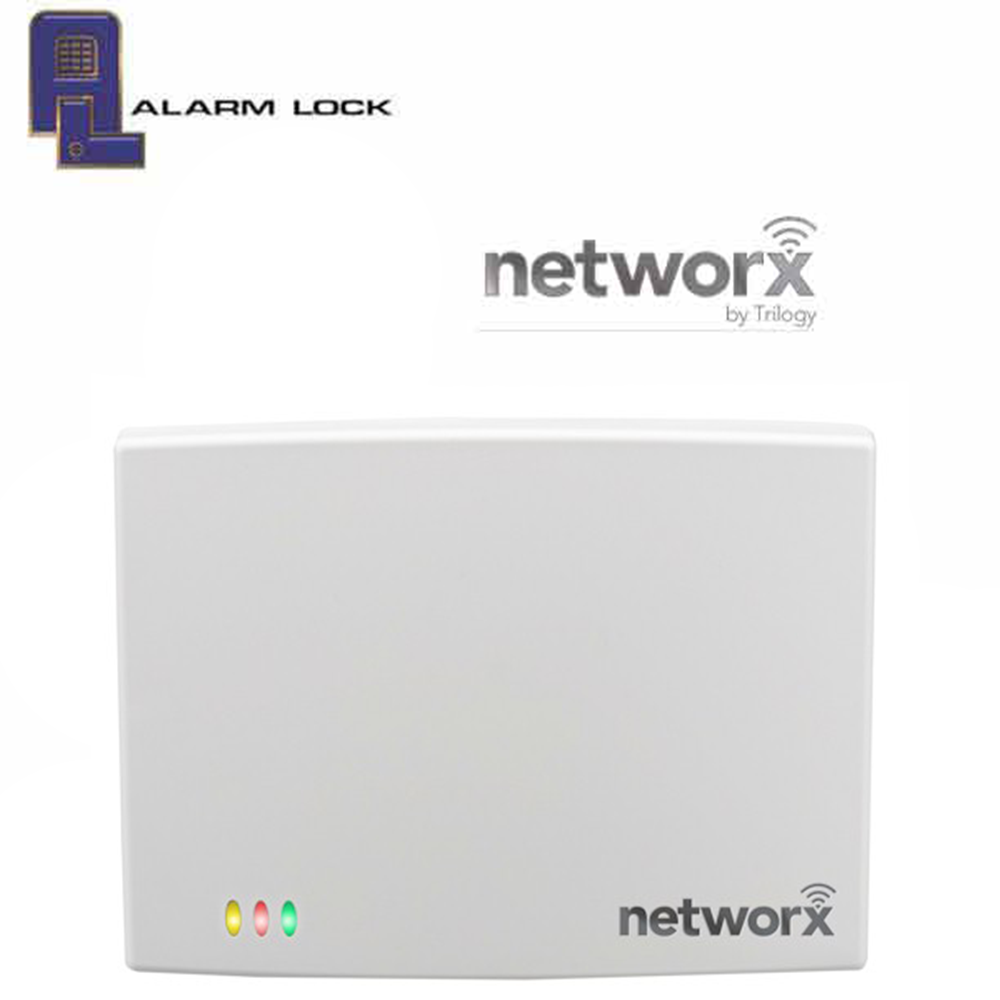

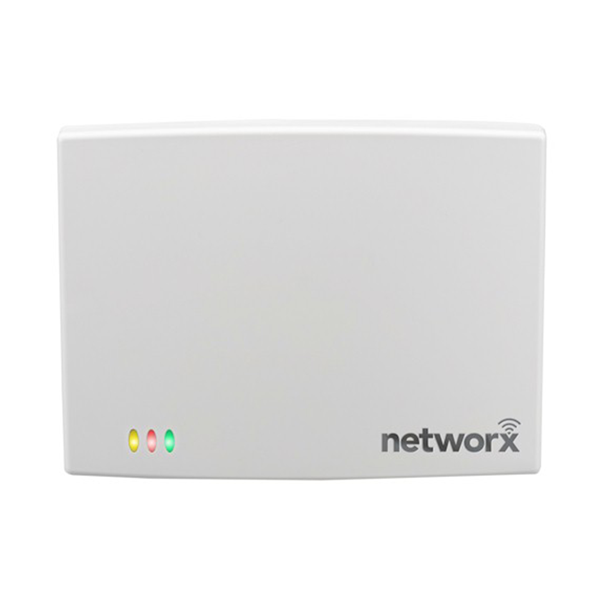

The ALL-IME2-EXP is a Gateway Expander device used within the Trilogy Networx wireless system. The Trilogy Networx Expander extends the coverage area of a Generation 2 Series AL-IME2 Gateway to Trilogy Networx Locks within a PC network, allowing greater distances for the placement of up to a maximum rated capacity of 63 Networx locks per Version 2 Gateway.
Used in place of additional Gateways, each AL-IME2-EXP Expander can extend the Gen.2 Gateway's coverage area by approximately 100 feet. (See range specs, at right.) Typically introduced into the network when a Gateway does not provide sufficient signal strength to a particular area, it is designed to extend coverage and thus facilitate communications with a wireless lock or a group of wireless locks. The AL-IME2-EXP Expander must be used with a Generation 2 AL-IME2 Series Gateway, but can be intermixed in an existing system that includes older œnon-version 2� Gateways. However, at least one Version 2 Gateway must be powered and online before an AL-IME2-EXP Expander will function within the network.
AL-IME2-EXP Expanders are more cost-effective and easier to wire than conventional gateways. They also provide a simplified ˜Plug and Play' setup, where the Networx system automatically identifies all newly powered Expanders and quickly self-determines the best wireless signal pathways. Up to 7 Expanders can be added to support one Generation 2 Series Gateway. Each Gen. 2 Gateway and a maximum of seven (7) Expanders can be addressed as one group. There are a total of 99 addressable groups supported (addressable by two rotary switches)
Note: Version 2 Gateway Expanders CAN be mixed into an existing system that includes older œnon-version 2� gateways as long as one Version 2 Gateway is connected to the system.
| Dimensions | 4.5 (H) x 6.0 (W) x 1.94 (D) in. |
| Environmental Operating Temperature: | -4˚ to 140˚F (-20˚ to 60˚C) |
| Storage Temperature Range | -40° to 185°F (-40° to 85°C) |
| Network Range | Gateway/Expander to Locks: Clear field range 500'. Typical indoor range, Networx 75- 175'; ArchiTech Networx 50-125'. Note: Actual range varies with building construction. Gateway/Expander to Expander: Clear field range 500'. Typical indoor range, 75- 175'. Note: Actual range varies with building construction. |
| Wireless Protocol | 900 MHz GFSK 50 Channels 10 mW power output |
| Power | Input Voltage: 5 - 6 volts AC Requires one(1) 6VAC External Power Supply |
| Current | 650 mA |
| Manufacturer | Alarm Lock |
| Brand | Trilogy Networx |
| Weight | 0.5 lbs |
| Warranty | 2 Year Manufacturer |
