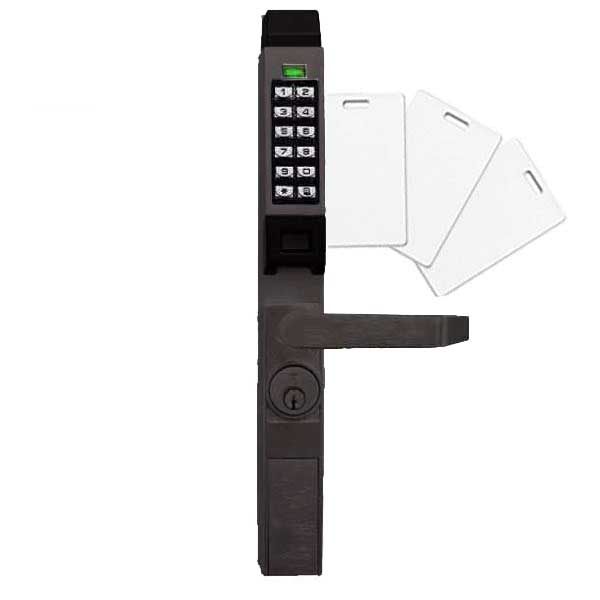

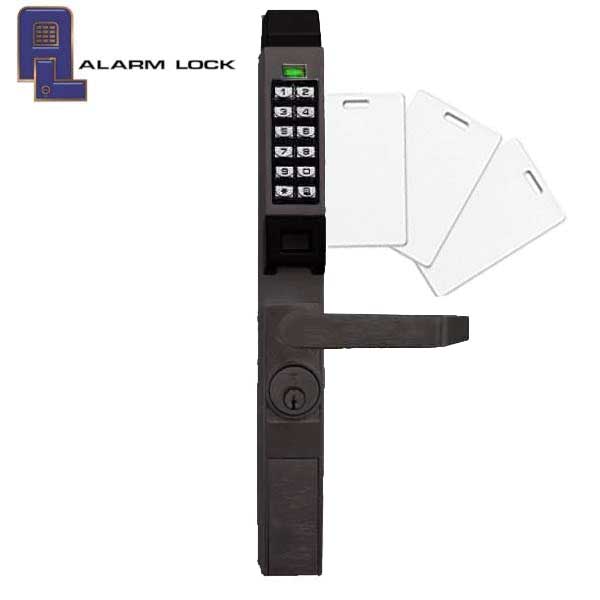

Alarm Lock Trilogy - PDL1300 - Narrow-Stile PROX Keypad Lever Lock - 10B - Oil Rubbed Bronze
Alarm Lock Trilogy - PDL1300 - Narrow-Stile PROX Keypad Lever Lock - 10B - Oil Rubbed Bronze
Couldn't load pickup availability
The Trilogy Narrow Stile Keypad Lever Lock with Audit Trail delivers reliable Trilogy® keyless access control for any narrow-stile compatible door. Designed with a weatherproof, all-metal construction, this lock is built to withstand heavy use and resist vandalism. It offers convenient features such as automatic locking or free passage scheduling, emergency global lockdown in seconds, and exceptional battery life. The DL1300 series is a robust entry lock with advanced programmable options, including audit trail capabilities, providing secure and efficient access management.
- Built-in Proximity Reader: Easy Tap & Add batch prox ID card enrollment mode allows many cards to be quickly added without PC –also– downloadable from PC or prox enroller tool
- Include a mortise cylinder that has 2 keys included
Details
SPECIFICATIONS:
| LOCK FUNCTION | Entrance Narrow-Stile PROX Keypad Lever Lock w/ Audit Trail |
| DOOR THICKNESS | Only Stile thickness 1 ¾" |
| BACKSET | 3 1/32”,1 1/8’ and 1 1/2” |
| HANDING | Non-handed; fully field-reversible |
| POWER | Long-life, battery-operated for 80,000 to 100,000 Cycles respectively, typical on two 3-Volt 123A Lithium batteries, supplied; low battery alert |
| CYLINDER | 6-pin standard mortise cylinder in SC1 Keyway supplied (Supports 1-1/2" 1-3/8”) |
| KEYS | 2 Keys Included |
| CAMS | Cams supplied works with generic Alarm Lock cylinder |
| PROGRAMMABLE | Yes |
| USER CODES | support 2000 users by PIN, HID Prox ID cards, or fobs. PC programming/reporting and features 40,000 events audit trail by the user and 500 events schedule/real-time clock (e.g. lock/unlock by time) |
| PROXIMITY FREQUENCY | 125 kHz |
| WEATHERPROOF | -31˚ to +151˚F (-35˚ to +66˚C) |
| CONSTRUCTION | Zinc Alloy, Vandal Resistant |
| FINISH | 10B Oil Rubbed Bronze |
Return Policy: We accept returns on unopened products up to 30 days after the date of purchase. We do not accept opened/damaged/defective goods. To return affected items please contact Alarm Lock directly at 1-800-645-9440 or visit their support page here
Downloads:
Brochure
Specifications
