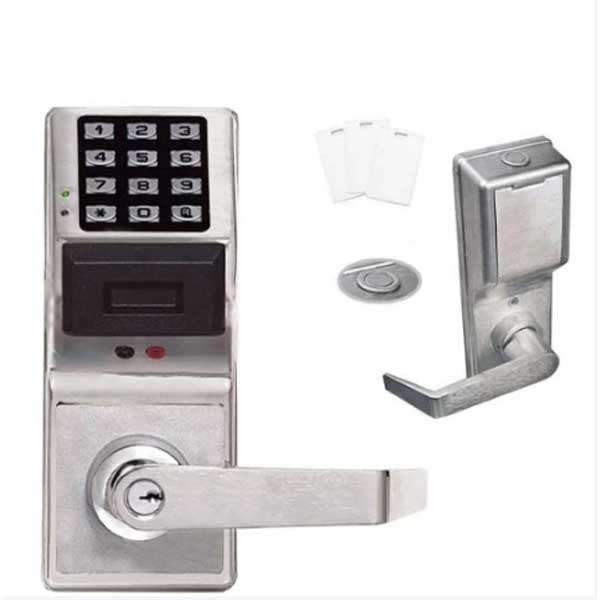

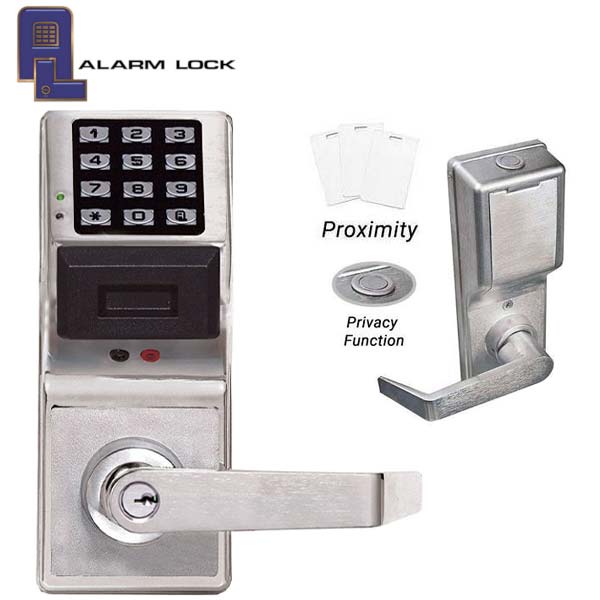

Alarm Lock Trilogy - PDL4100 - Digital PROX Keypad Lever Set w/ Audit Trail & Privacy Feature - 26D - Satin Chrome
- $941.28
-
$1,350.00 - $941.28
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
PDL4100-US26D Alarm Lock Trilogy Series Digital Cylindrical Keyless Lock Leverset with Privacy and Residency features in Satin Chrome Finish
The Trilogy PDL4100 Series is an Alarm Lock's one of the most popular standalone pushbutton cylindrical lock with Grade 1 durability. These durable electronic digital locks are available in indoor and outdoor models. The clutch mechanism permits the turning lever without retracting latch and reduces the stress on lock bodies and spindle. It has an outside lever free turning in the locked position. While entering the access code, key bypass or remote bypass allows the lever to retract the latch.
SPECIFICATIONS
LOCK FUNCTION | Entrance Digital PROX Keypad Lever Lock w/ Audit Trail & Privacy Feature |
OPERATION | The clutch mechanism permits turning the lever without retracting the latch and reduces stress on lock bodies and spindle. Outside lever free turning in the locked position. Entering access code, key bypass, or remote bypass will allow the lever to retract the latch. Inside lever always instant egress |
DOOR THICKNESS | 1 5/8" to 1 7/8." |
BACKSET | 2 3/4" Standard. |
KEYPAD | All metal, 12 buttons programmable for multi-level access functions including group or individual user codes, master and management codes, passage and emergency or service code, lockout and remote override capability, and allowable entry time from 5 to 20 seconds. 4 Different keypad tones and keypad may be silenced |
PROX READER | will read most HID card and keyfob formats |
USERS | Holds up to 2000 PIN Codes with four different authority levels: Master, Management, Supervisor & basic user as well as multiple "one-time" user codes. 500 scheduled events & 40,000 event audit trail. |
PRIVACY FEATURE | Push-button on inside of the door to temporarily lock out keypad codes (programmable option). Occupied and multi-status LED indicator, flashes when privacy session is active. |
RESIDENCY FEATURE | This allows users to temporarily exit and close the door and have the door remain unlocked until it is physically relocked with code. |
STANDARD KEY OVERRIDE CYLINDERS | Solid brass 6 pin tumbler cylinder, SC1 keyway furnished in all locks. Additional tailpieces included HW580 fits Schlage, Corbin/ Russwin CL, Sargent 480 Series, ASSA65-611. Model HW620 fits Ilco and Lori cylinders |
LATCHBOLT | UL Listed, fire-rated, 3 hours, 1/2” throw. Reversible |
STRIKE | 1 1/8” x 2 3/4” T strike & 1 1/4” x 4 7/8” ASA strike included. With screws for wood or metal jambs |
HANDING | Non-handed |
FINISHES | US26D satin chrome |
POWER | 5AA battery-pack operated(included); approx. 60,000 cycles supplied. Audible low battery alert, visual and audible entry indicators, unique Flex Drive® motor |
WEATHERPROOF | -31˚ to +151˚F (-35˚ to +66˚C) |
DOOR PREP | Standard ANSI A115 Series Prep, modified by adding additional through-bolt holes |
COMPLIANCES | Grade 1, heavy-duty cylindrical lockset, UL listed and FCC certified. ADA compliant lever sets |
Return Policy: We accept returns on unopened products up to 30 days after the date of purchase. We do not accept opened/damaged/defective goods. To return affected items please contact Alarm Lock directly at 1-800-645-9440 or visit their support page here
