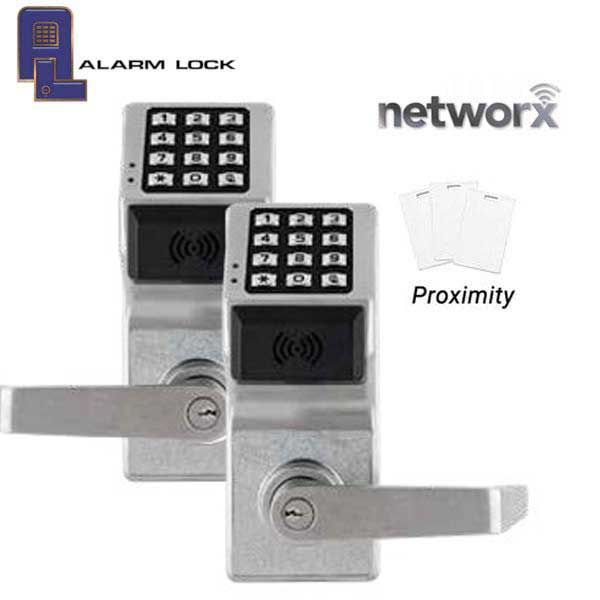

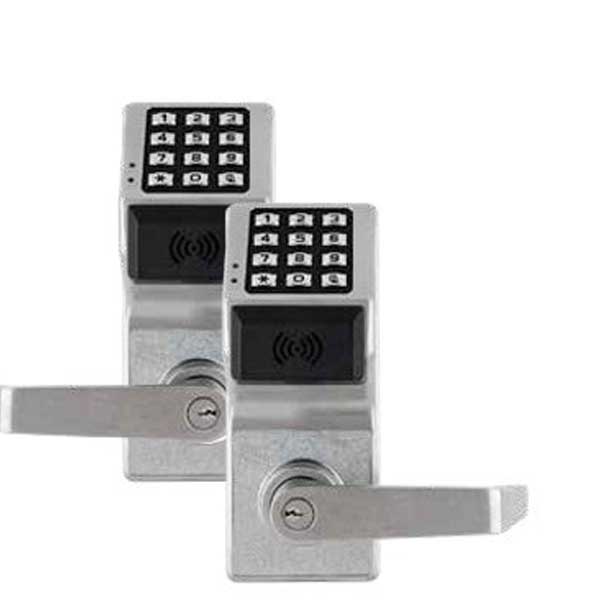

Alarm Lock Trilogy - PDL6300 - Double Sided Digital PROX Lever Lock - Networx - Wireless & Ethernet Feature - 26D - Satin Chrome
Alarm Lock Trilogy - PDL6300 - Double Sided Digital PROX Lever Lock - Networx -  Wireless & Ethernet Feature - 26D - Satin Chrome
Alarm Lock Trilogy - PDL6300 - Double Sided Digital PROX Lever Lock - Networx -  Wireless & Ethernet Feature - 26D - Satin Chrome
Alarm Lock Trilogy - PDL6300 - Double Sided Digital PROX Lever Lock - Networx -  Wireless & Ethernet Feature - 26D - Satin Chrome
Alarm Lock Trilogy - PDL6300 - Double Sided Digital PROX Lever Lock - Networx -  Wireless & Ethernet Feature - 26D - Satin Chrome

Alarm Lock Trilogy - PDL6300 - Double Sided Digital PROX Lever Lock - Networx - Wireless & Ethernet Feature - 26D - Satin Chrome

$1,190.00 $1,549.00
Available: In Stock
Wishlist
  • Product SKU: ALL-PDL6300-26D
  • ALL-PDL6300-26D
    Item number: 8415

    The Trilogy PDL6300 Series Networx Locks eliminate door-to-door programming and audit trail retrieval by communicating wirelessly via Ethernet or 802.11B/G while providing all original Trilogy standalone lock's functionality. It provides a quick, easy and economical access system with advanced features and functions like various automatic schedules, event logs, and support for 5000 doors and 5000 existing Prox. ID Cards/Badges. However, this lock has no wires to run and no access panels or power supplies to buy or install. This lock is double-sided with PIN/Prox access from either side

    • Wireless programming requires DL-Windows software (FREE download at Alarmlock.com website) and Networx Gateway (sold separately)
    $1,190.00
SPECIFICATIONS

LOCK FUNCTION Entrance Double-Sided PROX Networx Digital Lever Lock w/ wireless & ethernet feature
DOUBLE SIDED Bi-directional communication using the highest level of commercially available encryption (128-bit AES PC)
OPERATION The clutch mechanism permits turning the lever without retracting the latch and reduces stress on lock bodies and spindle. Outside lever free turning in the locked position. Entering access code, key bypass, or remote bypass will allow the lever to retract the latch. Inside lever always instant egress
DOOR THICKNESS 1 5/8" to 1 7/8."
BACKSET 2 3/4" Standard
KEYPAD All metal, 12 buttons programmable for multi-level access functions including group or individual user codes, master and management codes, passage and emergency or service code, lockout and remote override capability, and allowable entry time from 5 to 20 seconds. 4 Different keypad tones and keypad may be silenced
PROX FEATURE Compatible with any HID 125kHZ prox cards 26-48bit. Reader on both sides of the door.
USERS Up to 5,000 3-5 digit codes. Master, Managers, Basic users. 500 scheduled events and 35,000 event audit log.
NETWORX
Execute new network-wide capabilities including emergency priority global lockdown or unlock from any Networx lock or the network’s PC. Manage up to 63 locks per AL-IME2 gateway, and 2000 locks system-wide using gateways and wireless expanders. Lock retains all programming and data even in the event of power outage or server offline occurrence
STANDARD KEY OVERRIDE CYLINDERS Solid brass 6 pin tumbler cylinder pinned 5, SC1 keyway, furnished in all locks. Additional tailpieces included HW580 fits Schlage, Corbin/ Russwin CL, Sargent 480 Series, ASSA65-611. Model HW620 fits Ilco and Lori cylinders
LATCHBOLT UL Listed, fire-rated, 3 hours, 1/2” throw, solid brass, deadlocking. Reversible. Adjustable front for flat or beveled doors
STRIKE 1 1/8” x 2 3/4” T strike & 1 1/4” x 4 7/8” ASA strike included. With screws for wood or metal jambs
HANDING Non-handed, field reversible
FINISHES US26D satin chrome
POWER 4 C-cell batteries supplied. Audible low battery alert, visual and audible entry indicators, unique Flex Drive® motor
DOOR PREP Standard ANSI A115 Series Prep, modified by adding additional through-bolt holes
COMPLIANCES Grade 1, heavy-duty cylindrical lockset, UL listed and FCC certified. ADA compliant lever sets


Return Policy: We accept returns on unopened products up to 30 days after the date of purchase. We do not accept opened/damaged/defective goods. To return affected items please contact Alarm Lock directly at 1-800-645-9440 or visit their support page here
