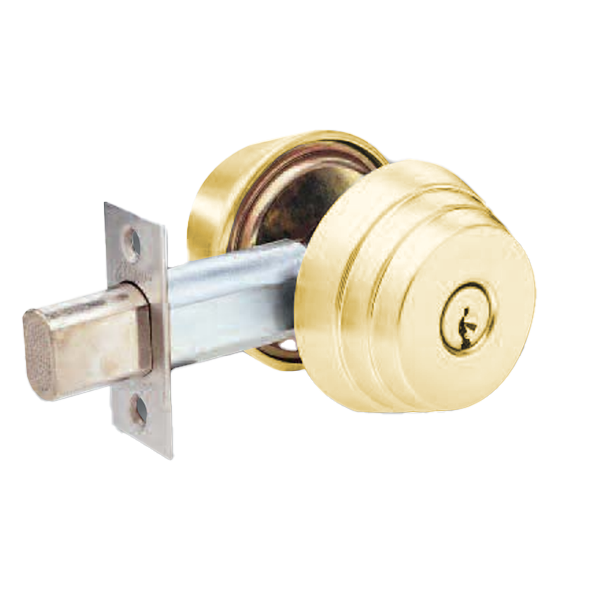

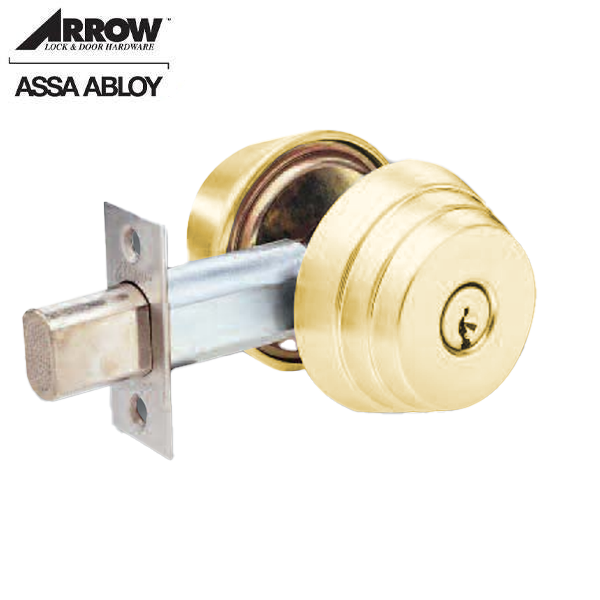

Arrow E Series deadlocks are unsurpassed for value, quality and durability. Arrow's tamper resistant rotating wrench-proof collar, steel deadbolt with hardened steel pin insert and concealed screws are security features that have made the E Series the most specified deadlock in its class.
More Details Below
Housing | Two-piece housing, with free spinning outer ring to prevent wrenching. Concealed mounting screws standard on double cylinder functions. |
Thru-bolting | supplied with two 1/4" (6.35mm) steel thru-bolts. |
Deadbolt | 1" (25.40mm) throw, solid steel deadbolt with hardened, free spinning, steel pin insert. |
Backset | 2-3/4" (69.85mm) |
Deadbolt Fronts | 2-1/4" (57.15mm) x 1-1/8"(28.57mm) standard for 2-3/4" (69.85mm) backset. |
Doors | 1-3/8" (34.925mm) to 1-3/4" (44.45mm) thick standard. |
Handing | All functions are reversible. |
Cylinder, Standard | Schlage CS keyway |
Finish | Bright Brass |
