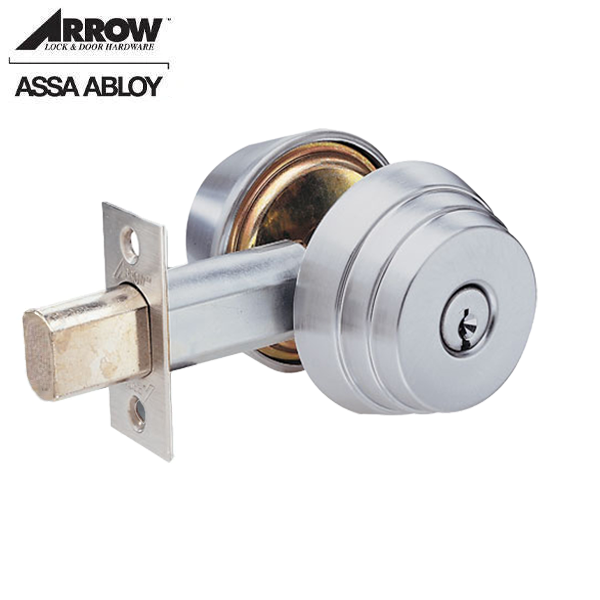

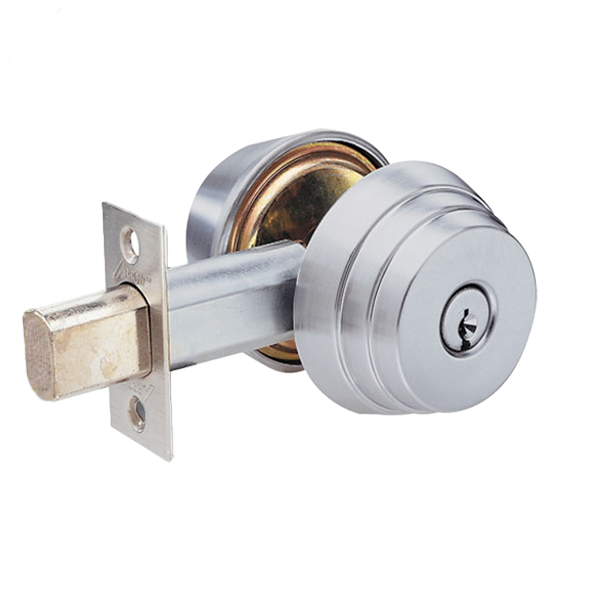

Arrow - E Series Deadbolt - 2 3/8" Backset - Satin Chrome - Single Cylinder - Schlage Keyway - Grade 2
Available to Order
SKU:
ARR-E61-26D
NSID:
66523
- $43.04
-
$53.80 - $43.04
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Arrow E Series deadlocks are unsurpassed for value, quality and durability. Arrow's tamper resistant rotating wrench-proof collar, steel deadbolt with hardened steel pin insert and concealed screws are security features that have made the E Series the most specified deadlock in its class.
More Details Below
| Housing | Two-piece housing, with free spinning outer ring to prevent wrenching. Concealed mounting screws standard on double cylinder functions. |
| Thru-bolting | supplied with two 1/4" (6.35mm) steel thru-bolts. |
| Deadbolt | 1" (25.40mm) throw, solid steel deadbolt with hardened, free spinning, steel pin insert. |
| Backset | 2-3/8" (60.32mm) |
| Deadbolt Fronts | 2-1/4" (57.15 mm) x 1" (25.40 mm) standard for 2-3/8" (60.32 mm) backset |
| Doors | 1-3/8" (34.925mm) to 1-3/4" (44.45mm) thick standard. |
| Strikes | Supplied standard with #395 strike pack (metal and wood). |
| Handing | All functions are reversible. |
| Cylinder, Standard | Arrow A keyway |
| Finish | Satin Chrome |
