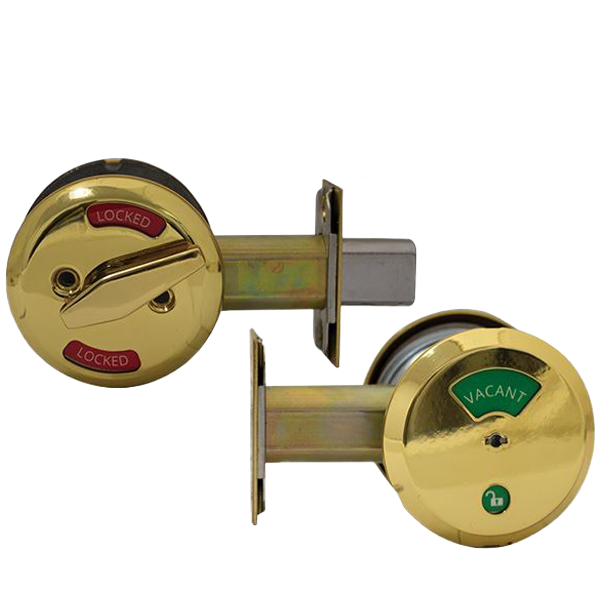

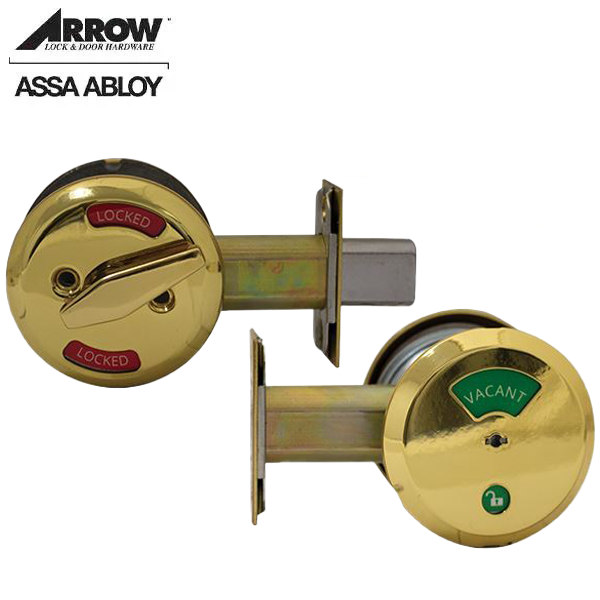

Arrow - E50 - Indicator Deadbolt - Inside Thumb Turn - Non-Keyed - Non-Handed - Grade 2 - Bright Brass
Available to Order
SKU:
ARR-E50-3
NSID:
79246
- $53.59
-
$64.30 - $53.59
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
The Arrow E Series status indicator deadbolt provides the ultimate in privacy assurance with bold visual indicators on both the inside and outside of the door. The Arrow E Series status indicator uses an emergency key override to unlock the door from the outside in case of emergency. This product is ideal for use in public restrooms, dressing rooms, nursing mothers' rooms, and other areas requiring visual communication of use and assured privacy.
Specifications:
| Housing | Solid one-piece construction with a decorative scalp |
| Thru-bolting | Supplied with two 1/4" steel thru-bolts |
| Deadbolt | 1" (25mm) throw, solid steel deadbolt with hardened, free-spinning, steel pin insert |
| Backset | 2-3/4" (70mm), |
| Deadbolt Fronts | 2-1/4" (57mm) x 1-1/8" (29mm) |
| Doors | 1-3/8" (35mm) to 1-3/4" (44mm) thick standard. |
| Strikes | Supplied standard with the #395 strike kit (includes #345 metal frame strike and #346 wood frame strike). |
| Handing | Shipped for right-hand door installation. Converts for left-hand door use with easy-to-follow instructions. No tools required |
| Emergency Key | The deadbolt can be unlocked from the outside with an emergency key. |
| Certification & Compliance | ANSI/BHMA A156.36, Auxiliary Locks, Grade 2 |
