Arrow - SRX82 - Exit Device Trim - Storeroom Function - Sierra Lever with Rose - Satin Chrome 626/US26D Finish - Non-Handed-Includes Cylinder
In Stock
SKU:
ARR-SRX82-26D
NSID:
77089
- $94.06
-
$112.87 - $94.06
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per

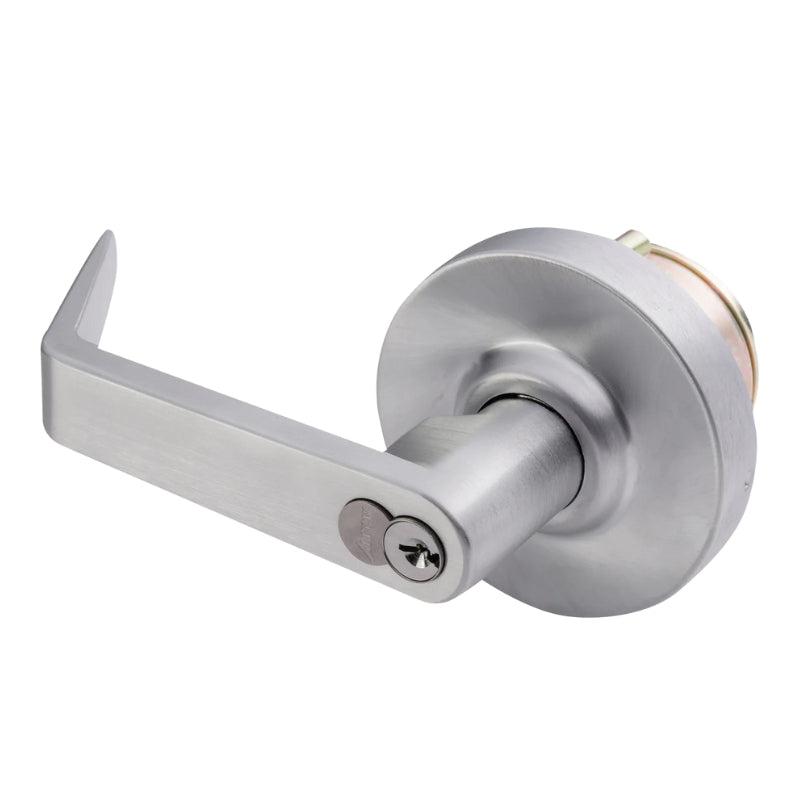

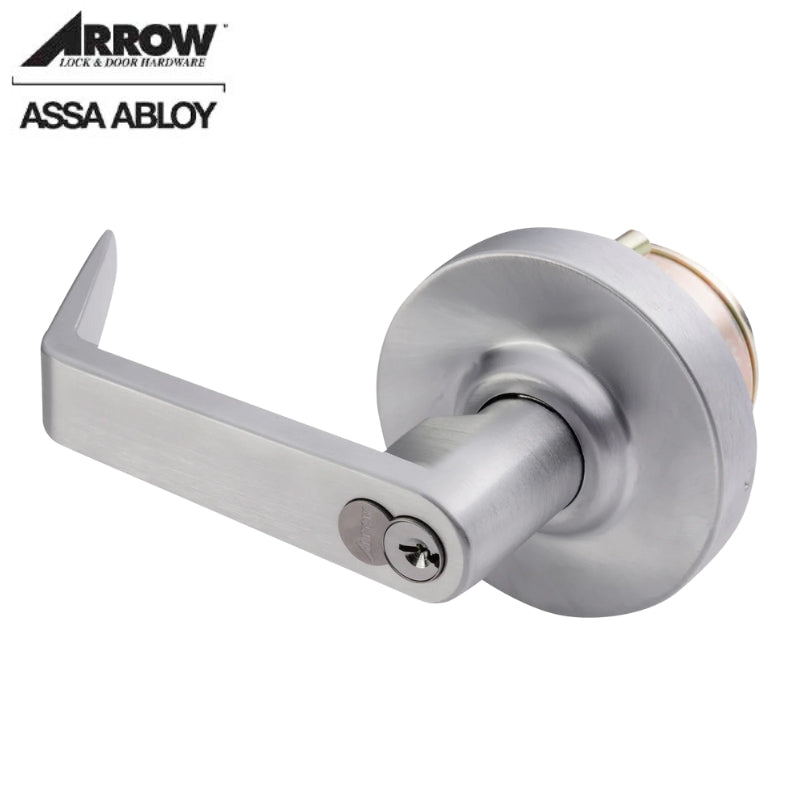

The Arrow SRX82-26D is a storeroom function lever trim designed for use with Arrow's S1150, S1250, ED910, and PEC910 series exit devices. It features a Sierra lever with a rose design and a satin chrome (26D) finish. This non-handed trim is suitable for doors with a thickness of 1-3/4 inches. The storeroom function allows the key to retract the latch, with the key removable only when the trim is locked. The SRX82-26D complies with ANSI A156.3, Grade 1 standards, meets ADA requirements (ANSI A117.1), and is UL listed for up to 3-hour fire-rated openings.
Features:
| Attribute | Value |
|---|---|
| SKU | SRX82 26D |
| Parent Manufacturer | Assa Abloy |
| Manufacturer | Arrow |
| Series | S1150/S1250/ED910 Series |
| Application | For use with Arrow S1150/S1250 & ED910 Exit Devices |
| Certification | ANSI A156.3, Grade 1, ANSI A117.1, UL Listed |
| Commercial/Residential | Commercial |
| Grade | Grade 1 |
| Finish | US26D |
| Finish Description | Satin Chrome |
| Base Material | Brass Bronze |
| Cylinder Type | Less Cylinder |
| Door Handing | Non-handed |
| Door Range (Thickness) | 1-3/4" - 1-3/4" |
| Electronic | No |
| Function | Storeroom |
| Includes Cylinder(s)? | No |
| Keyway | Not Applicable |
| Lever/Knob/Pull | Lever |
| Lever/Knob/Pull Design | SR |
| Maximum Door Thickness (in) | 1-3/4" |
| Minimum Door Thickness (in) | 1-3/4" |
| Projection (in) | 2-9/16" |
| Rose/Escutcheon | Rose |
| Rose/Escutcheon Dimensions (in) | 3-11/32" |
