Details

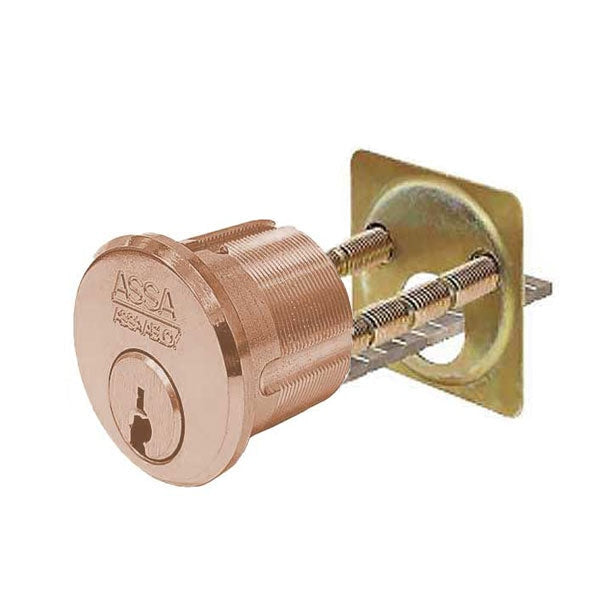

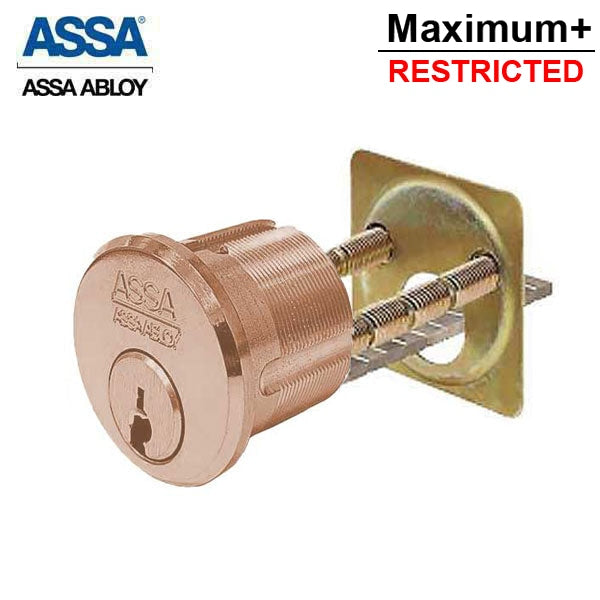

| Maximum+ Restricted Cylinders Benefits: | Cylinder housing and plug are made of high-quality brass • Stainless steel top pins • Bottom pins and master pins are nickel silver • Counter mill in each chamber position to enhance pick resistance • ASSA’s generous keying capabilities allow over 160,000 change keys under a single master key |

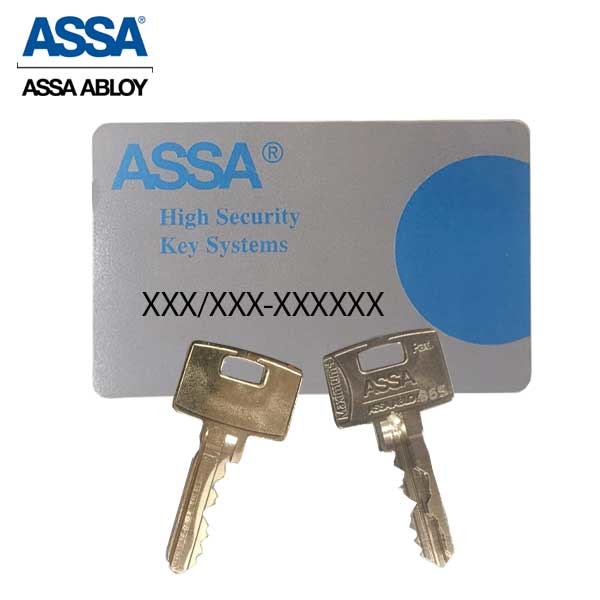

| Maximum+ Keys Benefits: | • Innovative key design protected by the U.S. and international utility patents • Patented key control offers the ultimate protection from unauthorized duplicate keys • Top cuts can be generated on standard, quality code cutting equipment • Special key stamping and custom coining available |
| Head Diameter: | 1.366" |
| Head Thickness: | 0.138" |
| Body Length: | 1.125" |
| Body Diameter | 1.157" |
| Certification: | • ASSA’s patented key systems are legally protected against unauthorized key duplication through rights granted by the utility patent • Maximum+ key listed under U.S. Patent number 8,205,473 |
| Warranty: | ASSA warrants its cylinders against defective workmanship or wears resulting from defects for one year • ASSA warrants that if a key should break under normal usage, ASSA will replace it at no charge |
| Technical Information: | • High-quality nickel silver material • Key combination is read from tip to bow • No. 1 cut is deepest, No. 9 is shallowest |
