Autel - Alignment 14K Scissor Lift
Available to Order
SKU:
AUTEL-AULS14ALOR1
NSID:
79786
- $39,000.00
-
$46,800.00 - $39,000.00
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per

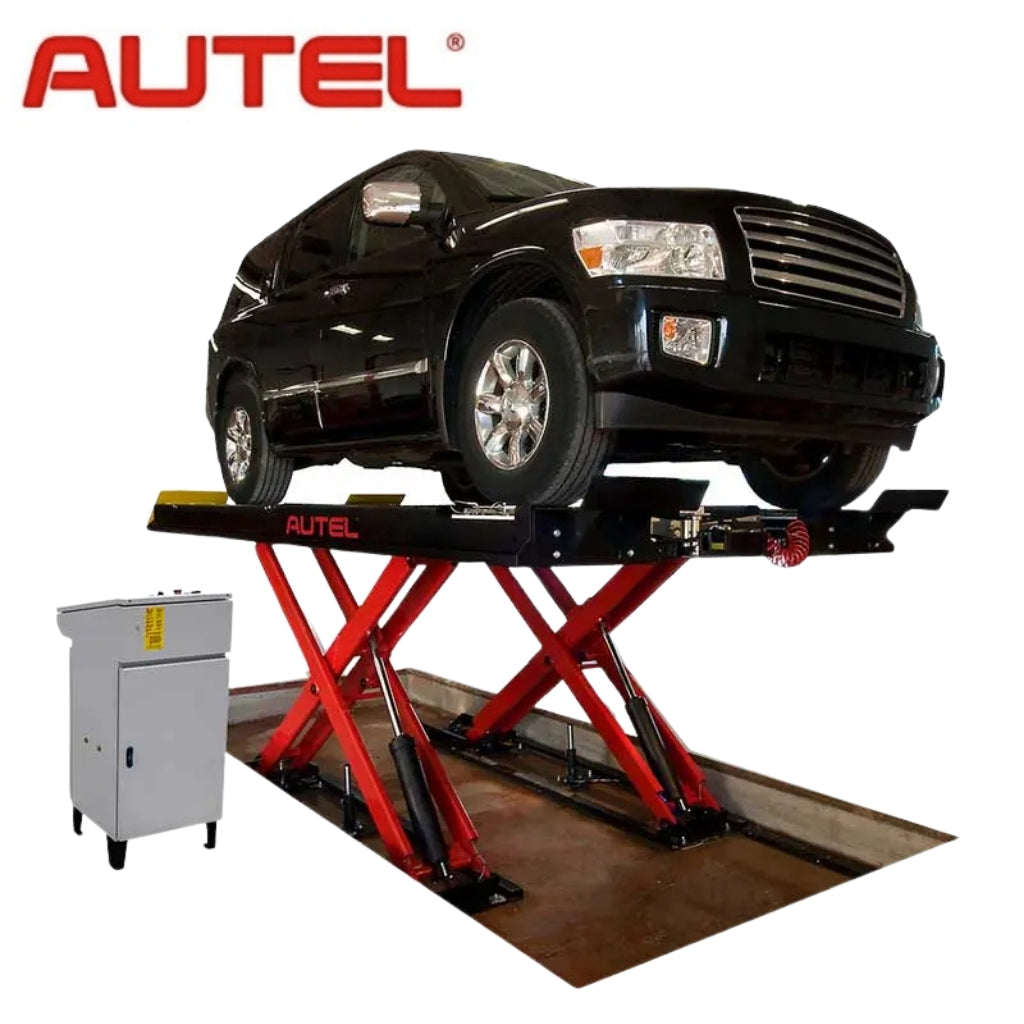

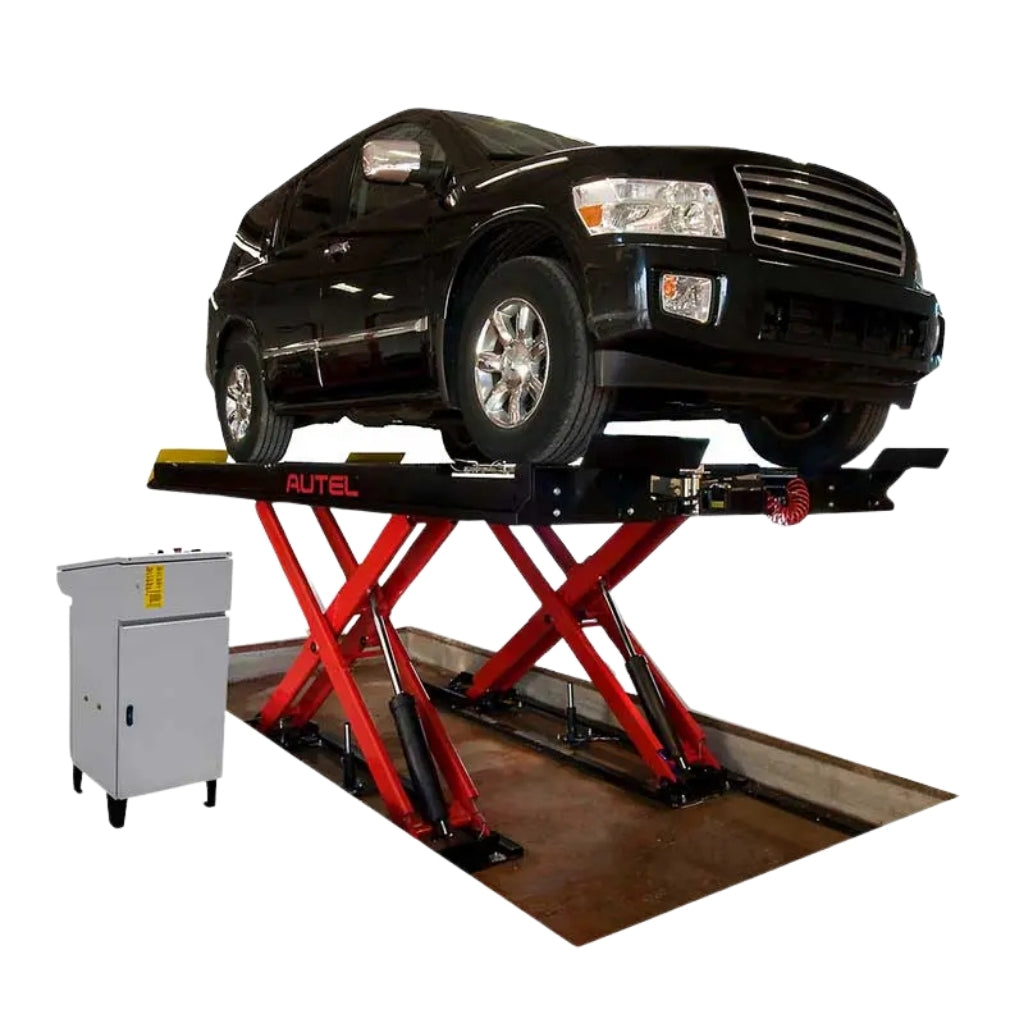

The Autel Alignment 14K Scissor Lift is a heavy-capacity, surface- or flush-mounted hydraulic scissor lift engineered for complete wheel alignment and service of passenger vehicles and light trucks. Built with durability, precision alignment, and user convenience in mind, it includes a wide set of features to support alignment operations safely and efficiently. It is ALI certified and manufactured in North America.
Description
xFeatures:
- 14,000 lbs (≈ 6.4 tonnes) lifting capacity.
- Includes two 7,000 lbs capacity jacking beams for lifting individual axles.
- Runways: Double-wide runways with built-in “Z” rails for structural strength (to reduce sagging/flexing), front and rear-opening runways, flip-down wheel stops.

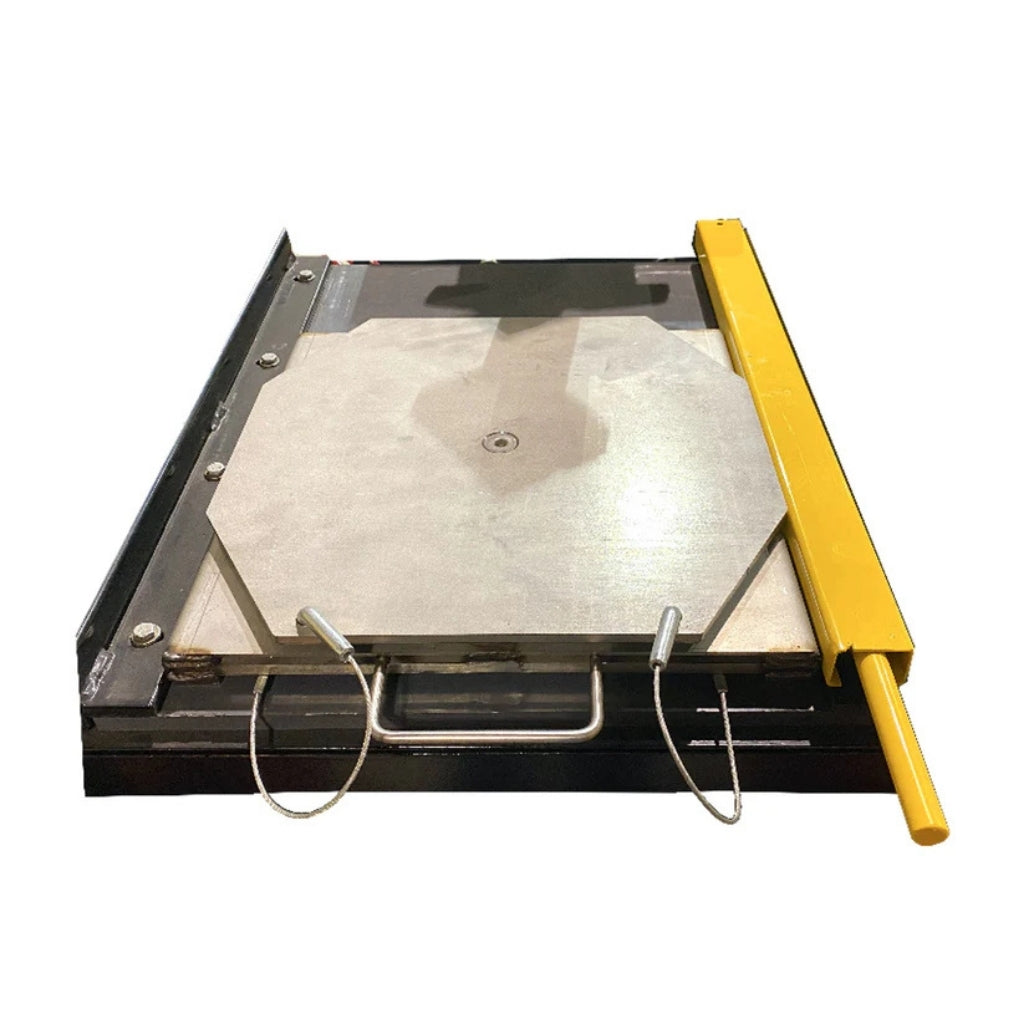

- Stainless steel front radius plates and rear slip plates for long life and paint / finish protection.
- Turn plate pocket protectors to protect vehicle finish.

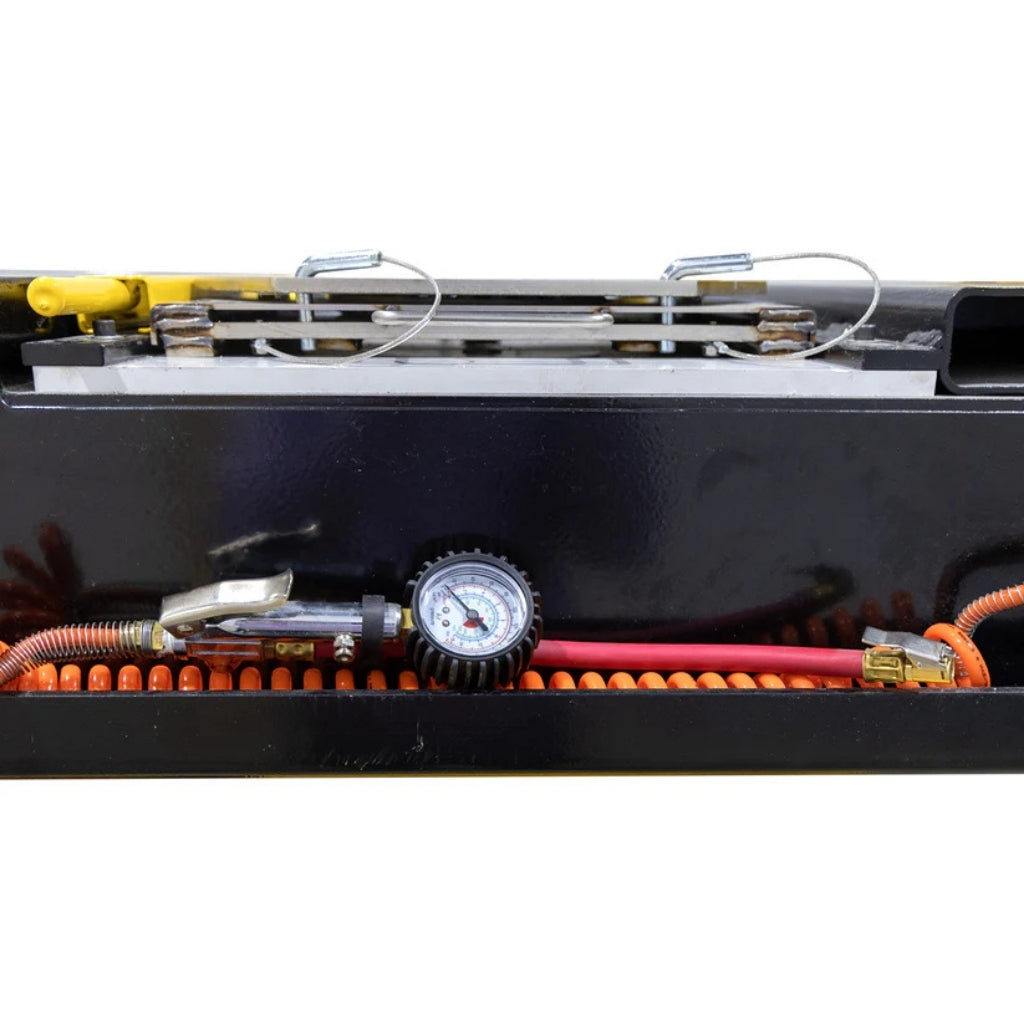

- Air tire inflation kit built in at each wheel.
- Low-angle approach ramps for easier access.

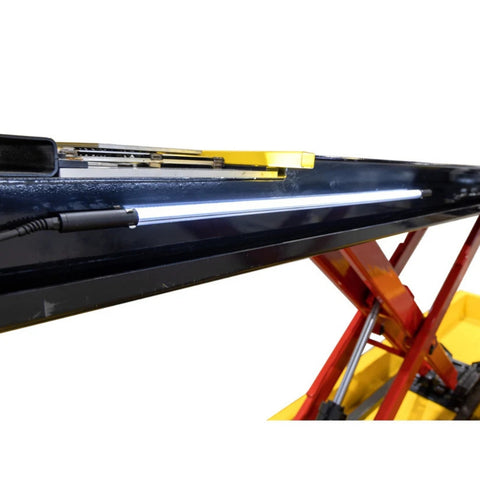

- LED lighting kits, shatterproof with automatic shut-off.

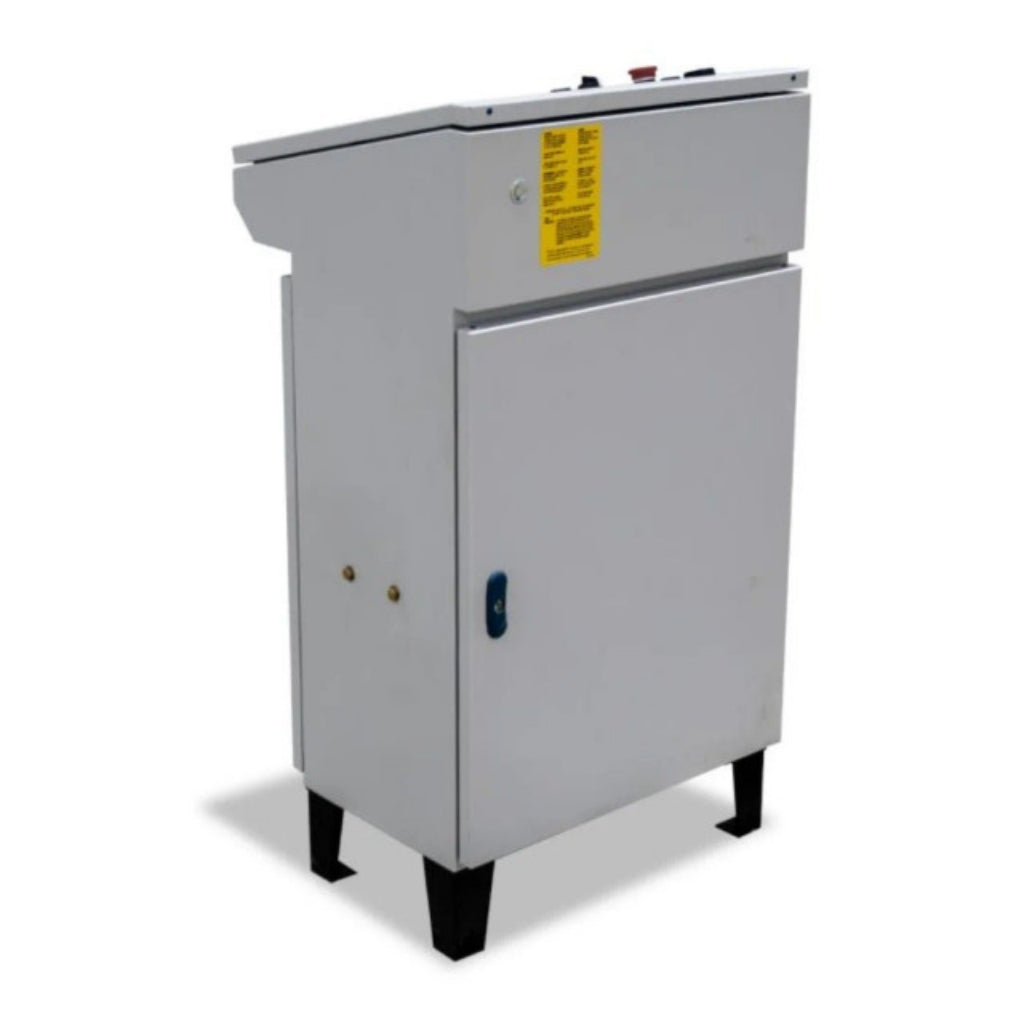

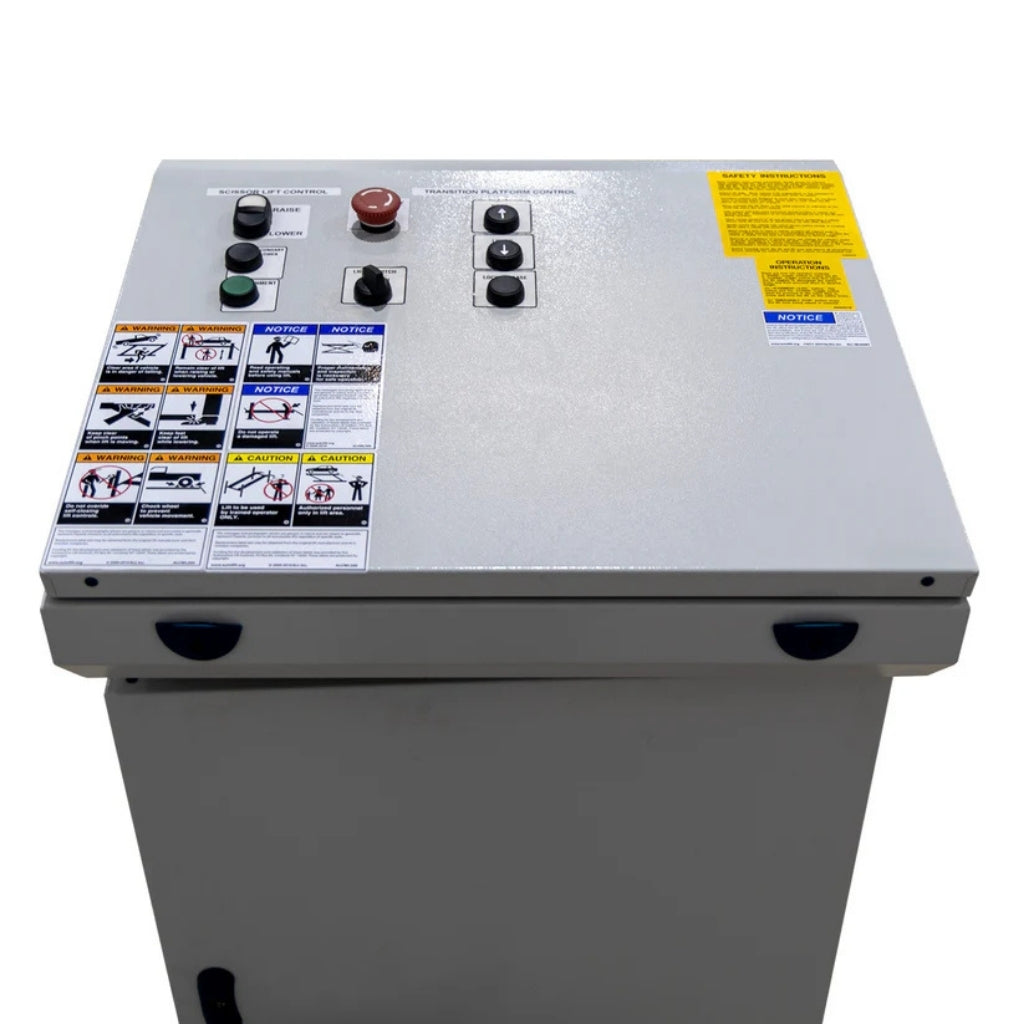

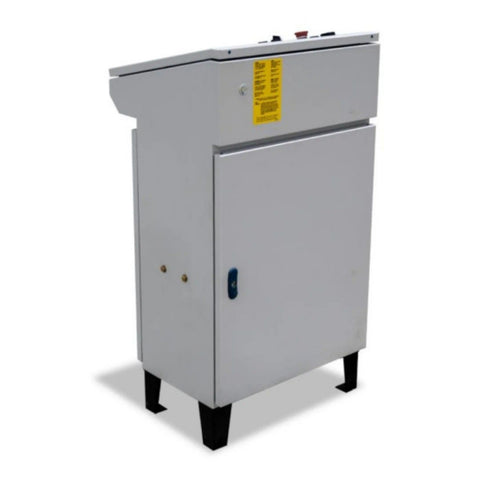

- Enclosed console control power unit for the hydraulic system.
- Protective finishes: Premium double baked powder coating, industrial-grade rust proofing (Krown finish).
| Specification | Value |
|---|---|
| Capacity | 14,000 lbs (≈ 6.4 metric tons) |
| Overall Length | 260-3/4″ (6,623 mm) |
| Deck Length (runway length) | 203″ (5,156 mm) |
| Overall Width | 91-1/2″ (2,324 mm) |
| Width Between Runways | 41″ (1,041 mm) |
| Deck Width (per runway) | 23″ (584 mm) |
| Lowered Height | 10-3/4″ (273 mm) |
| Raised Height | 74″ (1,880 mm) |
| Minimum 4-Wheel Alignment Wheelbase | 84″ (2,235 mm) |
| Maximum 4-Wheel Alignment Wheelbase | 164-1/2″ (4,178 mm) |
| Maximum 2-Wheel Alignment Wheelbase | 178″ (4,521 mm) |
| Maximum Service Wheelbase | 185″ (4,699 mm) |
| Lift Time (Lower-to-Raise) | 58 seconds |
| Power Requirements | 230 V AC, 60 Hz, single phase, 25 A |
| Shipping Weight | 6,230 lbs (≈ 2.8 tonnes) |
| Notable Features | Two 7,000 lbs jacking beams; double-wide runways with Z rails; stainless steel radius plates; turn plate pocket protectors; air tire inflation kit at each wheel; low-angle approach ramps; enclosed hydraulic power unit; LED lighting kits; premium powder coat finish. |
