*Discontinued* Autel - IA1000 Automated Wheel Alignment and ADAS Calibration System with All Systems ADAS & MaxiSYS Ultra S2 Diagnostics Tablet
Out of Stock
SKU:
AUTEL-IA1000AST
NSID:
78813
- $68,300.00
-
$81,960.00 - $68,300.00
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per

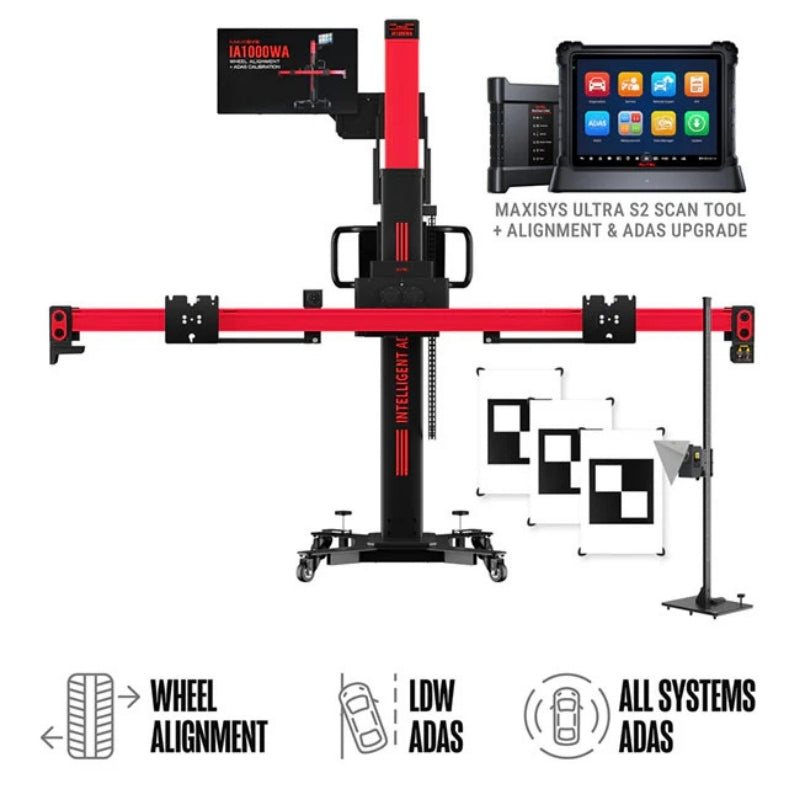

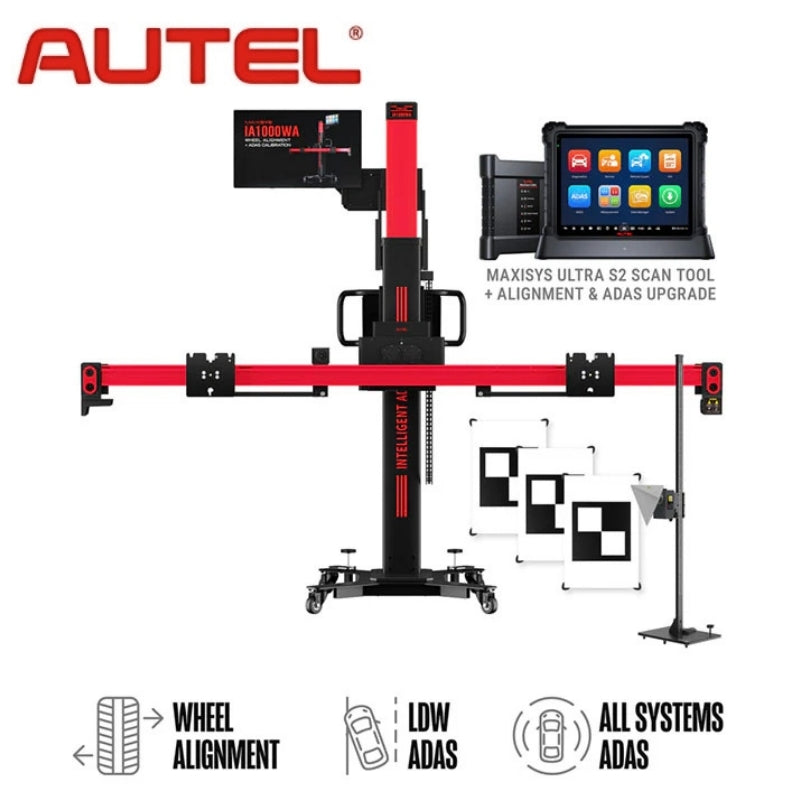

The Autel IA1000AST is a state-of-the-art, all-in-one automated wheel alignment and ADAS calibration system designed to deliver unmatched efficiency, precision, and documentation for modern automotive service centers. It pairs the powerful IA1000 calibration frame with the advanced MaxiSYS Ultra S2 diagnostics tablet, ensuring a streamlined workflow from diagnostics to alignment and calibration.
- $68,300.00
-
$81,960.00 - $68,300.00
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Description
xFeatures:
- Automated 5‑Axis Robotic Calibration Frame - Performs precise four-wheel alignment and ADAS calibration with minimal setup and human intervention, handling pitch, roll, yaw, and front-to-back fine-tuning automatically.
- Laser-Guided Target Placement - Enables accurate placement of various ADAS targets including ACC, Blind Spot Detection (BSD), AVM mats, and LDW targets on unlevel floors, drastically reducing manual adjustments.
- High-Definition Camera System - Equipped with six HD cameras and precision-engineered wheel clamps, it achieves alignment accuracy up to ±0.02° (i.e., 0.02 degrees) for exceptionally reliable results.
- Integrated 24″ Touchscreen Display - Attached to the calibration frame, this screen provides real-time alignment data, illustrated instructions, live readings, and tool guidance all on a single interface.
- MaxiSYS Ultra S2 Diagnostic Tablet - Includes the latest Topology 3.0 diagnostics, MaxiFlash VCMI2 6‑in‑1 communication module, and IA1000 alignment/ADAS software. Supports OTA updates and covers static and dynamic ADAS calibration scenarios.
- Comprehensive Vehicle Coverage - Compatible with U.S., Asian, and European vehicles for both four-wheel alignment and ADAS calibration, adhering to OEM procedures and specifications.
- Target Validation & Reporting - Provides pre- and post-scan reports with image-based validation for insurance and documentation purposes, along with go/no-go checks to enforce accuracy.
Included Components:
- IA1000 Robotic Calibration Frame
- MaxiSYS Ultra S2 Diagnostics Tablet with:
- IA1000 activation card (software credentials)
- MaxiFlash VCMI2 module
- Physical LDW Target Kit (Lane Departure Warning)

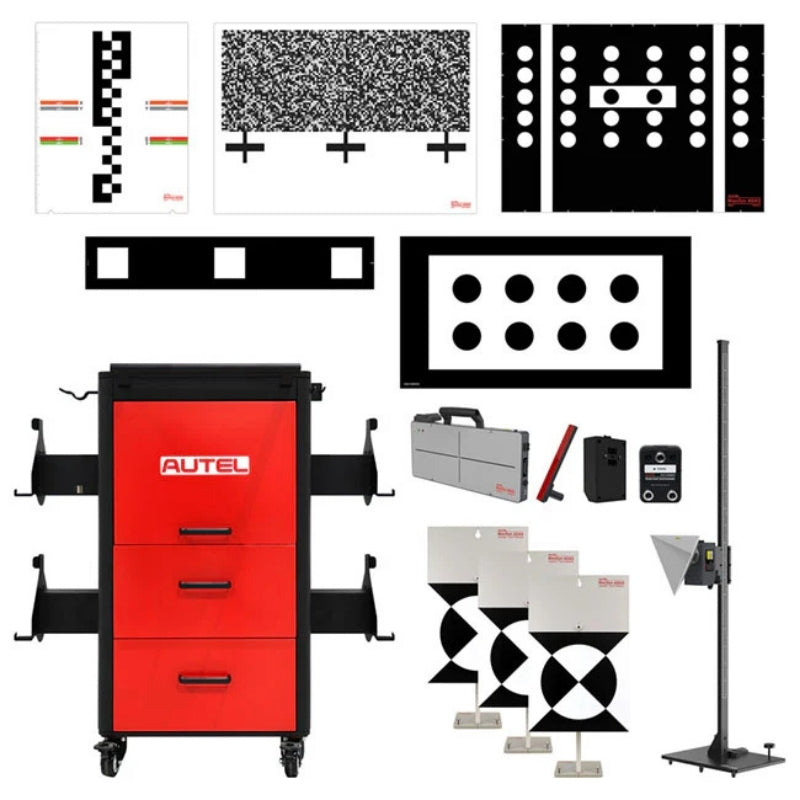

- Accessory Kit:
- Clamps (wheel clamps, steering wheel/brake lock)
- Distance target, tire chocks
- AVM placement lasers
- Camera calibration bar, ride-height and wide-angle targets
- OE-sized corner reflectors, wheel-off adapter kit
- ADAS metal storage cabinet with tire clamp brackets
- Large pattern storage bracket
- 24-inch touchscreen display (frame-mounted)
| Specification | Details |
|---|---|
| Model Number | IA1000AST |
| Power Supply | 100–264 V AC, 50/60 Hz |
| Rated Power | 360 W |
| Calibration Frame Dimensions |
|
| Camera Resolution | 3072 × 2048 pixels |
| Operating Temperature | 14–122 °F |
| Storage Temperature | −4–140 °F |
| Compatible Tablet Series | MaxiSYS Ultra series |
