Autel - IA1000 Automated Wheel Alignment and ADAS Calibration System with All Systems ADAS, MaxiSYS Ultra S2 Diagnostics Tablet & Digital Targets
Available to Order
SKU:
AUTEL-IA1000ASTDT
NSID:
78812
- $71,500.00
-
$85,800.00 - $71,500.00
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
The Autel IA1000ASTDT is a state-of-the-art, all-inclusive ADAS (Advanced Driver‑Assistance Systems) calibration and wheel‑alignment system designed for professional workshops, collision centers, and dealerships. It seamlessly combines fully automated robotics, high-precision diagnostics, and multi-format target capabilities physical and digital in a single integrated solution.
Features:
- Robotic 5‑axis calibration frame, capable of automated pitch, roll, yaw, height, and lateral (width) adjustments, minimizing human intervention and setup time.
- Support for comprehensive ADAS calibrations, including Lane Departure Warning (LDW), Adaptive Cruise Control (ACC), Around View Monitoring (AVM), Blind Spot Detection (BSD), and Night Vision Systems (NVS).
- Includes the MaxiSYS Ultra S2 diagnostic tablet, featuring Topology 3.0 diagnostics and manufacturer-zoned procedures via OEM-linked protocols.
- Digital targeting system with three 27″ high-brightness monitors for LDW; additionally, a package of physical targets is included for flexible workflows.
- Wheel alignment capability with industry-leading accuracy of ± 0.02° using six high-definition tracking cameras and laser-guided positioning.
- Unlevel surface compensation ensures reliable calibration results even on imperfect shop floors.
- OTA software updates maintain current OEM vehicle coverage and diagnostic capabilities.
- Includes an all system accessory kit wheel clamps, steering wheel and brake locks, wheel chocks, distance targets, AVM alignment lasers, ride-height targets, corner reflectors, camera calibration bar, plus a storage cabinet and pattern bracket.
Included Components:

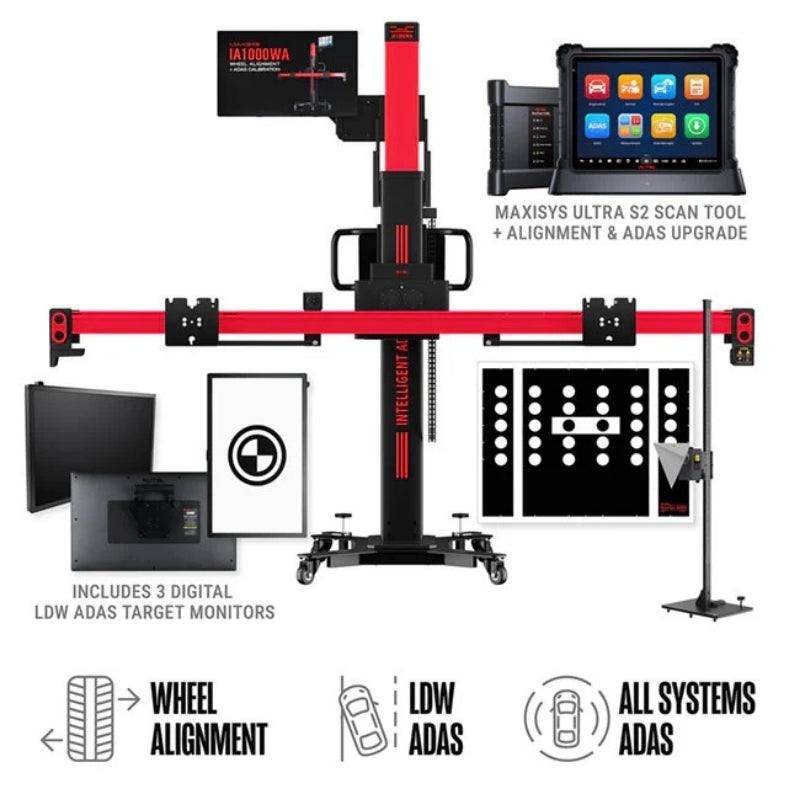

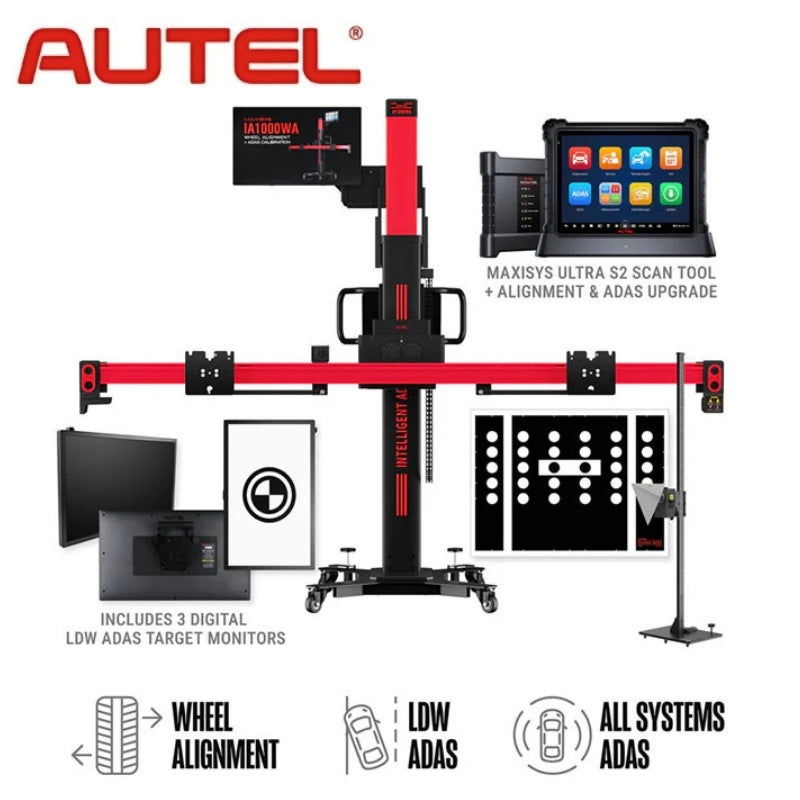

- IA1000 Robotic Calibration Frame, featuring automatic robotic adjustments (pitch, roll, yaw, height, and width)
- MaxiSYS Ultra S2 Advanced Diagnostics Tablet, equipped with Topology 3.0, OEM-linked procedures, and IA1000 alignment & ADAS calibration software
- MaxiFlash VCMI2 6‑in‑1 Communication & Measurement Device (bundled with the Ultra S2 tablet)
- IA1000 Activation Card and a Digital Target Activation Card for unlocking system features
- Physical LDW (Lane Departure Warning) Targets for traditional calibration workflows
- Digital LDW Targets, delivered via three 27‑inch attachable monitors for automated visual target display
- All‑Systems Calibration Equipment, including kits for cameras, radar, LiDAR, Night Vision, and AVM systems
-

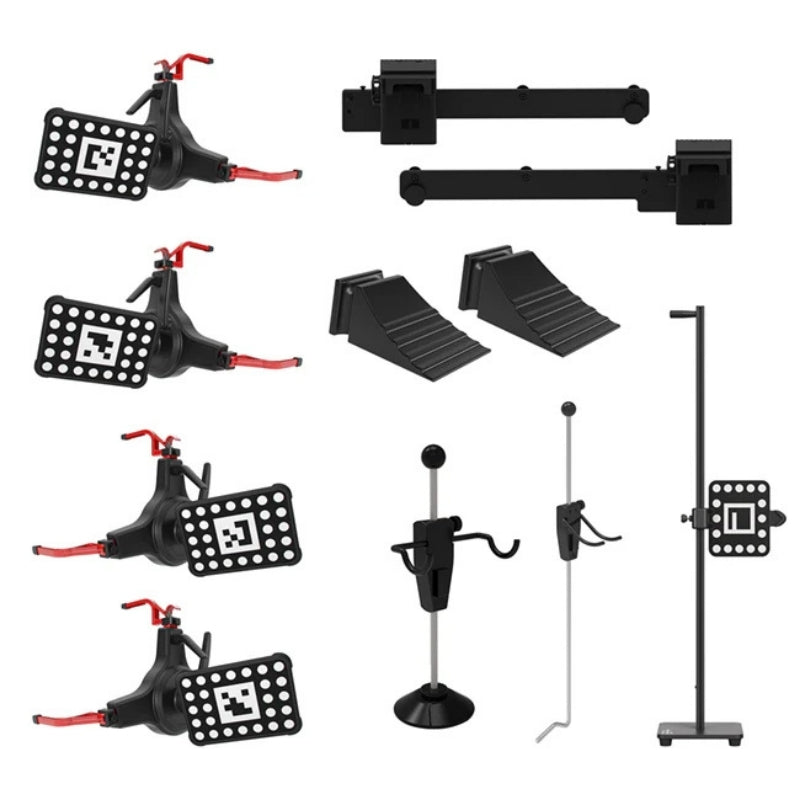

Accessory Kit comprising:
- Four tire clamps
- Steering wheel and brake locks
- Distance target
- Two wheel chocks
- Two AVM-placement lasers
- Ride-height and wide-angle targets
- Hand‑held inclinometer
- OE‑sized corner reflectors
- Camera calibration bar
- Wheel‑off adapter kit
- Metal storage cabinet with tire-clamp brackets
- Large pattern storage bracket
- 24″ Touchscreen Display that attaches to the frame unit, providing integrated alignment instructions, real‑time readings, tool prompts, and adjustment locations
| Specifications | Detail |
|---|---|
| System Type | Automated ADAS calibration & four-wheel alignment system |
| Calibration Frame | Robotic 5-axis (pitch, roll, yaw, height, width) |
| ADAS Supported | LDW, ACC, AVM, BSD, NVS |
| Diagnostic Tool | MaxiSYS Ultra S2 tablet with Topology 3.0 and OEM procedures |
| Target Options | Physical LDW targets + three 27″ monitors with digital LDW targets |
| Alignment Accuracy | ± 0.02° using six HD cameras |
| Environmental Adaptability | Unlevel floor compensation |
| Software Updates | OTA capability for OEM target and diagnostic updates |
| Accessories Included |
|
| Typical Coverage | U.S., Asian, and European vehicles (four-wheel alignment & ADAS) |
