Autel - IA1000 - Automated Wheel Alignment and ADAS System with Digital Targets
Available to Order
SKU:
AUTEL-IA1000DT
NSID:
78818
- $36,000.00
-
$43,200.00 - $36,000.00
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per

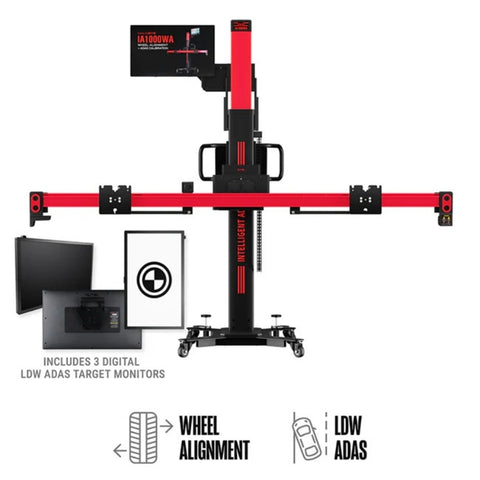

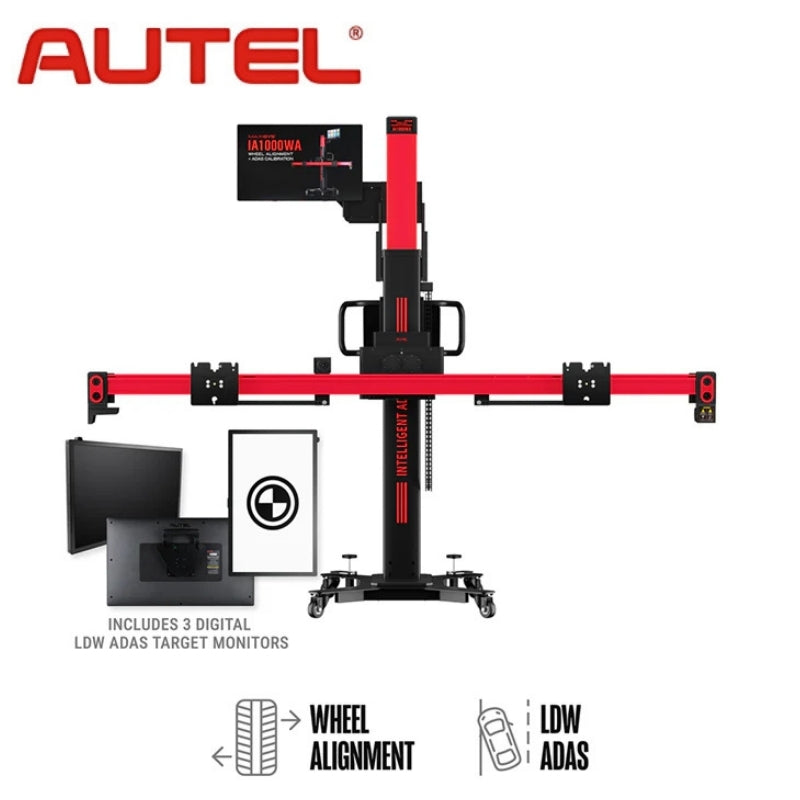

The Autel IA1000 Automated Wheel Alignment and ADAS System with Digital Targets is an advanced, fully automated system designed for both four-wheel alignment and ADAS calibration. It features a robotic calibration frame equipped with six high-definition cameras, offering industry-leading accuracy of ±0.02°. The system includes three 27-inch digital monitors for LDW target projection, a 24-inch touchscreen display, and essential accessories to streamline operations. Compatible with U.S., Asian, and European vehicles, the IA1000DT enhances efficiency and precision in modern automotive service centers.
Features:
- Fully automated 5-axis robotic calibration frame (pitch, roll, yaw, height, width)
- Six high-definition cameras for precise measurements
- Three 27-inch digital monitors for LDW target projection
- 24-inch touchscreen display attached to the frame for intuitive control
- Comprehensive four-wheel alignment and ADAS calibration capabilities
- Laser-guided ACC, blind spot calibrator, and AVM mat placement
- Unlevel floor compensation for versatile shop environments
- Supports OEM-compliant procedures with OTA updates
- Requires MaxiSYS Ultra S2 tablet and IA1000 activation card (sold separately)

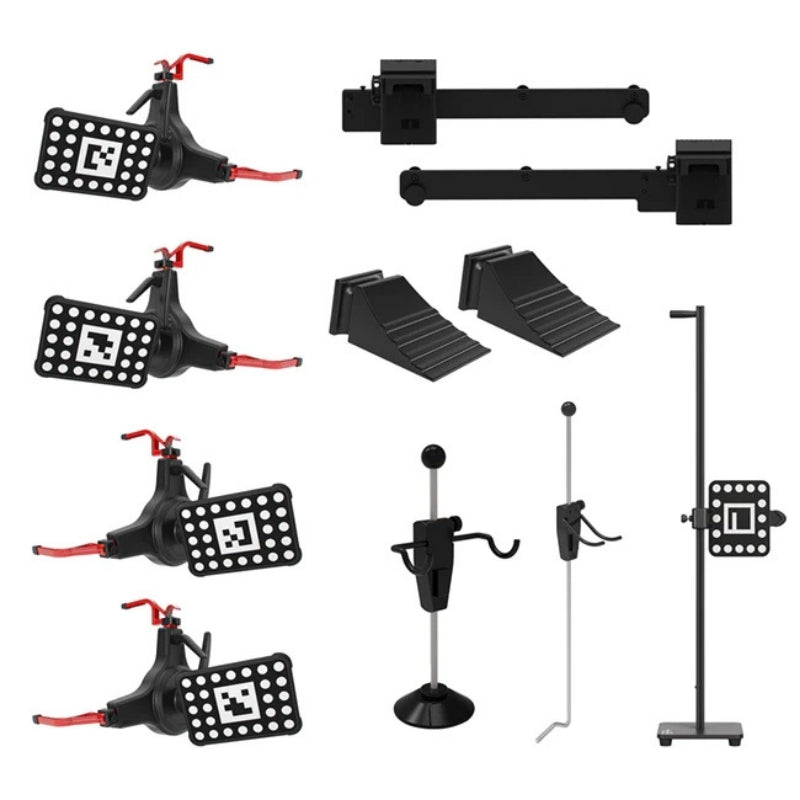

Included Components:
- IA1000 Robotic Calibration Frame
- Three 27-inch Digital Monitors for LDW Targets
- Digital Target Activation Card
- 24-inch Touchscreen Display (mounts to frame)
- Four Tire Clamps
- Steering Wheel Lock
- Brake Pedal Lock
- Distance Target
- Two AVM Placement Lasers
- Two Wheel Chocks
| Specification | Details |
|---|---|
| Model | AUTEL-CSC1000 |
| Power Supply | 100–264 V, 50/60 Hz |
| Rated Power | 360 W |
| Calibration Frame Height | 65.75–109.06 in. |
| Crossbar Length | 106.30 in. (unfolded) |
| Crossbar Height Range | 11.18–98.43 in. |
| Camera Resolution | 3072 × 2048 |
| Operating Temperature | 14–122 °F |
| Storage Temperature | −4–140 °F |
| Compatible Tablet | MaxiSYS Ultra Tablet Series |
