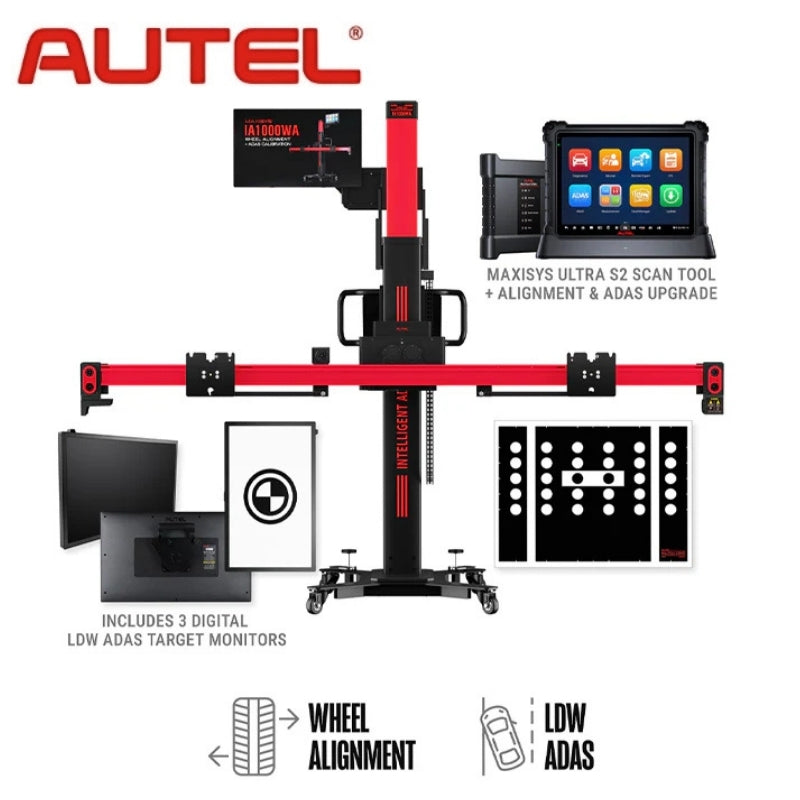

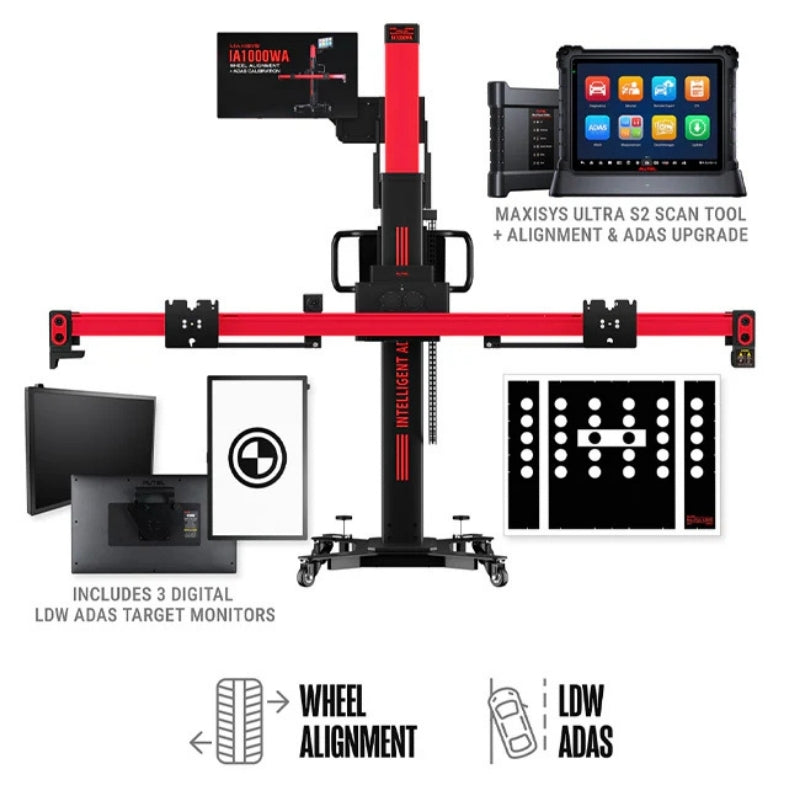

*Discontinued* Autel - IA1000 Automated Wheel Alignment and ADAS System with LDW, MaxiSYS Ultra S2 Diagnostics Tablet, & Digital Targets
Out of Stock
SKU:
AUTEL-IA1000LDWTDT
NSID:
78814
- $51,600.00
-
$61,920.00 - $51,600.00
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
The Autel MaxiSYS IA1000LDWTDT is a premium automated wheel alignment and ADAS (Advanced Driver Assistance Systems) calibration solution tailored for modern service centers. This comprehensive package combines cutting-edge precision automation with versatile target options—supporting both traditional physical LDW (Lane Departure Warning) targets and high-definition digital displays. Powered by the robust MaxiSYS Ultra S2 diagnostics tablet, it enables shops to execute LDW calibrations and forward-facing ADAS tasks with exceptional speed, flexibility, and reliability across U.S., Asian, and European vehicles.
- $51,600.00
-
$61,920.00 - $51,600.00
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Description
xFeatures:
- Fully Automated 5-Axis Calibration Frame - Automatically adjusts pitch, roll, yaw, height, and width for ultra-precise alignment and ADAS calibration.
- Dual Target Support - Compatible with both physical LDW targets and three 27-inch digital target monitors—featuring automatic display control and brightness adjustment.
- Advanced Diagnostics Integration - Comes with the MaxiSYS Ultra S2 tablet running Topology 3.0 for deep diagnostics, alignment, and ADAS calibration workflows.
- Insurance & OEM Compliance Ready Reporting - Generate pre- and post-scan documentation that meets OEM protocols and supports insurance claims.
- Efficient Robotic Target Positioning - Reduces manual setup time with precise robotic alignment—minimizing human error and boosting shop productivity.
- Over‑the‑Air (OTA) Updates - Stay up to date with continuous software, vehicle, and target updates for long-term accuracy and relevance.
Included Components:
- IA1000 Robotic Calibration Frame
- MaxiSYS Ultra S2 Diagnostic Tablet
- IA1000 Activation Card

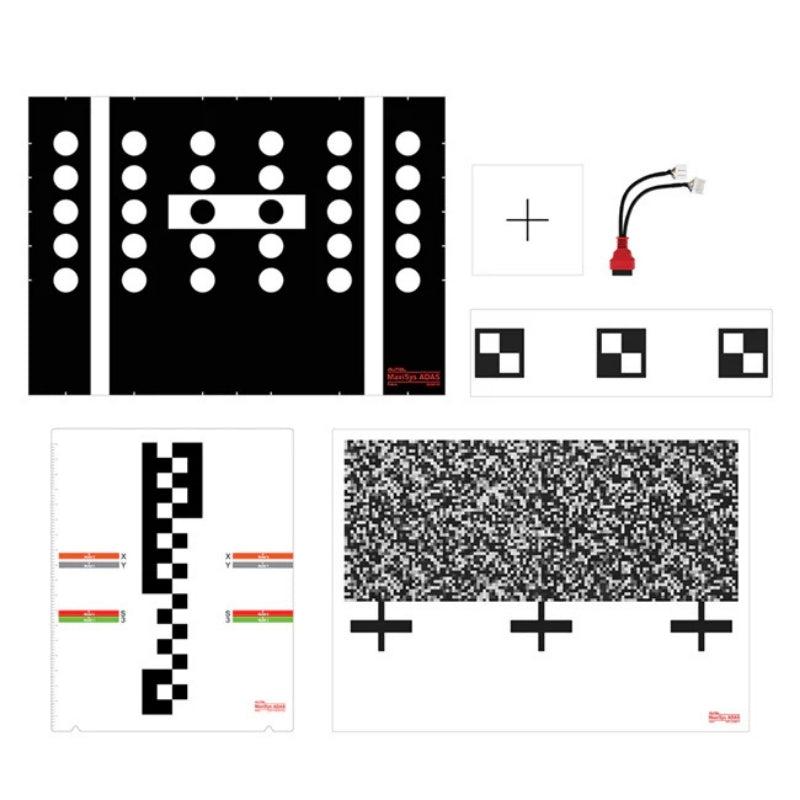

- Physical LDW Targets
- Three 27‑inch Digital Target Monitors
- Digital Target Activation Card

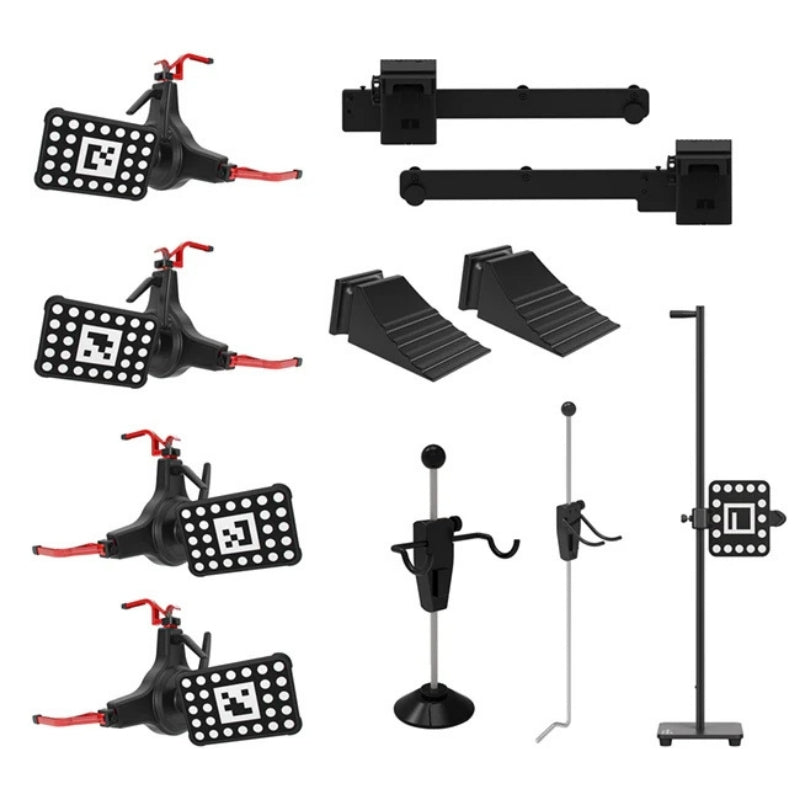

- Accessory Kit (mounting hardware and alignment tools)
| Specification | Detail |
|---|---|
| Model | AUTEL-CSC1000 |
| Power Supply | 100–264 V, 50/60 Hz |
| Rated Power | 360 W |
| Calibration Frame Height | 65.75–109.06 in (approx. 167–277 cm) |
| Crossbar Length (unfolded) | 106.30 in (approx. 270 cm) |
| Crossbar Height Range | 11.18–98.43 in (approx. 28–249 cm) |
| Camera Resolution | 3072 × 2048 |
| Operating Temperature | 14–122 °F (–10 to 50 °C) |
| Storage Temperature | –4–140 °F (–20 to 60 °C) |
| Compatible Tablet Series | MaxiSYS Ultra Series |
