*Discontinued* Autel - IA1000 Automated Wheel Alignment and ADAS System with MaxiSYS Ultra S2 Diagnostics Tablet
Out of Stock
SKU:
AUTEL-IA1000T
NSID:
78817
- $39,449.00
-
$47,338.80 - $39,449.00
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per

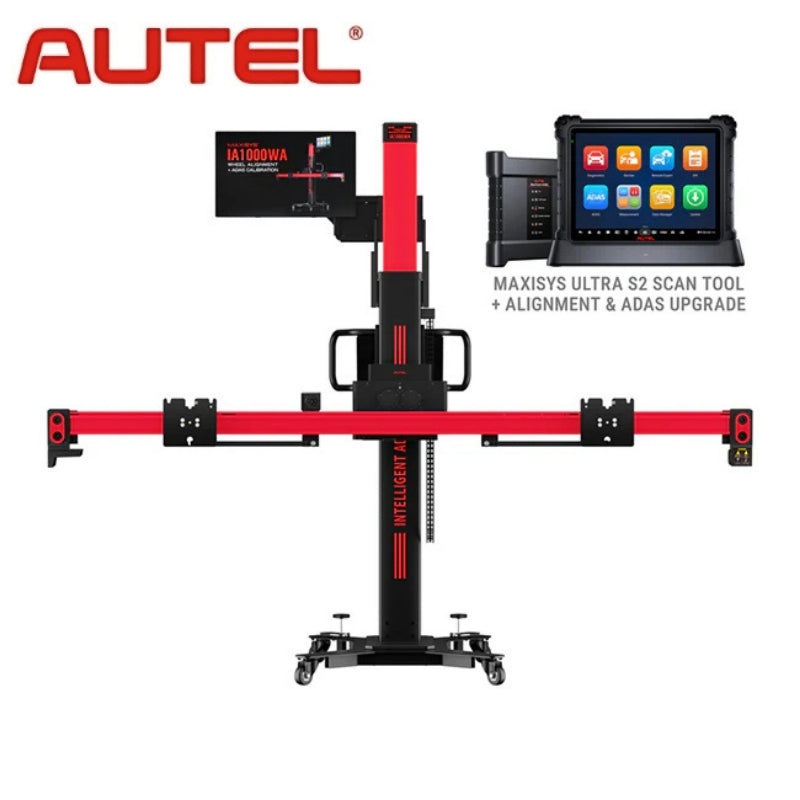

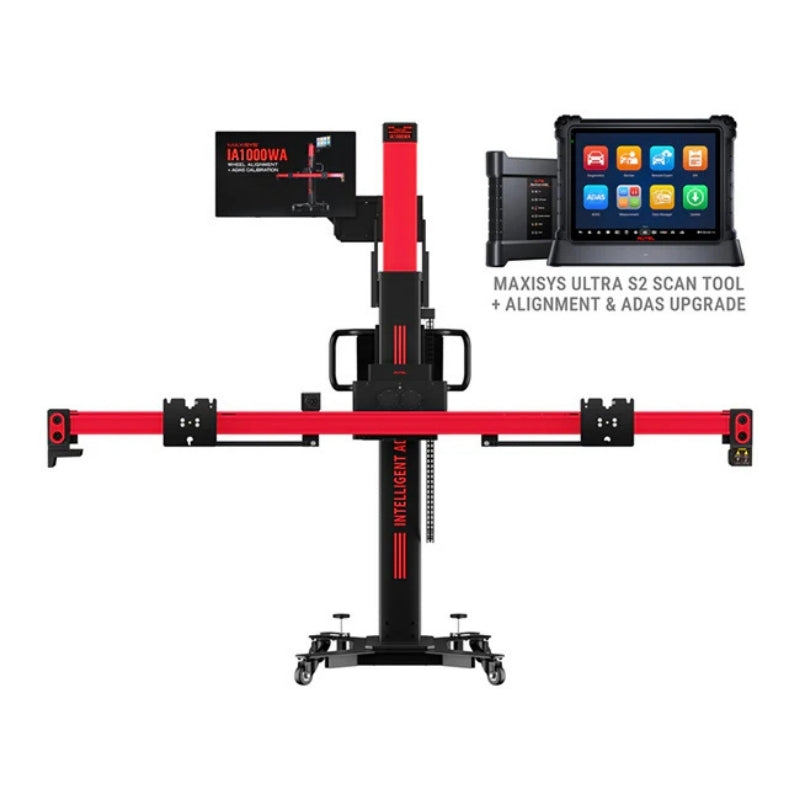

The Autel IA1000T is a cutting-edge, professional-grade ADAS calibration and wheel alignment system. It combines automated precision, diagnostic capability, and workflow efficiency—designed for repair shops, collision centers, dealerships, and calibration specialists looking to future-proof their service offerings. This system includes the IA1000 robotic calibration frame, the MaxiSYS Ultra S2 diagnostic tablet, and an activation card, enabling comprehensive alignment and ADAS functions without digital target displays.
- $39,449.00
-
$47,338.80 - $39,449.00
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Description
xFeatures:
- 5‑axis robotic calibration frame: Executes precise, repeatable alignment and ADAS target placement across multiple axes (front‑to‑back, vertical, horizontal, pitch, roll, and yaw)
- Optical & laser‑guided positioning: Utilizes six high‑definition cameras and laser systems to guide placement of ACC, blind‑spot, AVM mats, and NVS targets—ensuring accuracy and reducing human error
- Unlevel floor compensation: Automatically adjusts for uneven shop floor surfaces or placement on vehicle lifts
- Comprehensive alignment capability: Performs four‑wheel alignment with advanced measurement data (thrust angle, SAI, toe‑out on turns, etc.) for U.S., Asian, and European vehicles, with precision down to 0.02°
- Streamlined workflow: "Place the frame in the green, hit ‘Next’"—and the system automates the rest, drastically reducing setup time
- MaxiSYS Ultra S2 tablet: A high-performance Android-based diagnostic tablet (13.7" touchscreen, 512 GB storage) with built‑in MaxiFlash VCMI2 (6‑in‑1 communication and measurement device) and powerful diagnostic functions including Topology 3.0, active module/network analysis, coding, adaptations, and advanced ADAS calibrations
- OEM‑compliant reporting: Delivers detailed pre‑ and post‑scan documentation for insurance reporting and quality assurance
Included Components:
- IA1000 robotic calibration frame
- MaxiSYS Ultra S2 diagnostic tablet (with VCMI2)
- IA1000 activation card

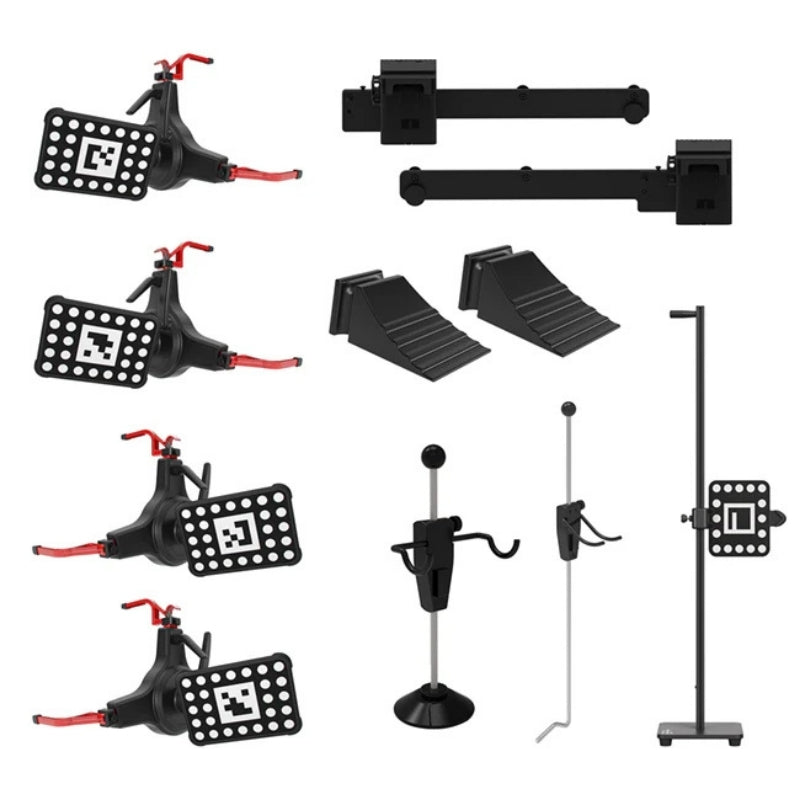

- Accessory kit: Steering wheel lock, Brake lock, Two wheel chocks, Distance target, Two AVM modules/lasers, Four tire clamps.
| Specifications | Detail |
|---|---|
| Model | AUTEL-IA1000T (IA1000 Automated Alignment & ADAS System with MaxiSYS Ultra S2) |
| Power Supply | 100–264 V AC, 50/60 Hz |
| Rated Power | 360 W |
| Camera Resolution | 3072 × 2048 px |
| Operating Temperature | 14–122 °F (−10 to 50 °C) |
| Storage Temperature | −4–140 °F (−20 to 60 °C) |
| Calibration Accuracy | Up to 0.02° |
| Frame Height Range | 65.75–109.06 in (167–277 cm) |
| Crossbar Length (Unfolded) | 106.30 in (270 cm) |
| Crossbar Height Range | 11.18–98.43 in (28.4–250 cm) |
| Included Components | IA1000 robotic calibration frame; MaxiSYS Ultra S2 diagnostic tablet with VCMI2; activation card; steering wheel lock; brake lock; two wheel chocks; distance target; two AVM modules/lasers; four tire clamps |
