Autel - IA1000 Automated Wheel Alignment and ADAS System with MaxiSYS Ultra S2 Diagnostics Tablet & Digital LDW Targets
Available to Order
SKU:
AUTEL-IA1000TDT
NSID:
78816
- $42,499.00
-
$50,998.80 - $42,499.00
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
The Autel IA1000TDT is a premier, fully automated solution combining precise four-wheel alignment with advanced ADAS calibration ideal for high-volume service shops that need to streamline both services across U.S., Asian, and European vehicles. The system incorporates robotic positioning, digital targets, and a powerful diagnostic tablet to significantly reduce setup time and human error while ensuring OEM-standard accuracy.
Features:
- Robotic 5‑Axis Calibration Frame: Automates precise control over pitch, roll, yaw, width, and height adjustments.
- Six High-Definition Cameras & Laser-Guided Positioning: Enables robotic setup for forward-facing cameras, ACC, blind spot calibrators, and AVM mat placement.
- One-Step Digital LDW Target Placement: Comes with three 27″ attachable digital monitors that project LDW targets, eliminating the need for bulky physical targets.
- Unlevel Floor Compensation: Automatically adjusts for uneven shop floors to maintain calibration accuracy.
- Ultra-Precise Alignment: Achieves industry-leading alignment accuracy up to 0.02°, supported by step-by-step instructions and live readings.
- MaxiSYS Ultra S2 Diagnostics Tablet: Includes Topology 3.0 diagnostics software, static and dynamic ADAS calibration capabilities, and the MaxiFlash VCMI2 6‑in‑1 communication device.
- Coverage: Extensive compatibility with U.S., Asian, and European vehicles for both wheel alignment and ADAS calibrations.
Included Components:

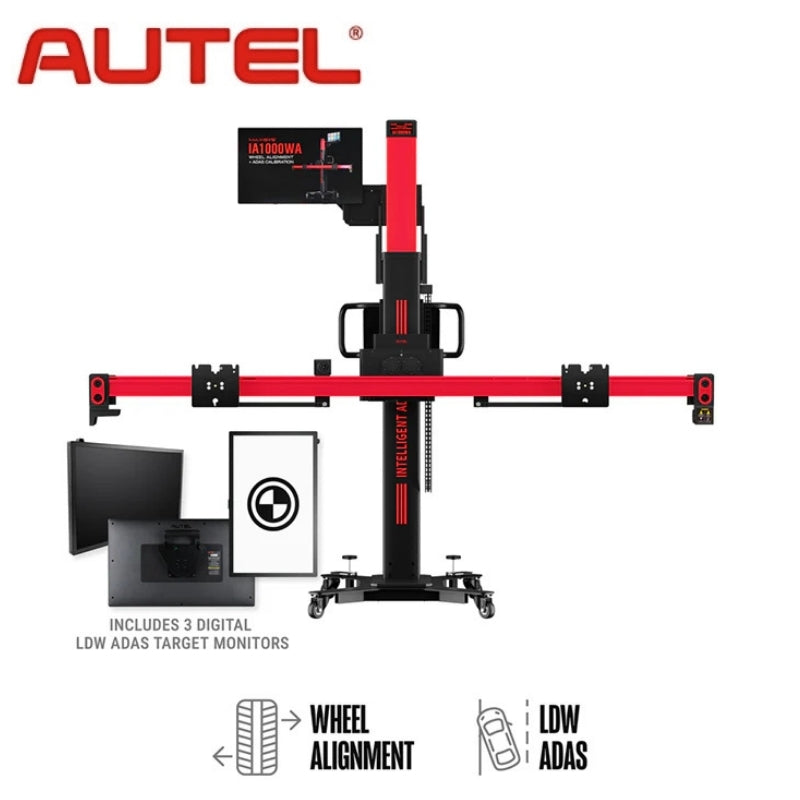

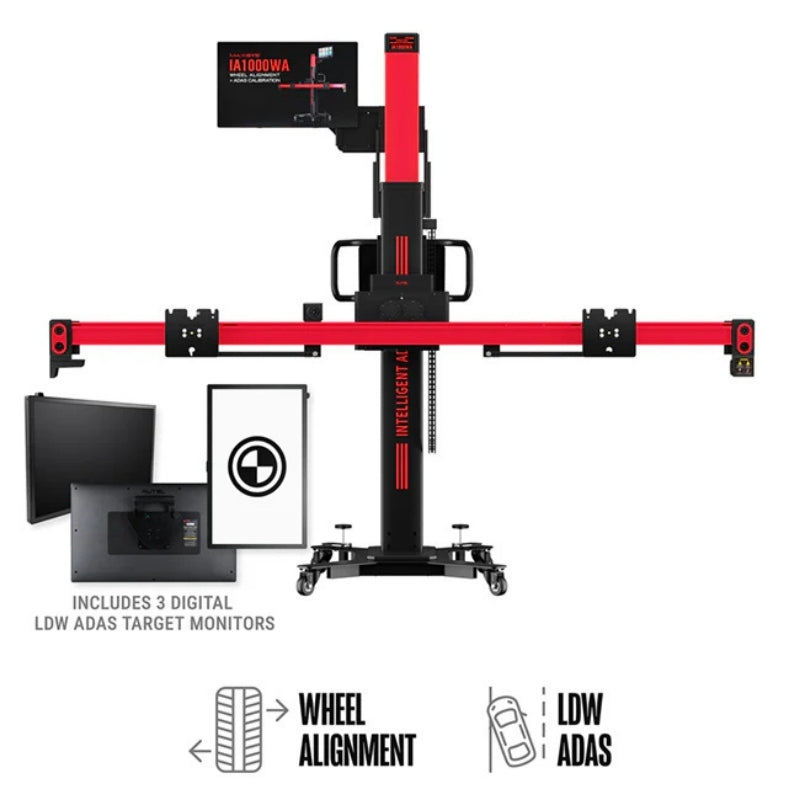

- IA1000 Robotic Calibration Frame (5‑axis motion)
- MaxiSYS Ultra S2 Tablet with preloaded alignment & ADAS software and the MaxiFlash VCMI2 module
- Three 27″ Digital Target Monitors (for LDW projection)
- 24″ Touchscreen Display attached to the frame

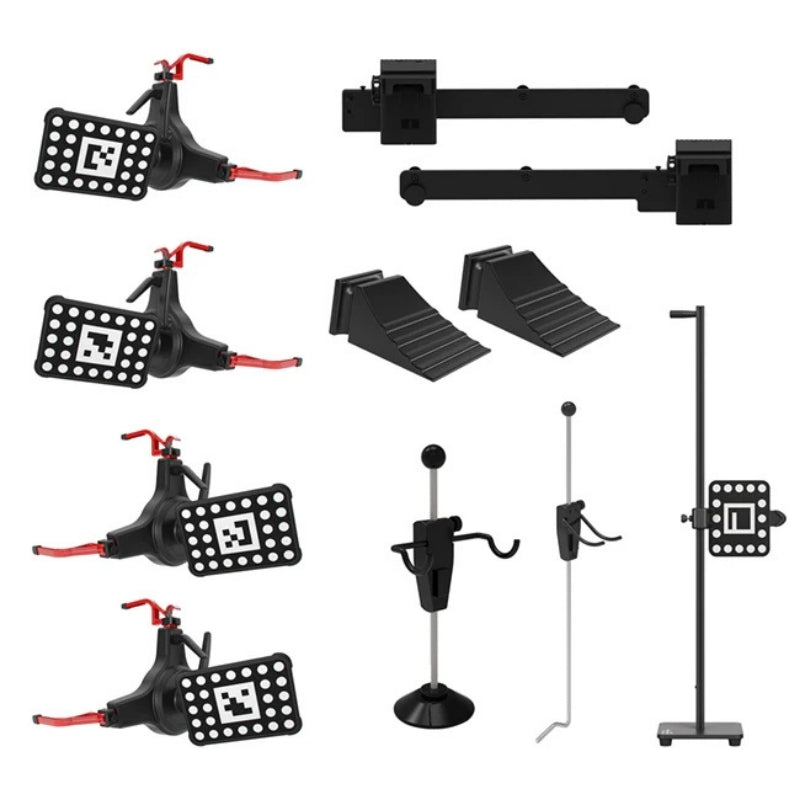

- Accessory Kit: Four tire clamps, Steering wheel and brake lock, Distance target, Two wheel chocks, Two AVM‑placement lasers.
- Activation Cards: IA1000 Activation Card, Digital Target Activation Card (for LDW functionality).
| AUTEL-IA1000TDT — Specifications | |
|---|---|
| System Type | Automated wheel alignment & ADAS calibration system with digital LDW targets |
| Alignment Type | Four-wheel alignment with live readings and guided procedures |
| Alignment Accuracy | Up to 0.02° |
| Calibration Frame | Robotic 5-axis frame (pitch, roll, yaw, horizontal width, vertical height) |
| Floor Compensation | Automatic compensation for unlevel shop floors |
| Camera/Positioning | Six high-definition cameras with laser-guided positioning |
| Digital Targets (LDW) | Three 27″ digital monitors for lane-departure (LDW) target projection |
| Frame Display | 24″ touchscreen mounted on calibration frame |
| Diagnostics Tablet | MaxiSYS Ultra S2 with Topology 3.0; supports static & dynamic ADAS calibrations |
| VCI / Interface | MaxiFlash VCMI2 (6-in-1 communication & measurement interface) |
| Vehicle Coverage | U.S., Asian, and European vehicles (alignment & ADAS) |
| Operating Temperature | 14–122 °F (–10–50 °C) |
| Storage Temperature | –4–140 °F (–20–60 °C) |
| Power Supply | 100–264 V AC, 50/60 Hz, ~360 W |
| Frame Height Range | 65.75–109.06 in (adjustable) |
| Crossbar Length | ≈106.30 in |
| Crossbar Height Range | 11.18–98.43 in |
| Accessories (Key) | 4 tire clamps; steering wheel & brake lock; distance target; 2 wheel chocks; 2 AVM placement lasers |
