Available to Order
SKU: AUTEL-IA700LDW
NSID: 78778

Please Note: This product has a lead time

$23,654.00
$28,384.80
$23,654.00

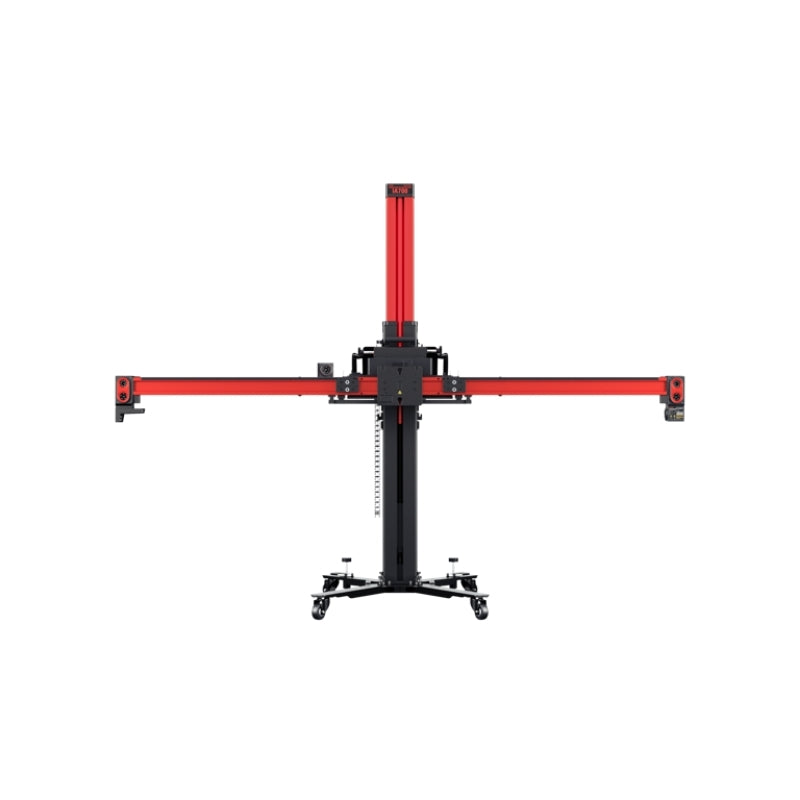

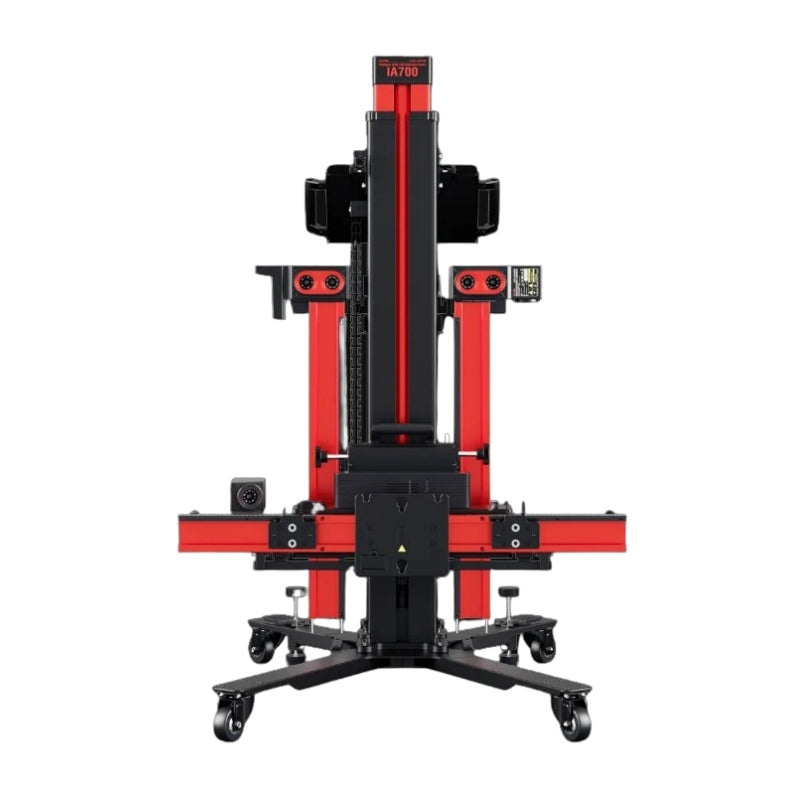

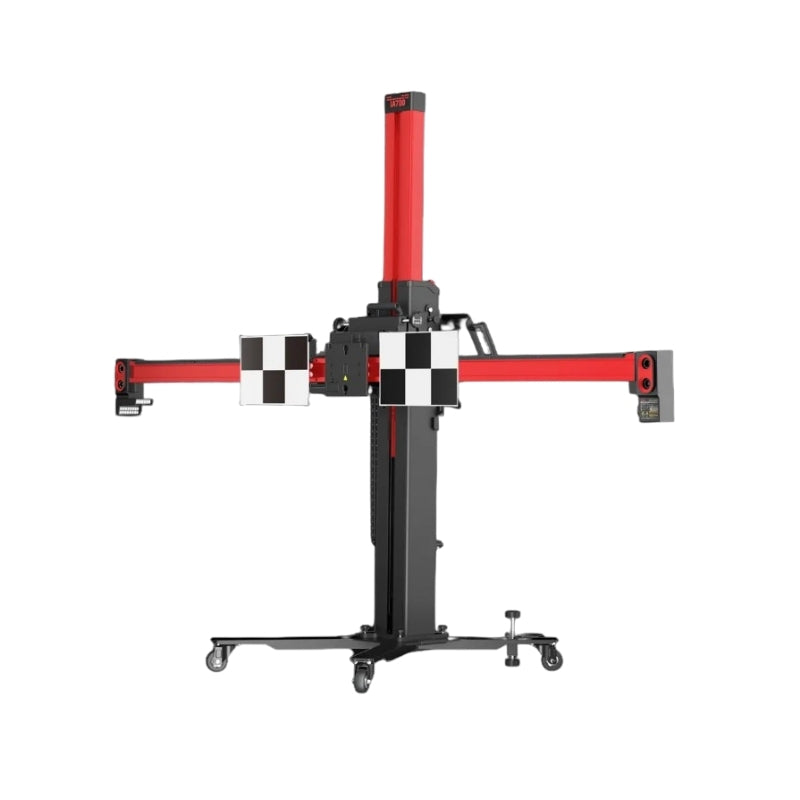

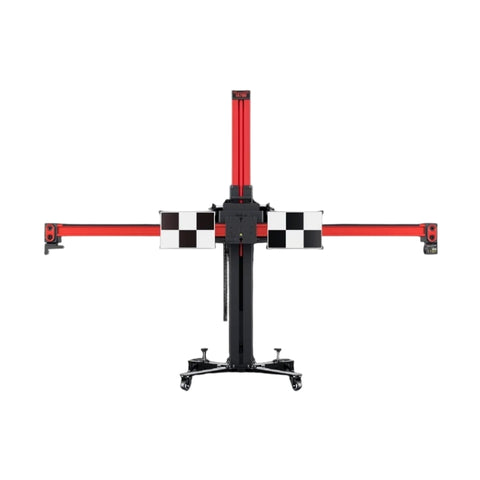

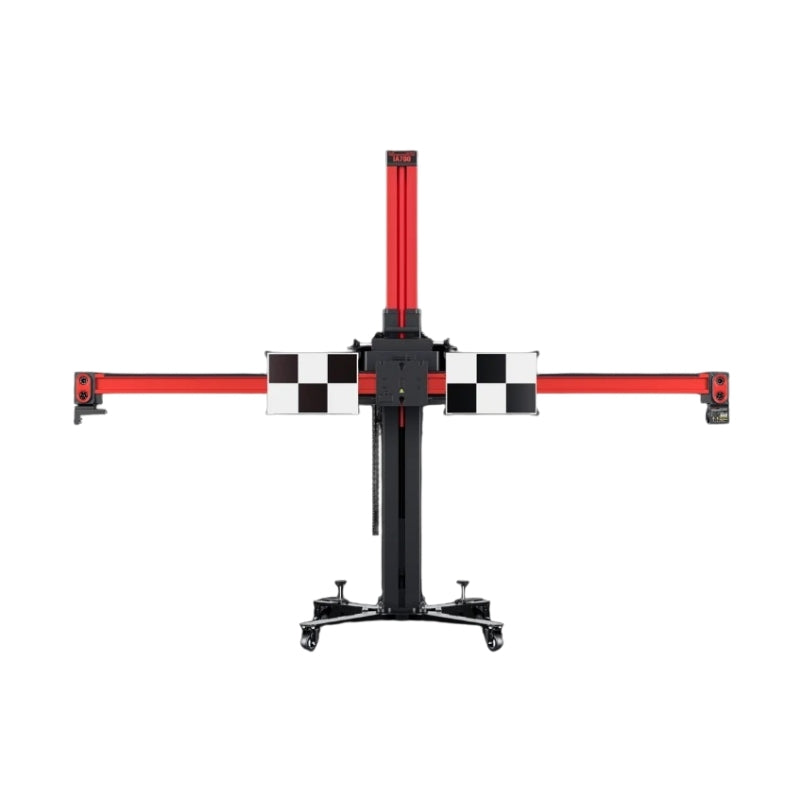

The Autel MaxiSYS IA700LDW package includes the IA700 frame with robotic crossbar that features six high-resolution positioning and tracking cameras, enabling fast and accurate target positioning and prompting unlevel floor compensation. Package includes Lane Departure Warning patterns and targets for calibration of Mercedes-Benz, Nissan, Infiniti, Hyundai, Kia, Toyota, Lexus, Mazda, Mitsubishi, Subaru, Volkswagen, Audi, and Alfa Romeo camera-equipped vehicles. Target case included. Frame quickly disassembles for transport or space-saving storage. The frame ships with four tire clamps with camera targets, a steering wheel lock, brake chocks, a power supply, an alignment aid, and a frame cover. Requires any MaxiSYS 909, MS919 or MS Ultra tablet and an ADAS calibration software upgrade card for static and dynamic ADAS calibration coverage for most U.S., Asian, and European ADAS-equipped vehicles.

Call 1-800-878-6604 for Bulk / Dealer Pricing!

Features:

  • Modular ADAS Calibration Frame with wheel alignment pre-check and optical positioning.
  • Includes Lane Departure Warning patterns and targets for calibration of Mercedes-Benz, Nissan, Infiniti, Hyundai, Kia, Toyota, Lexus, Mazda, Mitsubishi, Subaru, Volkswagen, Audi, and Alfa Romeo camera-equipped vehicles
  • Requires any MaxiSYS 909, MS919 or MS Ultra tablet and an ADAS calibration software upgrade card for static and dynamic ADAS calibration coverage for most U.S., Asian, and European ADAS-equipped vehicles.
  • Frame features robotic crossbar and six-high definition positioning and tracking cameras for optical target positioning and prompting unlevel floor compensation.

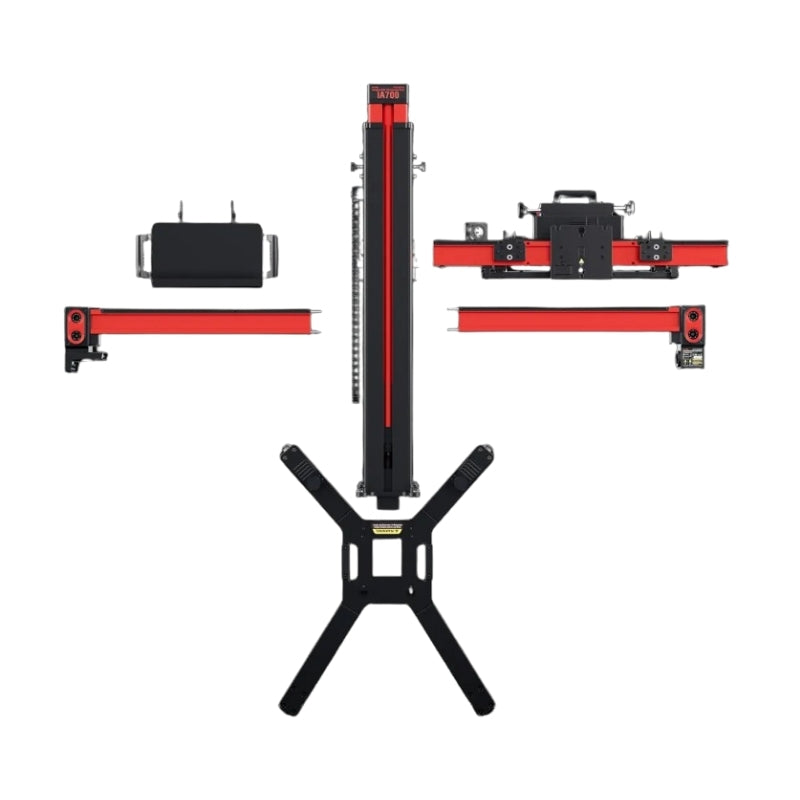

  • Frame disassembles quickly for easy transport or space-saving storage.

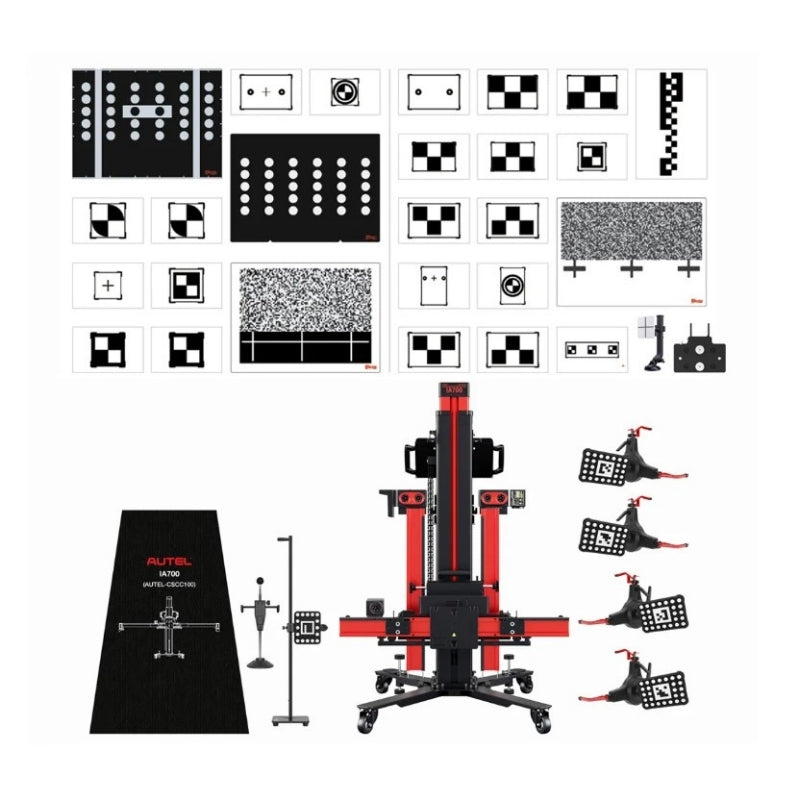

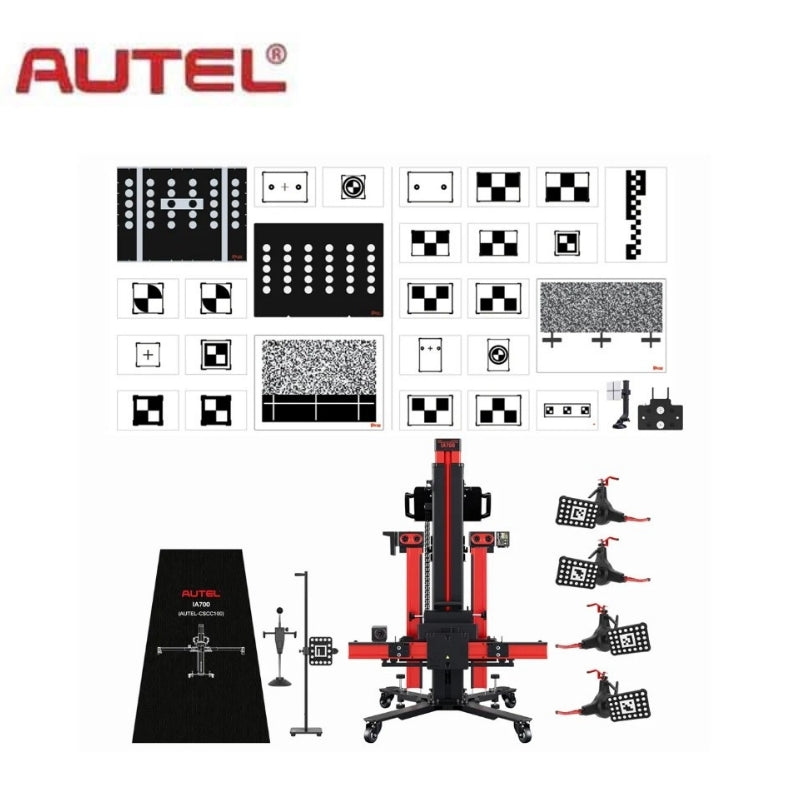

  • Includes four tire clamps with camera targets, a steering wheel lock, brake chocks, power supply, alignment aid, and frame cover. Includes target case.
Feature Specification
Camera System 6 high-definition positioning/tracking cameras integrated into frame
Alignment Pre‑Check Optical vehicle alignment check to OE tolerances before LDW calibration
Floor Compensation Real‑time unlevel surface adjustment (ramp, uneven floor, flat)
Target Types LDW patterns and boards for a wide range of OEM brands
Frame Disassembly Breaks into 5 modules in under 90 seconds for transport or storage
Accuracy Vertical positioning accuracy: ~0.02° using robotic crossbar system
Compatibility Requires MaxiSYS MS909, MS919, or MS Ultra tablet + ADAS software upgrade
Usage Modes Both in-shop bay and mobile deployment
Coverage Regions Supports most U.S., Asian, and European ADAS-equipped vehicles
