Autel - MaxiSYS - MS906Pro2-TS - Professional Diagnostic Wireless Tablet With Comprehensive TPMS Service
- $1,995.00
-
$2,400.00 - $1,995.00
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per

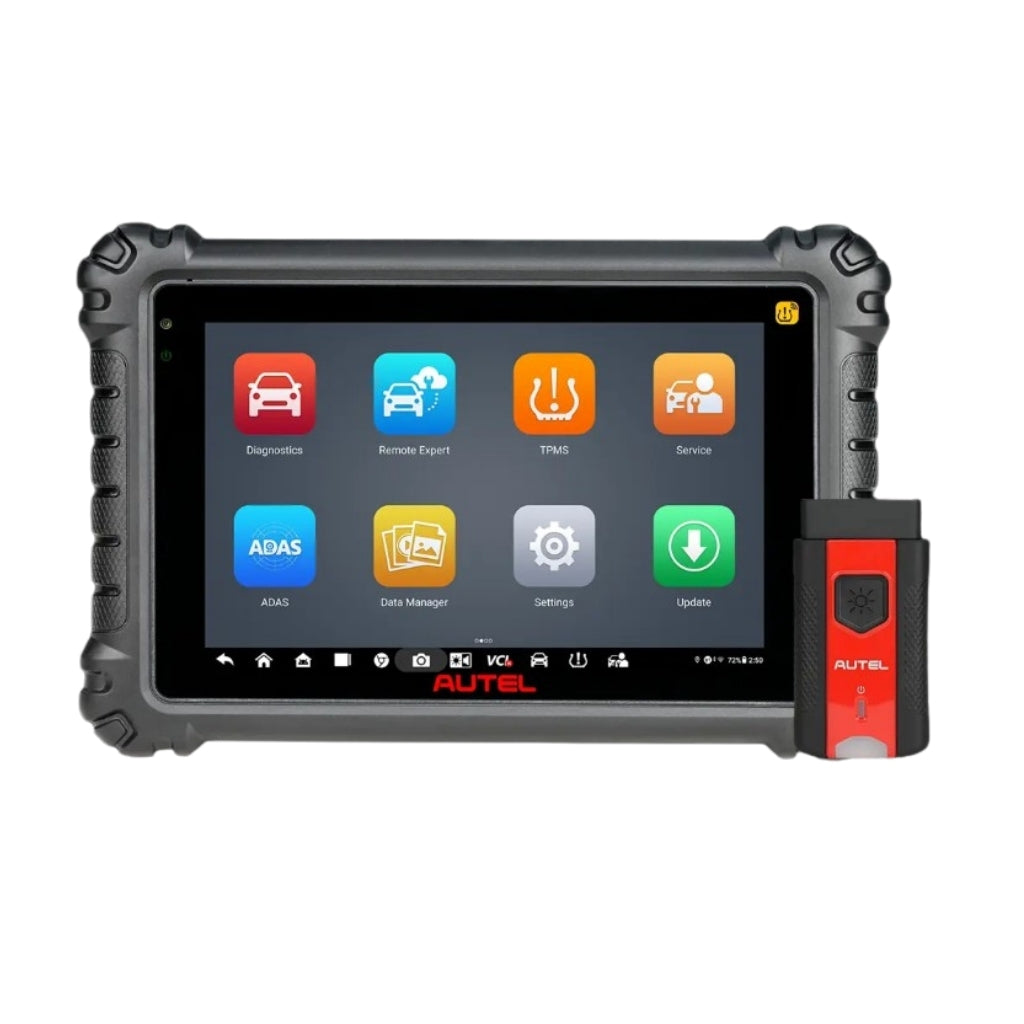

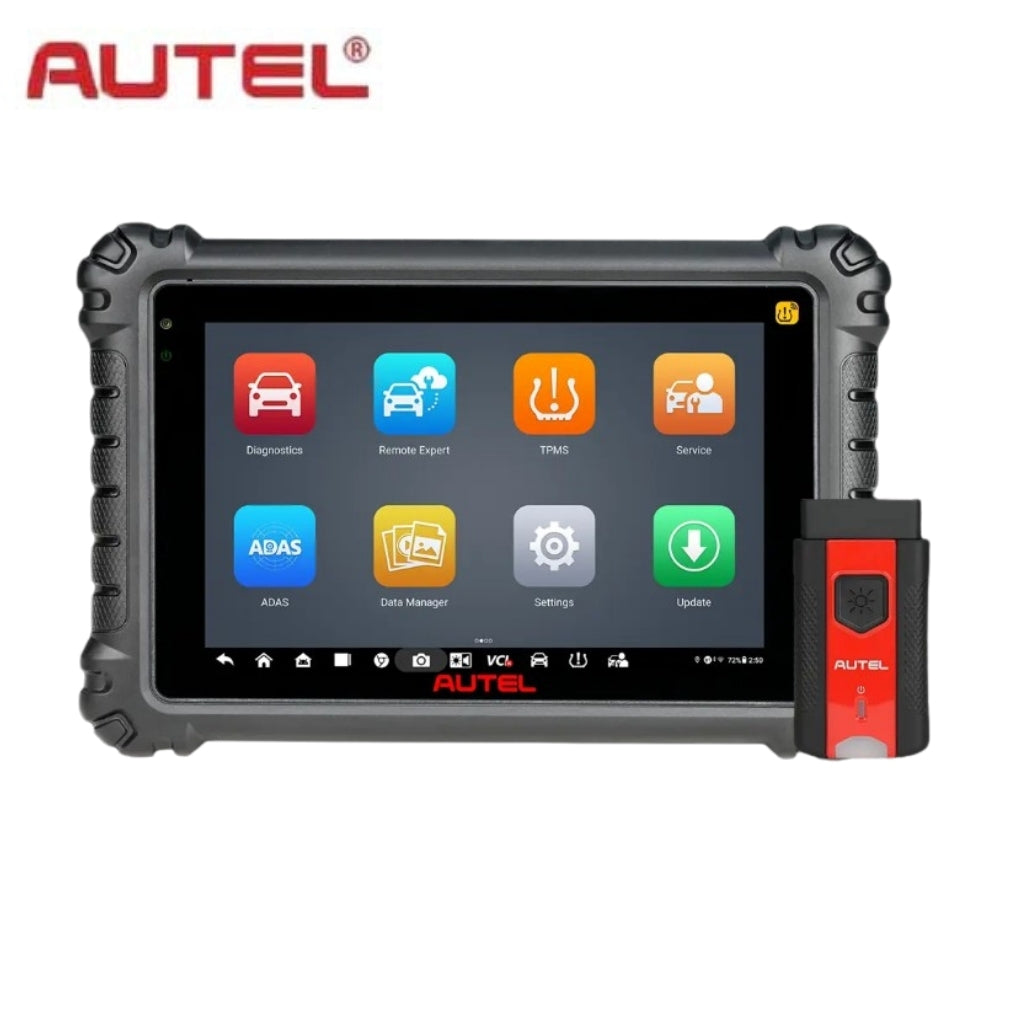

The AUTEL MS906Pro2-TS is an 8-inch, Android-based, wireless professional diagnostics tablet that integrates full vehicle diagnostics with comprehensive TPMS service functions. It is designed for advanced repair shops and technicians who need one tool that handles all systems scanning, ECU coding/adaptation, bi-directional control, and tire pressure sensor programming/relearning — including support for Tesla BLE sensors.
With a powerful octa-core processor, 4 GB RAM + 128 GB storage, and a built-in TPMS antenna (315/433 MHz + Bluetooth Low Energy), the MS906Pro2-TS offers enhanced speed, responsiveness, and flexibility over its predecessor models. It supports AutoScan 2.0, secure gateway access (AutoAuth, VAG SFD), and offers more than 40 guided service functions with direct instruction steps.
Whether you’re diagnosing engine, ABS, airbag, transmission, chassis or body systems, programming new ECUs, or managing TPMS in modern vehicles, this tool is intended to provide OEM-level capabilities in a rugged, portable package.
Description
xFeatures:
- Professional diagnostic wireless 8-inch touchscreen tablet with comprehensive TPMS service with multi-protocol supporting MaxiVCI V200
- Extensive U.S., Asian, and European vehicle diagnostic, service and TPMS coverage
- All systems diagnostics, read and erase codes, view freeze frame and live data, perform bidirectional active tests and special and hidden functions, and perform adaptations and coding
- Integrated TPMS service, including sensor activation, reading, relearning, and 1-Sensor programming for near-universal compatibility
- Embedded TPMS antenna (315/433MHz; 2.4GHz BLE) for broad support including for Tesla vehicles
- Responsive touchscreen display, Octa-core processor, powers AutoScan 2.0 All-Systems Scan and bi-directional communications, 4G+128G high-capacity storage for quicker processing and software access, 16 Megapixel camera for detailed images
- Auto- and Scan VIN rapid vehicle identification, AutoScan of all available systems with ADAS component identification, Pre and Post Scan reporting, Print, email and Cloud-Storage reports and images
- Robust service menu of 40-plus maintenance, service, and reset tasks with direct-to service access and guided instructions
- Automakers-authorized for secure gateway module access on newer vehicles. AutoAuth account for Mercedes-Benz, Nissan, Stellantis (Dodge, Chrysler, Ram, Jeep, Fiat, Maserati, Alfa-Romeo) vehicles
- VAG SFD-access purchased through scanner
- Includes one year of software updates and is protected by a one-year limited warranty
- Ships in protective, hard-blow molded case
Specifications:
| Operating System | Android 10 |
|---|---|
| Processor | Octa-core processor (2.2 GHz + 1.8 GHz) |
| Memory | 4 GB RAM & 128 GB on-board memory/td> |
| Display | 8.0-inch TFT-LED capacitive touch screen with 1920 x 1200 P resolution |
| Connectivity |
|
| Camera | Rear: 16 megapixel, autofocus with flashlight Front: 16 megapixel |
| Sensors | Gravity Accelerometer, Ambient Light Sensor (ALS) |
| Audio Input/Output | Input: Microphone Output: Single speaker, 3-band 3.5 mm stereo/standard headset jack 3-Band 3.5 mm stereo/standard headset jack |
| Power and Battery | • 11,600 mAh 3.7 V lithium-polymer battery • Charging via 12 V AC/DC power supply • Charging via USB Type-C power supply |
| Input Voltage | • DC input: 12V/3A • USB-C input: 5V/3A |
| Power Consumption | 5W |
| Operating Temperature | 0 to 50°C (32 to 122°F) |
| Storage Temperature | -10°C to 60°C (14°F to 140°F) |
| Housing | Strong plastic housing with protective rubber boot |
| Dimensions (WxHxD) | 260 mm (10.0") x 170 mm (6.9") x 30 mm (1.4") |
| Weight | NW: 0.962 kg (2.12 lb.) |
| Protocols | ISO 9142-2, ISO 13400, ISO 14230-2, ISO 15765-4, K-Line, L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, CAN ISO 11898, High speed, Middle speed, Low speed and Single wire CAN, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP 2.0, TP 1.6, SAE J1939, SAE J1708, Fault-Tolerant CAN, CAN FD |
What's in the Package:
- MS906Pro2-TS 8-inch wireless diagnostic tablet
- MaxiVCI V200 vehicle communication interface (wireless)
- Power adapter & USB-C cable
- Carrying / protective hard case
- Quick reference guide / user manual
DOWNLOADS:
- MaxiSYS MS906Pro2-TS User Manual
- MaxiSYS MS906Pro2-TS Quickstart Guide
- MaxiSYS MS906Pro2-TS Quick Reference Guide
- MaxiSYS MS906Pro2-TS Sales Flyer
