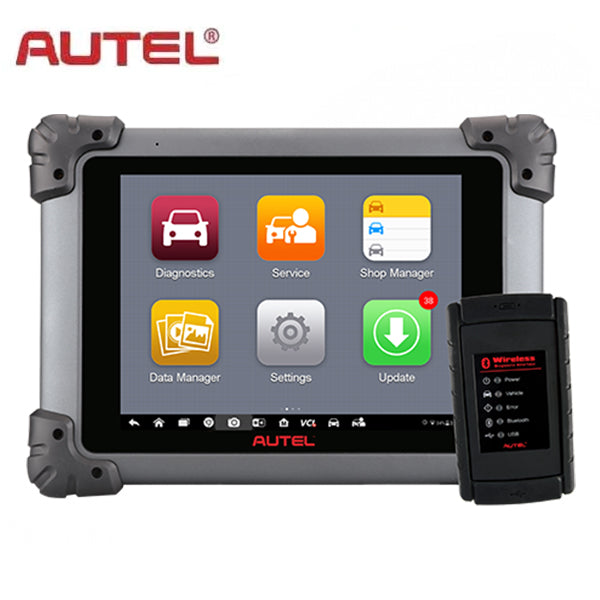

Autel - MaxiSYS MS908S - Advanced Smart Diagnostic Tool
Autel - MaxiSYS MS908S - Advanced Smart Diagnostic Tool
Autel - MaxiSYS MS908S - Advanced Smart Diagnostic Tool
Autel - MaxiSYS MS908S - Advanced Smart Diagnostic Tool
Autel - MaxiSYS MS908S - Advanced Smart Diagnostic Tool

Autel - MaxiSYS MS908S - Advanced Smart Diagnostic Tool

$2,795.00 $3,354.00
Availability: Available
  • Product SKU: AUTEL-MS908S
  • NSID: 8063
  • AUTEL-MS908S

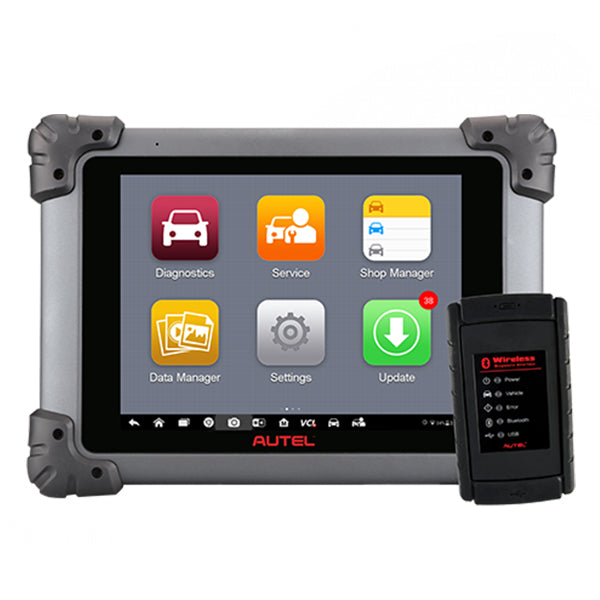

    The MaxiSys MS908S Diagnostic Platform is an evolutionary smart solution for specialized automotive diagnosis. Utilizing the powerful Cortex A7+A15 six-core processor, and a 9.7 inch LED capacitive touch screen, combined with the best possible coverage of OE-level diagnostics, and based on the revolutionary multitask-capable Android Operating system, the MaxiSys organizes information with test instrumentation to help you diagnose symptoms, codes, and customer complaints easily, quickly and efficiently.

    Specifications:

    • Extraordinarily powerful Cortex A7+A15 six-core processor
    • 9.7” 2048x1536 LED-backlit glossy Multi-Touch capacitive display with IPS technology
    • Internal reliable 64GB On-board Memory for better performance
    • Built-in 8-megapixel rear camera with autofocus and flashlight
    • The VCI connects to the main unit wirelessly with up to 70 meters working range
    • 802.11 a/b/g/n/ac Wi-Fi to access your favorite web resources
    • Unique ergonomic design with rubberized outer protection and a rugged internal housing
    • Open source Android Operating System for fast boot-up and multitasking
    • Extensive vehicle coverage for more than 80 US, Asian and European vehicle makes
    • Exceptional OE-Level system coverage for all electronic systems
    • Complete capabilities for codes, live data, active test, ECU information, adaptation, matching, etc
    • Cloud-based Data Manager saves customer and vehicle records, scanner data and technician notes

    $2,795.00
    Get it shipped
    Today!
    Order within
    00 Hrs
    00 Mins
    00 Secs

Technical Information:


Operating System Android™ 4.4.2, KitKat
Processor Samsung Exynos T5260 6-Core Processor (1.3 GHz quad-core ARM Cortex-A7 + 1.7 GHz dual-core ARM Cortex-A15)
Memory 2 GB RAM & 32 GB ROM
Display 8.0" LED capacitive touch screen with 1024x768P resolution
Connectivity

Wi-Fi (802.11 b/g/n) , USB: 2.0 , Mini USB 2.0 , Wireless BT V2.1+EDR Class1 , HDMI 1.4a , SD Card (support up to 32 GB)

Camera (rear) Rear-facing, 8.0 Megapixel, AF with Flashlight
Sensors Gravity Accelerometer, Ambient Light Sensor (ALS)
Audio Input/Output Microphone, Single Speaker, 3-Band 3.5 mm stereo/standard headset jack
Power and Battery 11,000 mAh 3.7 V lithium-polymer battery, Charging via 12 V AC/DC power supply
Input Voltage 12 V (9-35 V)
Power Consumption 5 W
Operating Temperature -10 to 55°C (14 to 131°F)
Storage Temperature -20 to 70°C (-4 to 158°F)
Housing Rubberized outer protection and rugged internal housing
Dimensions (W x H x D) 270.8 mm (10.0”) x 176.0 mm (6.9”) x 36.0 mm (1.4”)
Weight NW: 1.10 kg (2.42 lb.)


Packing List:

Downloads:

How to Update VCI:

Comparison Chart

Models

MaxiSys Elite

MaxiSys CV

MaxiSys MS908S Pro

MaxiSys MS908S

MaxiSys MS906TS

MaxiSys MS906BT

MaxiSys MS906

All Systems DTC Scan
Service Function
Bi-Directional Control
Auto VIN Technology
ECU Coding -- --
ECU Programming -- -- -- -- --

MaxiFix Cloud-Based Info System

Data Manager
Shop Manager
Remote Support
Pre-scan Report & Post-scan Report North America Only -- North America Only North America Only North America Only North America Only
Print Feature
Multi-language Support
Domestic/Asian/European Coverage(1996-Present)
Display Size 9.7" 9.7" 9.7" 9.7" 8" 8" 8"
Wireless VCI MaxiFlash Elite MaxiFlash Elite MaxiFlash Elite Wireless Diagnostic
Interface
MaxiVCI V100 MaxiVCI V100 --
Battery Life 15400 mAh 3.7 V 11000 mAh 3.7 V 11000 mAh 3.7 V 11000 mAh 3.7 V 10000 mAh 3.7 V 10000 mAh 3.7 V 5000 mAh 3.7 V
Memory Storage 64GB 64GB 64GB 64GB 32GB 32GB 32GB
Connector Kit
TPMS -- -- -- -- -- --
Oscilloscope --
Inspection Camera --
ADAS -- --


AUTEL-MS908S

The MaxiSys MS908S Diagnostic Platform is an evolutionary smart solution for specialized automotive diagnosis. Utilizing the powerful Cortex A7+A15 six-core processor, and a 9.7 inch LED capacitive touch screen, combined with the best possible coverage of OE-level diagnostics, and based on the revolutionary multitask-capable Android Operating system, the MaxiSys organizes information with test instrumentation to help you diagnose symptoms, codes, and customer complaints easily, quickly and efficiently.

Specifications:

  • Extraordinarily powerful Cortex A7+A15 six-core processor
  • 9.7” 2048x1536 LED-backlit glossy Multi-Touch capacitive display with IPS technology
  • Internal reliable 64GB On-board Memory for better performance
  • Built-in 8-megapixel rear camera with autofocus and flashlight
  • The VCI connects to the main unit wirelessly with up to 70 meters working range
  • 802.11 a/b/g/n/ac Wi-Fi to access your favorite web resources
  • Unique ergonomic design with rubberized outer protection and a rugged internal housing
  • Open source Android Operating System for fast boot-up and multitasking
  • Extensive vehicle coverage for more than 80 US, Asian and European vehicle makes
  • Exceptional OE-Level system coverage for all electronic systems
  • Complete capabilities for codes, live data, active test, ECU information, adaptation, matching, etc
  • Cloud-based Data Manager saves customer and vehicle records, scanner data and technician notes

Technical Information:


Operating System Android™ 4.4.2, KitKat
Processor Samsung Exynos T5260 6-Core Processor (1.3 GHz quad-core ARM Cortex-A7 + 1.7 GHz dual-core ARM Cortex-A15)
Memory 2 GB RAM & 32 GB ROM
Display 8.0" LED capacitive touch screen with 1024x768P resolution
Connectivity

Wi-Fi (802.11 b/g/n) , USB: 2.0 , Mini USB 2.0 , Wireless BT V2.1+EDR Class1 , HDMI 1.4a , SD Card (support up to 32 GB)

Camera (rear) Rear-facing, 8.0 Megapixel, AF with Flashlight
Sensors Gravity Accelerometer, Ambient Light Sensor (ALS)
Audio Input/Output Microphone, Single Speaker, 3-Band 3.5 mm stereo/standard headset jack
Power and Battery 11,000 mAh 3.7 V lithium-polymer battery, Charging via 12 V AC/DC power supply
Input Voltage 12 V (9-35 V)
Power Consumption 5 W
Operating Temperature -10 to 55°C (14 to 131°F)
Storage Temperature -20 to 70°C (-4 to 158°F)
Housing Rubberized outer protection and rugged internal housing
Dimensions (W x H x D) 270.8 mm (10.0”) x 176.0 mm (6.9”) x 36.0 mm (1.4”)
Weight NW: 1.10 kg (2.42 lb.)


Packing List:

Downloads:

How to Update VCI:

Comparison Chart

Models

MaxiSys Elite

MaxiSys CV

MaxiSys MS908S Pro

MaxiSys MS908S

MaxiSys MS906TS

MaxiSys MS906BT

MaxiSys MS906

All Systems DTC Scan
Service Function
Bi-Directional Control
Auto VIN Technology
ECU Coding -- --
ECU Programming -- -- -- -- --

MaxiFix Cloud-Based Info System

Data Manager
Shop Manager
Remote Support
Pre-scan Report & Post-scan Report North America Only -- North America Only North America Only North America Only North America Only
Print Feature
Multi-language Support
Domestic/Asian/European Coverage(1996-Present)
Display Size 9.7" 9.7" 9.7" 9.7" 8" 8" 8"
Wireless VCI MaxiFlash Elite MaxiFlash Elite MaxiFlash Elite Wireless Diagnostic
Interface
MaxiVCI V100 MaxiVCI V100 --
Battery Life 15400 mAh 3.7 V 11000 mAh 3.7 V 11000 mAh 3.7 V 11000 mAh 3.7 V 10000 mAh 3.7 V 10000 mAh 3.7 V 5000 mAh 3.7 V
Memory Storage 64GB 64GB 64GB 64GB 32GB 32GB 32GB
Connector Kit
TPMS -- -- -- -- -- --
Oscilloscope --
Inspection Camera --
ADAS -- --
