Autel - MaxiSYS - MS909CV - Commercial Smart Diagnostic Tablet - MaxiFlash VCI - Measurement System - UHS Hardware
Autel - MaxiSYS - MS909CV - Commercial Smart Diagnostic Tablet - MaxiFlash VCI - Measurement System - UHS Hardware
Autel - MaxiSYS - MS909CV - Commercial Smart Diagnostic Tablet - MaxiFlash VCI - Measurement System - UHS Hardware

Autel - MaxiSYS - MS909CV - Commercial Smart Diagnostic Tablet - MaxiFlash VCI - Measurement System

Available to Order
SKU: AUTEL-MS909CV
NSID: 31226

Please Note: This product has a lead time

$3,799.95
$6,540.00
$3,799.95

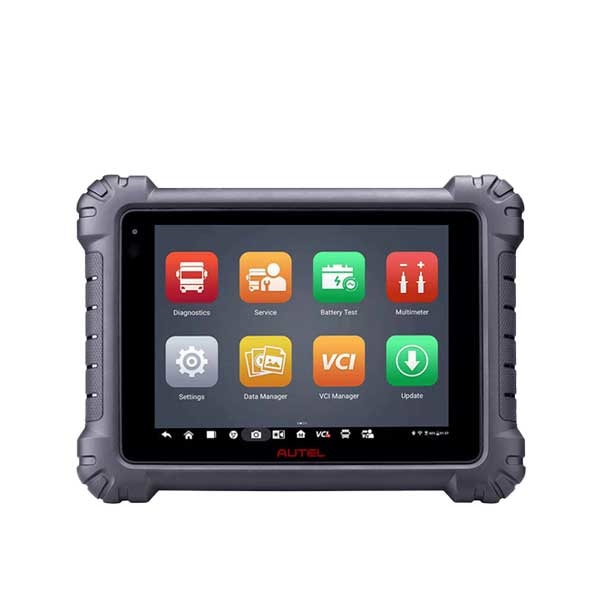

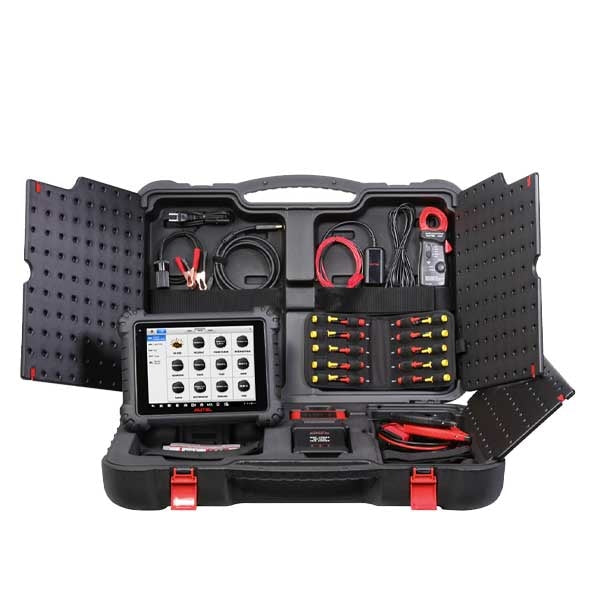

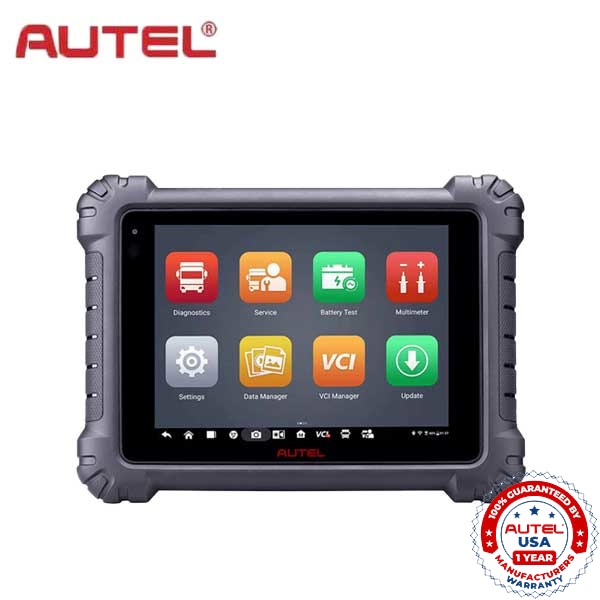

The Autel MaxiSYS MS909CV is an advanced commercial vehicle diagnostic tablet compatible with 80+ models of light, medium, and heavy duty vehicles. The 9.7-inch wireless Android-based touchscreen tablet performs extensive diagnostics including the ability to read/erase codes, view/graph live data, and perform active tests. The tablet includes a Bluetooth-enabled vehicle communication interface (VCI)/J2534 pass-thru programmer, the MaxiBAS B200 battery/starting/charging system test device, alligator clamps, multimeter and amp clamps. The tablet also includes ADAS Calibration Software for Class 3-5 vehicles and Class 6-8 vehicles with dynamically calibrated systems. The MS909CV includes one year limited warranty and a year of free software updates.

Features and benefits:

  • MaxiSYS MS909CV performs enhanced system diagnostics on more than 80 models of light, medium, and heavy duty commercial vehicles.
  • 9.7-inch Wireless Android-Based Touchscreen Diagnostics Tablet
  • Octa-core Processor / 128 GB Storage Memory
  • Wireless Vehicle Communication Interface (VCI)/J2534 passthru programming device
  • Advanced diagnostics with Dynamic Module Topology, and the ability to perform Active Tests and Special Functions
  • Performs Starting and Charging Systems Analysis with included MaxiBAS B200 tester with alligator clamps
  • Includes Multimeter & Amp Clamp
  • ADAS Calibration Software for Class 3-5 vehicles and Class 6 to 8 Vehicles with Dynamically Calibrated Systems
  • Rapid Vehicle Identification via VINscan and AutoVin
  • Includes One Year Limited Warranty and Free Software Updates
Call 1-800-878-6604 for Bulk / Dealer Pricing!



Specifications:

Operating System Android 10.0
Processor Qualcomm 660 Octa-core Processor (2.2GHz Quad-core A73 + 1.8GHz Quad-core A53)
Memory 4GB RAM & 128GB On-board Memory
Display 9.7 inch TFT-LCD with 1536 x 2048 resolution & capacitive touchscreen
Connectivity Dual Wi-Fi (802.11 a/b/g/n/ac 2x2 MIMO)
BT V5.0 + BR/EDR
GPS
USB 2.0 (2 USB TYPE-A ports and a Mini USB port)
HDMI 2.0
SD Card (Support up to 256GB)
Camera (rear) Rear: 16 Megapixel, Autofocus with Flashlight
Front: 16 Megapixel
Sensors Gravity Accelerometer, Ambient Light Sensor (ALS)
Audio Input/Output Microphone
Dual Speakers
3-Band 3.5 mm stereo/standard headset jack
Power and Battery 15000mAh 3.8V lithium-polymer battery
Charging via 12V AC/DC power supply
Input Voltage 12V/1.3A Adapter
Operating Temperature 0 to 50°C (32 to 122°F)
Storage Temperature -20 to 60°C (-4 to 140°F)
Dimensions (W x H x D) 304.4 mm (11.98") x 227.8 mm (8.97") x 42.5 mm (1.67")
Protocols DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can(GMLAN), ISO-11897-2, ISO-11897-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2)


Accessories:

Downloads:


Autel USA Tech Support: 855-288-3587

Autel Key Cutting and Programming Machines are made for use in the North Amercian (U.S.A., Canada, Caribbean Islands) and Carribean Regions (Mexico, Guatemala, Belize, El Salvador, Honduras, Nicaragua, Costa Rica, Panama ). They are not intended to be used outside these regions and some models may have region locks on certain software functions and hardware may not be compatible with regional infrastructure. If you intend to purchase this for use outside of the specified regions you do so at your own risk. The manufacturer will refuse the warranty claims and may refuse software support if it is determined being used outside of the designated region. UHS Hardware has the right to refuse sale of this product outside its designated region

Compatible With

Autel Key Cutting and Programming Machines are made for use in the North Amercian (U.S.A., Canada, Caribbean Islands) and Carribean Regions (Mexico, Guatemala, Belize, El Salvador, Honduras, Nicaragua, Costa Rica, Panama ). They are not intended to be used outside these regions and some models may have region locks on certain software functions and hardware may not be compatible with regional infrastructure. If you intend to purchase this for use outside of the specified regions you do so at your own risk. The manufacturer will refuse the warranty claims and may refuse software support if it is determined being used outside of the designated region. UHS Hardware has the right to refuse sale of this product outside its designated region
