Autel - MAXITPMS TBE200 - Laser-Enabled Tire Thread Depth Examiner
Out of Stock
SKU:
AUTEL-TBE200
NSID:
80011
- $495.00
-
$594.00 - $495.00
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per

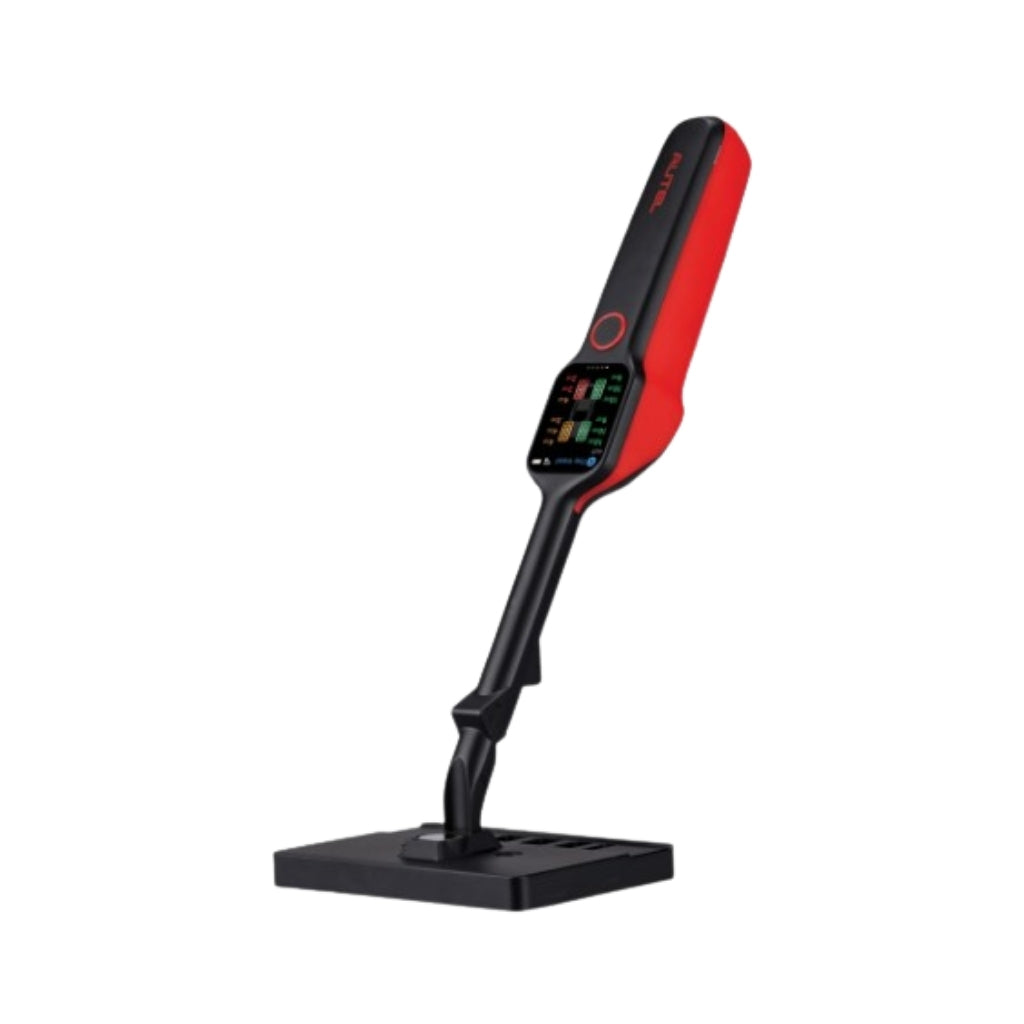

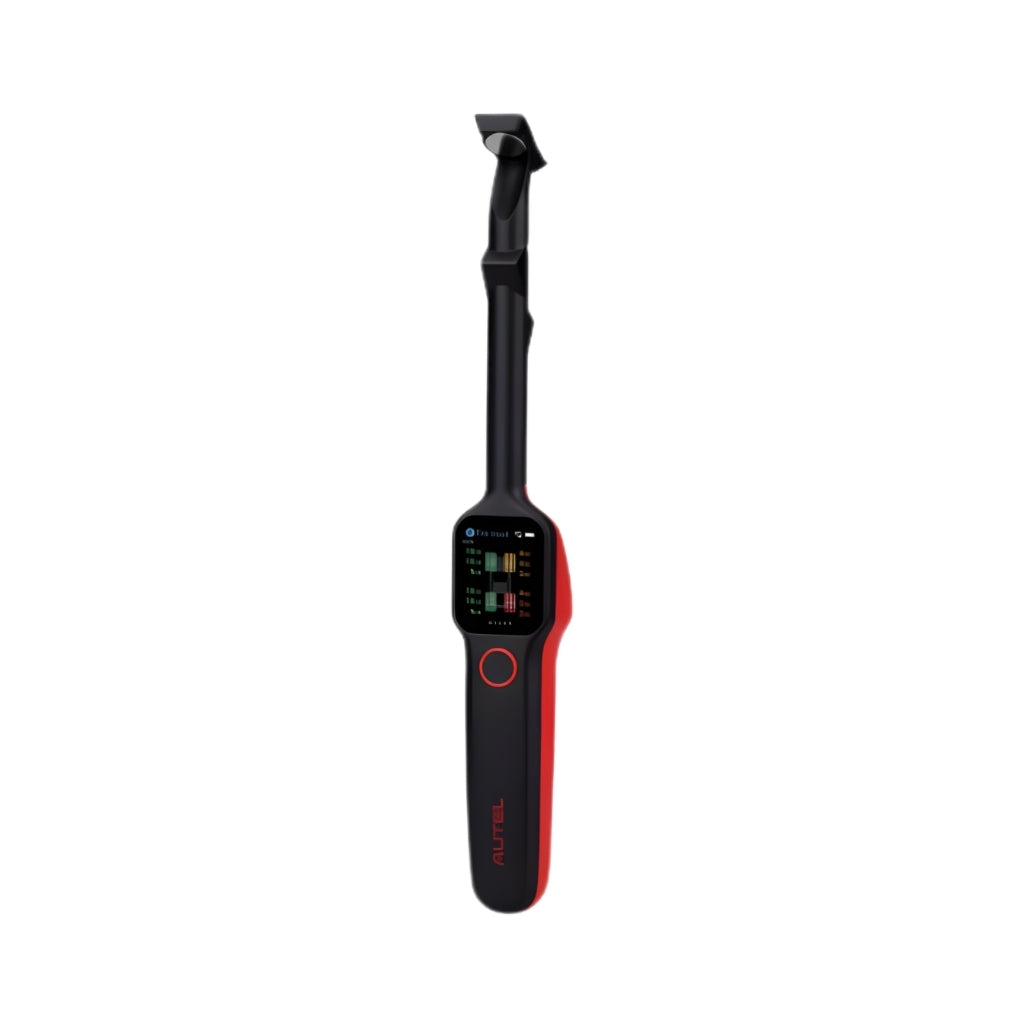

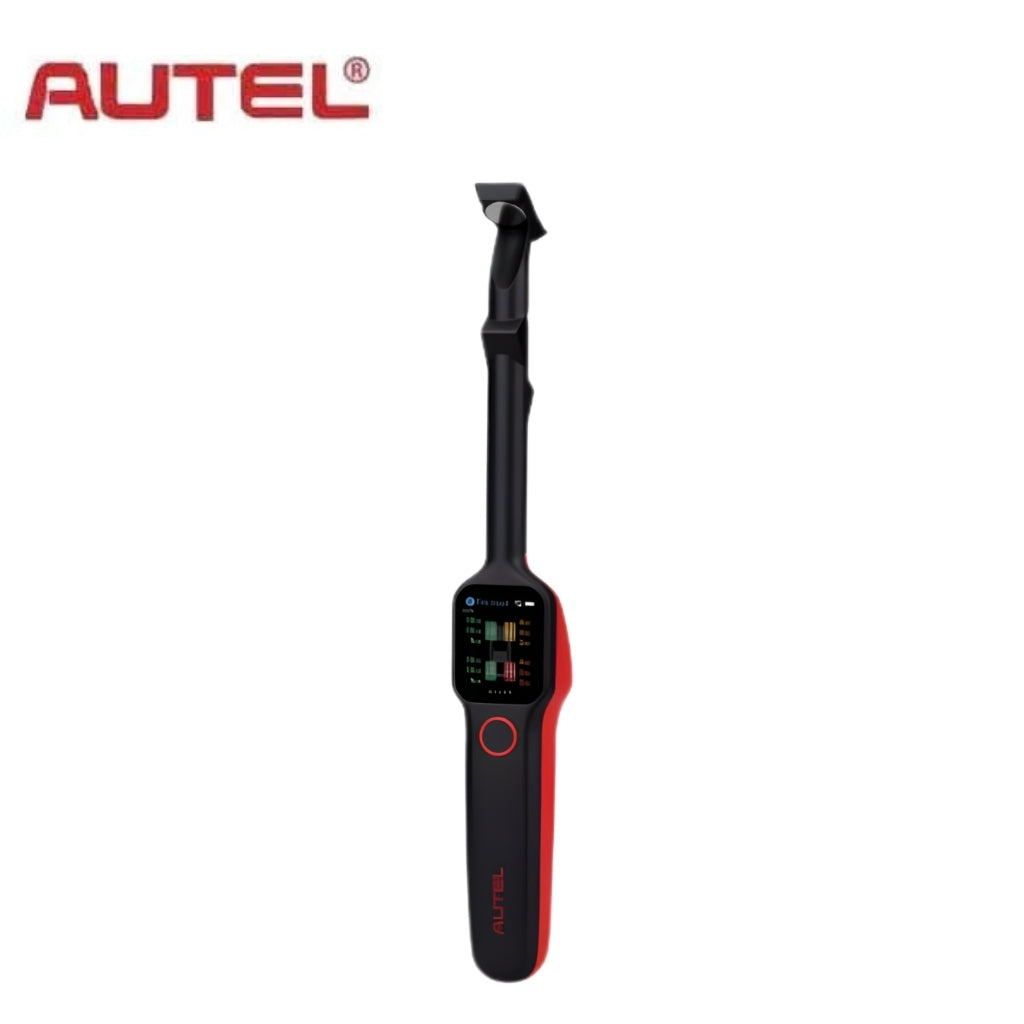

The Autel MAXITPMS TBE200 is a laser-enabled inspection tool designed to accurately measure both tire tread depth and brake‐disc wear all in one device without removing the wheel. By combining laser technology, dual-cameras and a high-resolution touchscreen display, the TBE200 enables automotive technicians and service centres to quickly assess tire and brake condition, document wear or damage, and generate detailed service recommendations.
Features:

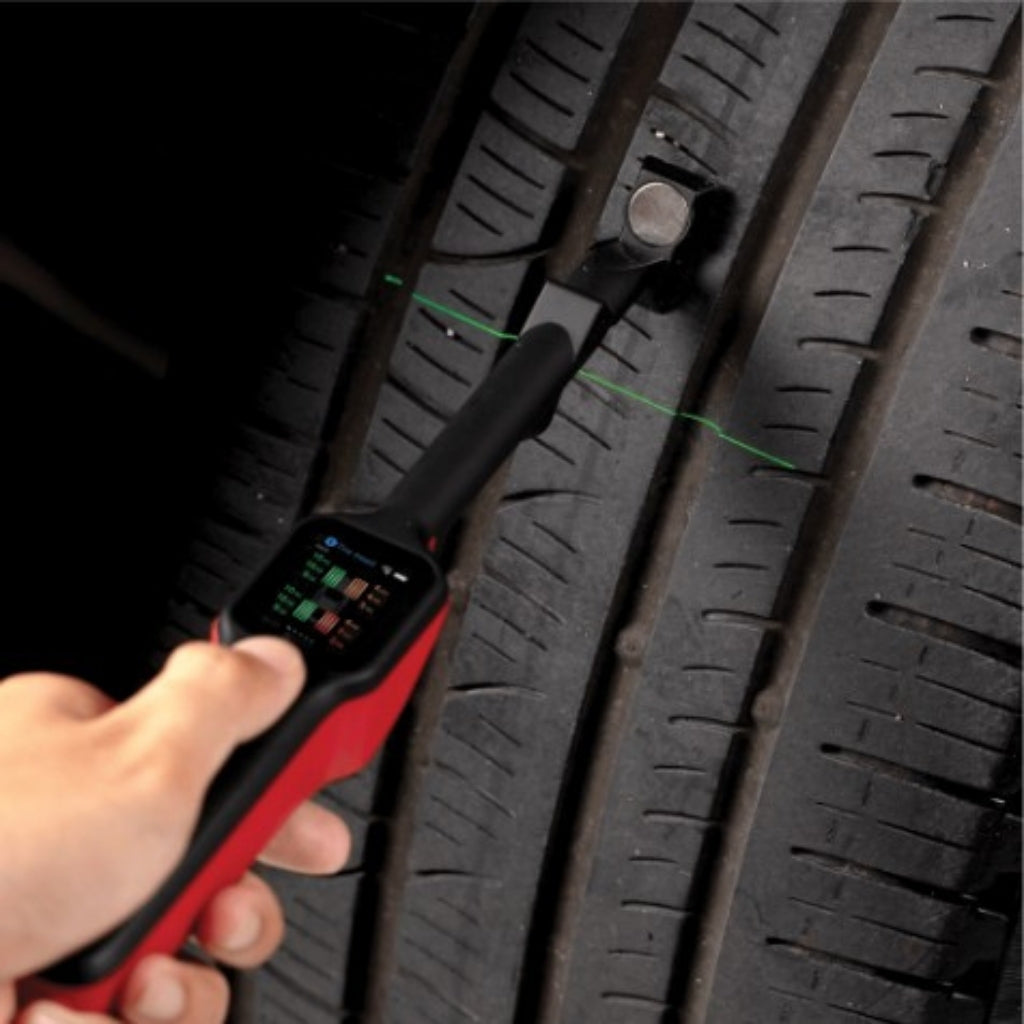

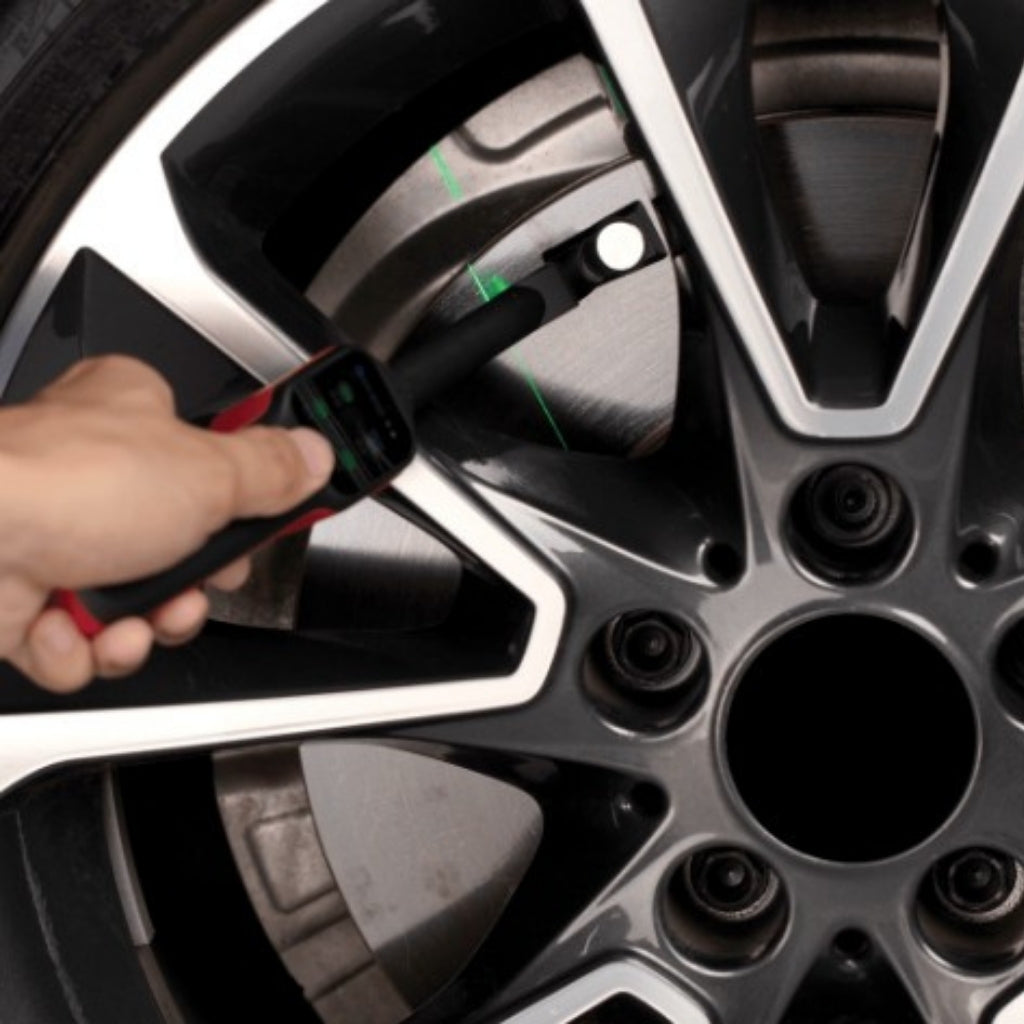

- Laser measurement with 0.1 mm accuracy for tire tread depth and brake disc wear.
- Real-time graphical display of measurement data curves on a 1.65″ AMOLED “Super Retina” touchscreen.
- Dual camera system (1 MP macro + 8 MP zoom) which allows: documenting tire wear/damage, scanning the Tire Identification Number (TIN) or DOT serial.
- Built-in software logic for wear analysis: colour-coded wear status (e.g., green = good, yellow = caution, red = replace), uneven wear detection, service suggestions (tire replacement, rotation, alignment) and tire-age/recall alerts.
- Quick Check mode: measure both tread depth and brake disc wear in one session.
- Compatibility with Autel ITS600 (and ITS600 Pro) via WiFi/USB for full tyre/TPMS/brake health reports with print/share capability.
- Supports broad vehicle & tyre coverage: passenger cars, off-road vehicles and commercial vehicles, and most tyre brands and types (Goodyear, Continental, Bridgestone, Dunlop, etc.).
| Specification | Details |
|---|---|
| Recommended Use | Indoor environment |
| Processor | 4 × ARM Cortex-A35 @ 1.5 GHz |
| Memory | 1 GB RAM (LPDDR3) · 4 GB internal storage (ROM) |
| Display | 1.65″ AMOLED capacitive touchscreen, 348 × 442 pixels |
| Connectivity | Wi-Fi, USB 2.0 (Type-C) |
| Cameras / Sensors | 1 MP macro camera + 8 MP zoom camera (30 fps) |
| Laser Classification | Class 3R laser product (approx. 520 nm) |
| Measurement Accuracy | 0.1 mm (tread depth & brake disc wear) |
| Battery & Power | Internal 3.7 V / 3000 mAh (18650 Li-ion); charges via 5 V / 1.5 A input |
| Battery Life | Approximately 8 hours continuous use (single charge) |
| Power Consumption | Approx. 300 mA @ 3.7 V (AMOLED on, default brightness) |
| Operating Temperature | -10 °C to 45 °C (14 °F to 113 °F) |
| Storage Temperature | -20 °C to 60 °C (-4 °F to 140 °F) |
| Dimensions (W × H × D) | 283.0 mm × 39.0 mm × 33.5 mm (11.14" × 1.54" × 1.32") |
| Net Weight | 188 g (0.41 lb) |
| Measurement Modes | Tire Tread Check (single or all tread), Brake Disc Check, Quick Check (both) |
| Wear Status Indication | Color icons: Gray = Untested, Green = Normal, Yellow = Warning, Red = Replace |
What's Inluded:
- 1 × TBE200 Main Unit (Tire & Brake Examiner)
- 1 × Calibration Table
- 1 × Power Adapter
- 1 × Type-C USB Cable
- 1 × Quick Reference Guide
- 1 × Carrying Case
- 1 × Packing List
