*Discontinued* Baldwin Reserve - Santa Cruz Contemporary Square Rose Handleset - Singl Cyl - 150 - Satin Nickel - Grade 2 - RH

*Discontinued* Baldwin Reserve - Santa Cruz Contemporary Square Rose Handleset - Singl Cyl - 150 - Satin Nickel - Grade 2 - RH

Discontinued
SKU BLD-EE.SANXSQU.R.CQE.150.6L.DS.CKY.KD NSID 37795
$369.20

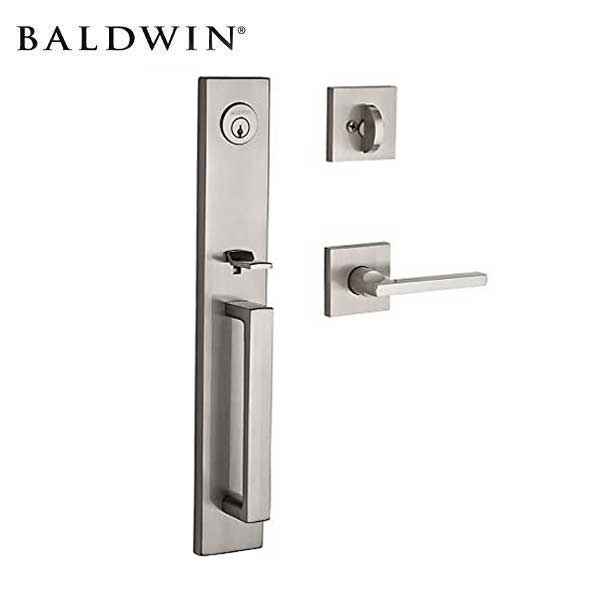

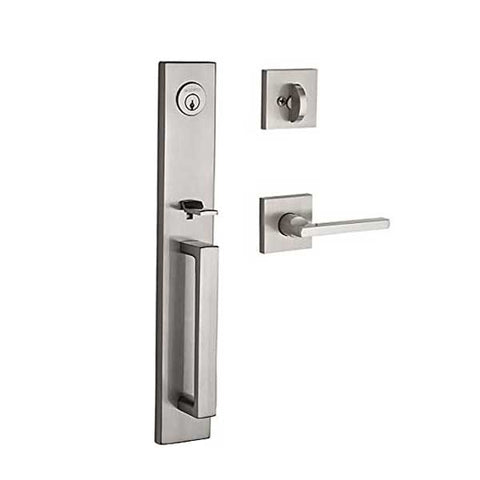

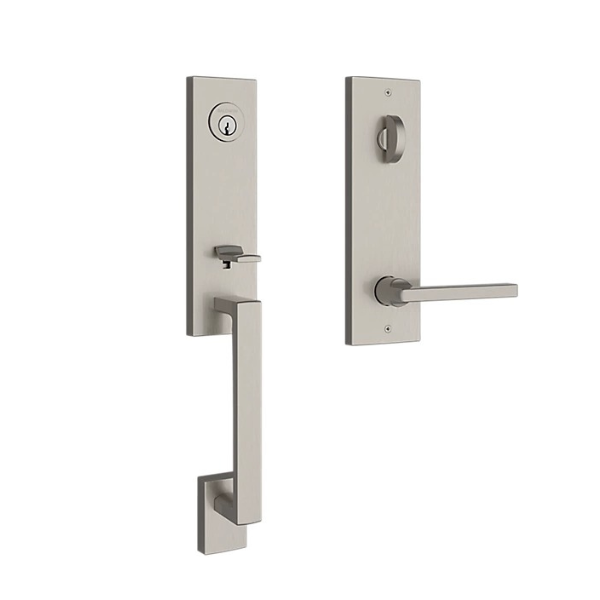

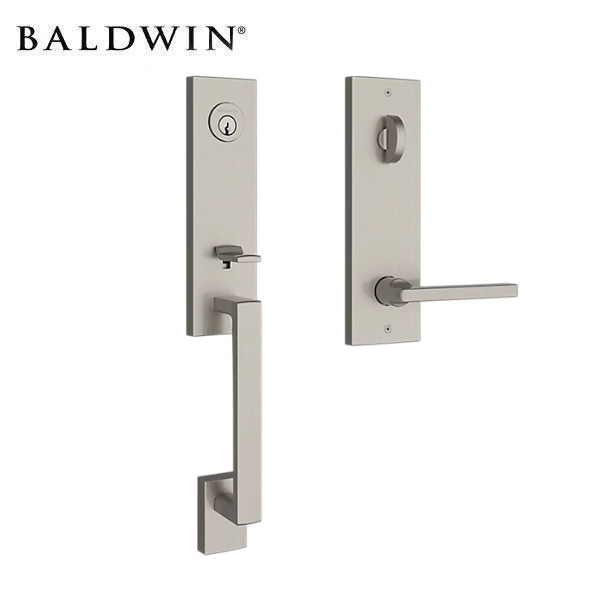

Santa Cruz Contemporary - Single Cylinder Handleset with Contemporary Square Rose and Square Lever on Interior

Single Cylinder: Baldwin's single cylinder handleset has a keyed cylinder on the exterior and a thumbturn on the interior. Unlocking and locking the deadbolt is done by either a key on the exterior or via the thumbturn on the interior. This handleset includes both the interior and the exterior for a complete entrance solution.

Features:

  • Solid forged brass construction built to last a lifetime.
  • Baldwin 5-pin C-Keyway standard
  • Versatility and Easy Installation:
  • Adjustable Latch for both 2-3/8" and 2-3/4" backset
  • Round Corner, Square Corner and Drive-In Latch Plates
  • Includes both Round Corner and Square Corner Strike Plates
  • Guide Post for Easy Installation
  • Accommodates door thickness 1-3/8" to 2".
  • 2-1/8" cross bore and 1" edge bore for latch.
  • Tested to exceed ANSI/BHMA Grade 2 security.
  • Right Handing Configuration
  • Solid brass deadbolt latch with hardened steel roll pin for additional strength and security.
  • Shown with Square Lever and Contemporary Square Rose.
  • Limited Lifetime Mechanical Warranty and Limited 25 Year Finish Warranty.

View full details

Details

Specifications

Configuration
 Handleset
Cylinder Single Cylinder - 5 Pin C-Keyway Pin & Tumbler
Handing Right
Finish 150 - Satin Nickel
Latch Faceplate Drive-In, Round Corner, Square Corner
Backset Adjustable 2-3/8" or 2-3/4"
Center to Center
 5.5 in.
Cross Bore
 2-1/8"
Door Thickness
 1-3/4", 1-7/8", 2"
Latch 6 Way Latch
Strike Dual Strike Kit
Grip Center to Center
 8.40625 in.
Handle Projection
 2.4375 in.
Interior Handle Length
 4.25 in.
Interior Trim Height
 2.5625 in.
Interior Trim Width
 2.5625 in.
Overall Height
 17.5 in.
BHMA Certification
 Grade 2
