Baldwin Reserve - SC.CSD - Contemporary Square Deadbolt - Singl Cyl - 190 - Satin Black - Grade 2
- Product SKU: BLD-SC.CSD.190.6L.DS.CKY.KD
- NSID: 7576
-
BLD-SC.CSD.190.6L.DS.CKY

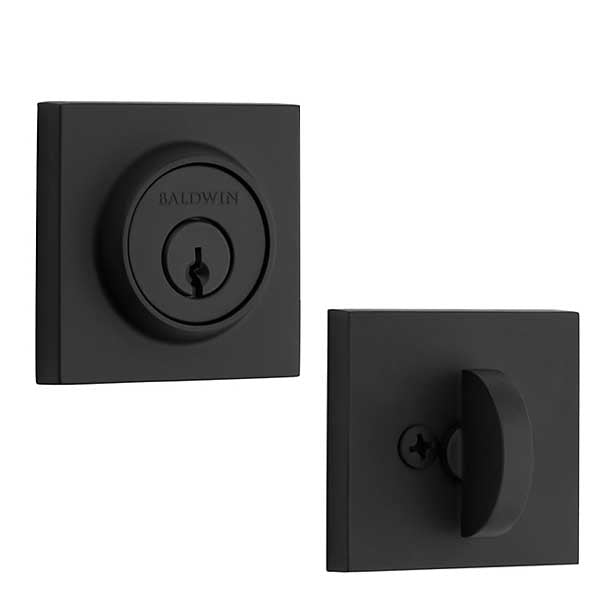

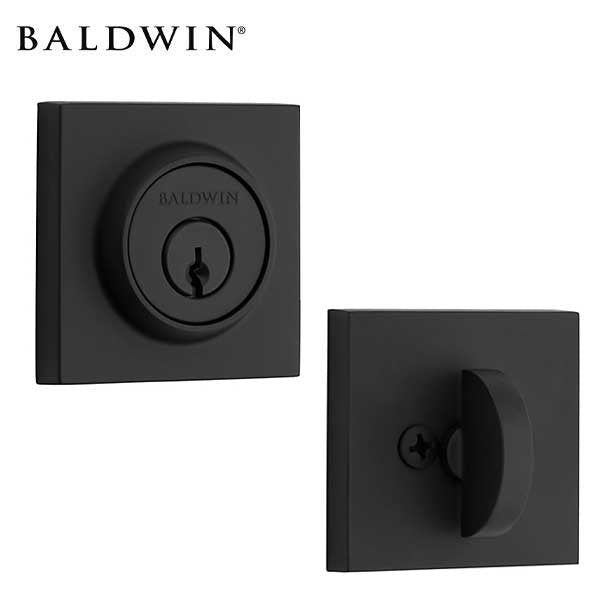

Baldwin Contemporary Square Single Cylinder Deadbolt
Single Cylinder: Baldwin's single cylinder deadbolt has a keyed cylinder on the exterior and a thumbturn on the interior. Unlocking and locking the deadbolt is done by either a key on the exterior or via the thumbturn on the interior. Paired with a Baldwin keyed or passage lever or knob makes for a perfect entry solution for a back door or garage.
Features:
- Solid forged brass construction built to last a lifetime.
- Baldwin 5-pin C-Keyway standard
- Versatility and Easy Installation:
- Adjustable Latch for both 2-3/8" and 2-3/4" backset
- Round Corner, Square Corner and Drive-In Latch Plates
- Includes both Round Corner and Square Corner Strike Plates
- Guide Post for Easy Installation
- Accommodates door thickness 1-3/4" to 2".
- 2-1/8" cross bore and 1" edge bore for latch.
- Tested to exceed ANSI/BHMA Grade 2 security.
- Features 1" solid brass throw bolt latch with hardened steel roll pin for additional strength and security.
- Features low profile cylinder projection.
- Limited Lifetime Mechanical Warranty and Limited 25 Year Finish Warranty.
- Solid forged brass construction built to last a lifetime.
Specifications
| Configuration |
Deadbolt |
| Function |
Keyed Entry, Single Cylinder |
| Cylinder | 5 Pin C Keyway |
| Finish | 190- Satin Black |
| Backset | Adjustable 2-3/8" or 2-3/4" |
| Latch Faceplate |
Drive-In, Round Corner, Square Corner |
| Diameter | 2.34375 " |
| Cross Bore |
2-1/8" |
| Edge Bore | 1" |
| Door Thickness |
1-3/4" to 2" |
| Deadbolt Diameter | 2.6" in |
| Concealed Screws | No |
| BHMA Certification |
Grade 2 |
Downloads
Return Policy: We do not accept returns on unsealed products. In order to return a defective item a support ticket is needed. To receive a ticket, please contact Baldwin directly at 800-566-1986 or visit their support page here. Once you have the ticket contact UHS Hardware for the return.
