Baldwin Reserve - SC.TRD - Traditional Round Deadbolt - Singl Cyl - 150 - Satin Nickel - Grade 2

In Stock
SKU: BLD-SC.TRD.150.6L.DS.CKY.KD
NSID: 7612

Get it shipped ! Order within:

Get it shipped ! Order within:

Get an Extra Hour with

$67.60
$78.78
$67.60

BLD-SC.TRD.150.6L.DS.CKY.KA

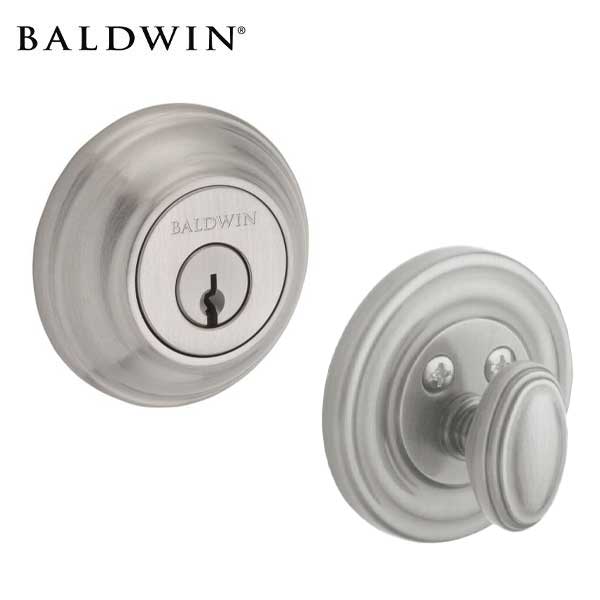

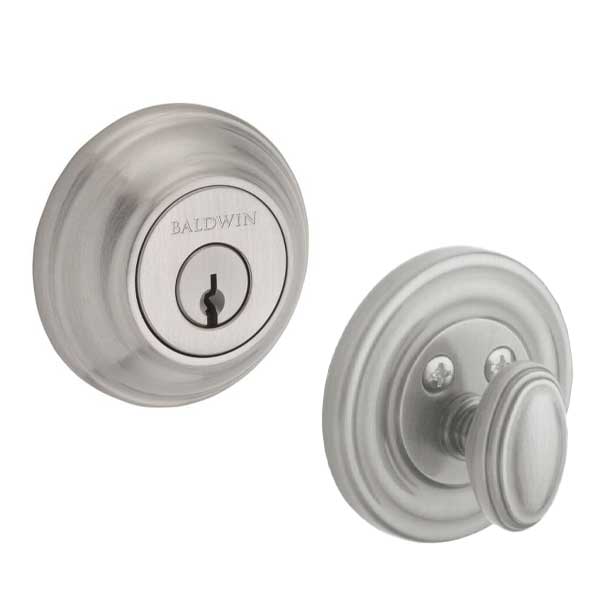

Baldwin Traditional Round Single Cylinder Deadbolt

Single Cylinder: Baldwin's single cylinder deadbolt has a keyed cylinder on the exterior and a thumbturn on the interior. Unlocking and locking the deadbolt is done by either a key on the exterior or via the thumbturn on the interior. Paired with a Baldwin keyed or passage lever or knob makes for a perfect entry solution for a back door or garage.

Features:

  • Solid forged brass construction built to last a lifetime.
  • Baldwin 5-pin C-Keyway standard
  • Versatility and Easy Installation:
  • Adjustable Latch for both 2-3/8" and 2-3/4" backset
  • Round Corner, Square Corner and Drive-In Latch Plates
  • Includes both Round Corner and Square Corner Strike Plates
  • Guide Post for Easy Installation
  • Accommodates door thickness 1-3/4" to 2".
  • 2-1/8" cross bore and 1" edge bore for latch.
  • Tested to exceed ANSI/BHMA Grade 2 security.
  • Features 1" solid brass throw bolt latch with hardened steel roll pin for additional strength and security.
  • Features low profile cylinder projection.
  • Limited Lifetime Mechanical Warranty and Limited 25 Year Finish Warranty.

Call 1-800-878-6604 for Bulk / Dealer Pricing!

Specifications

Configuration
Deadbolt
Function
Keyed Entry, Single Cylinder
Cylinder 5 Pin C Keway
Finish 150- Satin Nickel
Backset Adjustable 2-3/8" or 2-3/4"
Latch Faceplate
Drive-In, Round Corner, Square Corner
Knob Diameter 2.34375 "
Cross Bore
2-1/8"
Edge Bore 1"
Door Thickness
1-3/4" to 2"
Deadbolt Diameter 2.6" in
Concealed Screws No
BHMA Certification
Grade 2
