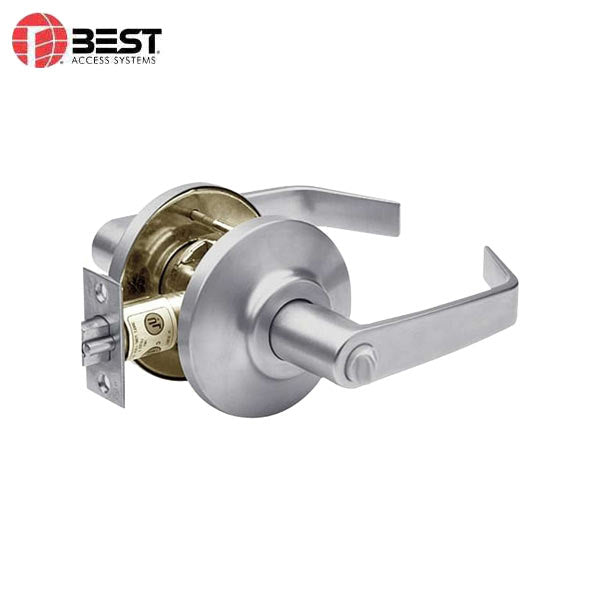

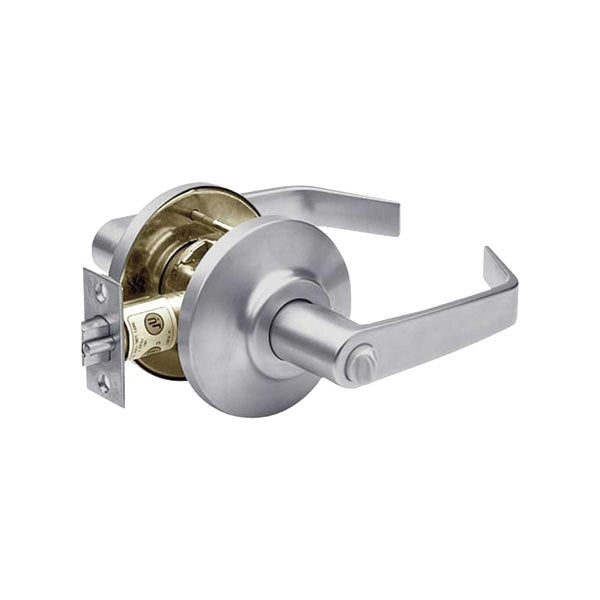

BEST - 7KC30L15DS3626 - Privacy Cylindrical Lock - Fire Rated - 15 Lever - Satin Chrome - Grade 2

BEST - 7KC30L15DS3626 - Privacy Cylindrical Lock - Fire Rated - 15 Lever - Satin Chrome - Grade 2

Out of stock
SKU BEST-7K-C3OL15D-S3-626 NSID 32819
$217.56$261.07On Sale You save $43.51 (17%)


The Best 7KC30L15DS3626 series is one of the toughest medium-duty cylindrical locks on the market with the proven Grade 2 security. The 7KC series is used for commercial office spaces, college dorms and military bases. The Best 7KC Series are listed by the BHMA for A156.2, Series 4000, Grade 2.

Features

  • Cylindrical chassis to fit common door preparation.
  • Through-bolt mounting studs increase torque resistance.
  • Quick rekey ing with BEST interchange able core.
  • No exposed keeper hole on keyed levers for increased security.
  • Hub torque spring provides extra resistance to lever sag
  • Snap-on inside rose (no exposed mounting screws).
  • Keyed lever is removable only after removal of core.
  • Internal steel mechanisms are corrosion treated for normal atmospheric conditions.

Call 1-800-878-6604 for Bulk / Dealer Pricing!
View full details

Details

Specifications

Lock Function Privacy
Handing Non-Handed
Levers 15 - Contour angle return design
Door Thickness 1-3/8" to 2"
Cylinder 7-Pin housing; accepts all BEST cores.
Rose D - 3-1/2"
Backset 2-3/4" standard
Latch 1/2" throw deadlocking latch. Front: 2-1/4" x 1-1/8" x 5/32" standard for 2-3/4" backset
Strike S3-ANSI, 4-7/8" x 1-1/4" with curved lip and box
Projection on Door 2-1/2"
Finish 626 - Satin Chrome
Certifications
 BHMA A156.2, Series 4000, Grade 2, UL Listed, Fired Rated
Manufacturer Warranty 3 Year Warranty
