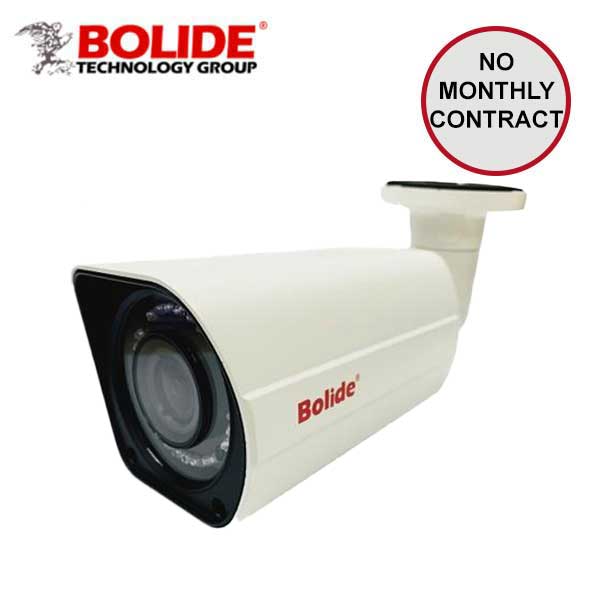

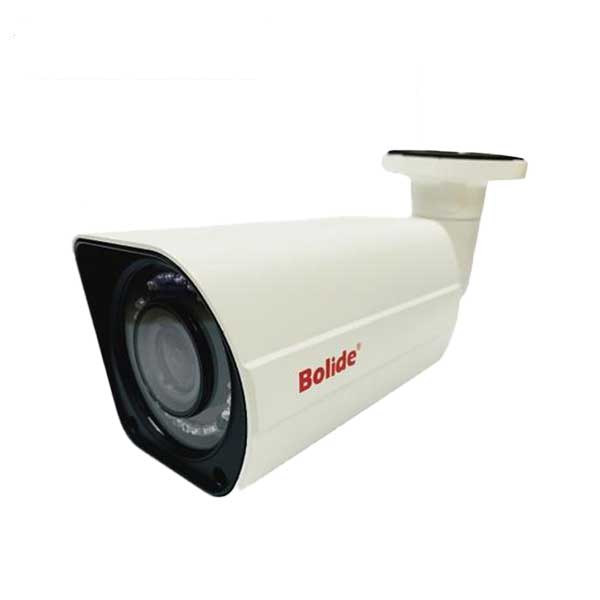

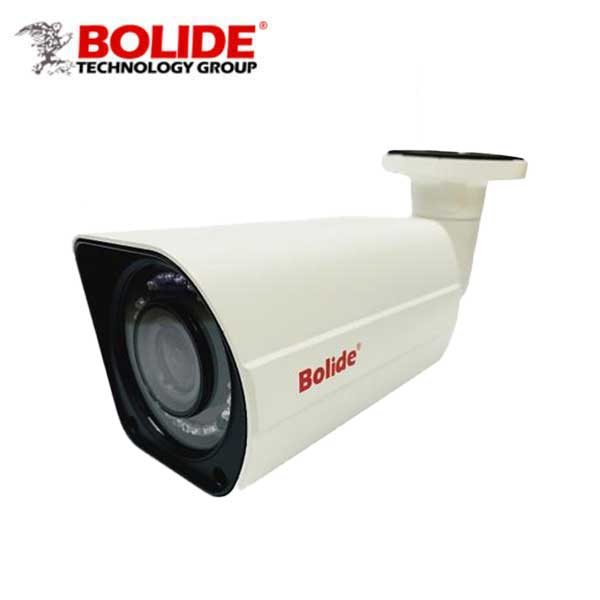

Bolide - BC1536-AHN - HDCVI / 5MP / 4MP / 2MP / Bullet Camera / Varifocal / 3.3-12mm Lens / Outdoor / IP66 / 40m IR / 12VDC / White Finish
Bolide - BC1536-AHN - HDCVI / 5MP / 4MP / 2MP / Bullet Camera / Varifocal / 3.3-12mm Lens / Outdoor / IP66 / 40m IR / 12VDC / White Finish
Bolide - BC1536-AHN - HDCVI / 5MP / 4MP / 2MP / Bullet Camera / Varifocal / 3.3-12mm Lens / Outdoor / IP66 / 40m IR / 12VDC / White Finish
Bolide - BC1536-AHN - HDCVI / 5MP / 4MP / 2MP / Bullet Camera / Varifocal / 3.3-12mm Lens / Outdoor / IP66 / 40m IR / 12VDC / White Finish
Bolide - BC1536-AHN - HDCVI / 5MP / 4MP / 2MP / Bullet Camera / Varifocal / 3.3-12mm Lens / Outdoor / IP66 / 40m IR / 12VDC / White Finish
Bolide - BC1536-AHN - HDCVI / 5MP / 4MP / 2MP / Bullet Camera / Varifocal / 3.3-12mm Lens / Outdoor / IP66 / 40m IR / 12VDC / White Finish
Bolide - BC1536-AHN - HDCVI / 5MP / 4MP / 2MP / Bullet Camera / Varifocal / 3.3-12mm Lens / Outdoor / IP66 / 40m IR / 12VDC / White Finish

Bolide - BC1536-AHN - HDCVI / 5MP / 4MP / 2MP / Bullet Camera / Varifocal / 3.3-12mm Lens / Outdoor / IP66 / 40m IR / 12VDC / White Finish

$152.85 $222.50
Availability: Available
Wishlist
  • Product SKU: BOL-BC1536-AHN
  • NSID: 23401
  • BOL-BC1536-AHN

    The new BOL-BC1536-AHN supports 9 different video formats. Using the Quickswitch joystick built-in to the camera chord, the user can switch between AHD, TVI, CVI, and analog modes. After accessing the on-screen display via DVR or camera, the camera can be set to support 5MP, 4MP, and 2MP resolutions to make it the most supported HD over coax camera in the market.

    Features:

    • 1/2.7" CMOS
    • 3.3 – 12mm Varifocal Lens
    • 5MP / 4MP / 2MP
    • AHD / TVI / CVI / Analog
    • IR Distance up to 40m
    • Control Over Coax, OSD, Quickswitch


    $152.85
    Get it shipped
    Today!
    Order within
    00 Hrs
    00 Mins
    00 Secs

Specifications:

Image Sensor 1 / 2.7” CMOS
Resolution 2560 (H) x 1920 (V)
1920 (H) x 1080 (V)
Effective Pixels 5MP / 4MP / 2MP
Focal Length 3.3 – 12mm Varifocal Lens
IR Distance 24pcs Flux IR Up to 130 Feet
Output Mode AHD / TVI / CVI / Analog
Min. Illumination Color: 0.1 Lux White / Black
0.1 Lux ( with IR LED On )
AGC Auto
WB Auto
AES NTSC: 1/60s ~ 1/10000s
PAL: 1/50s ~ 10000s
D/N Conversion ICR Mechanical Switch
Contrast 10 Level Can Be Adjusted
Sharpness 20 Level Can Be Adjusted
Saturation 20 Level Can Be Adjusted
DNR 15 Level Can Be Adjusted
Video System NTSC
DWDR ON/OFF
S/N Ratio More than 48 dB
Storage Temp. -40ºC ~ 140º C
Operating Temp. -40ºC ~ 131º C
Power Supply 12VDC
Weight (lb) 1.8 lbs


Downloads:

BOL-BC1536-AHN

The new BOL-BC1536-AHN supports 9 different video formats. Using the Quickswitch joystick built-in to the camera chord, the user can switch between AHD, TVI, CVI, and analog modes. After accessing the on-screen display via DVR or camera, the camera can be set to support 5MP, 4MP, and 2MP resolutions to make it the most supported HD over coax camera in the market.

Features:

  • 1/2.7" CMOS
  • 3.3 – 12mm Varifocal Lens
  • 5MP / 4MP / 2MP
  • AHD / TVI / CVI / Analog
  • IR Distance up to 40m
  • Control Over Coax, OSD, Quickswitch

Specifications:

Image Sensor 1 / 2.7” CMOS
Resolution 2560 (H) x 1920 (V)
1920 (H) x 1080 (V)
Effective Pixels 5MP / 4MP / 2MP
Focal Length 3.3 – 12mm Varifocal Lens
IR Distance 24pcs Flux IR Up to 130 Feet
Output Mode AHD / TVI / CVI / Analog
Min. Illumination Color: 0.1 Lux White / Black
0.1 Lux ( with IR LED On )
AGC Auto
WB Auto
AES NTSC: 1/60s ~ 1/10000s
PAL: 1/50s ~ 10000s
D/N Conversion ICR Mechanical Switch
Contrast 10 Level Can Be Adjusted
Sharpness 20 Level Can Be Adjusted
Saturation 20 Level Can Be Adjusted
DNR 15 Level Can Be Adjusted
Video System NTSC
DWDR ON/OFF
S/N Ratio More than 48 dB
Storage Temp. -40ºC ~ 140º C
Operating Temp. -40ºC ~ 131º C
Power Supply 12VDC
Weight (lb) 1.8 lbs
