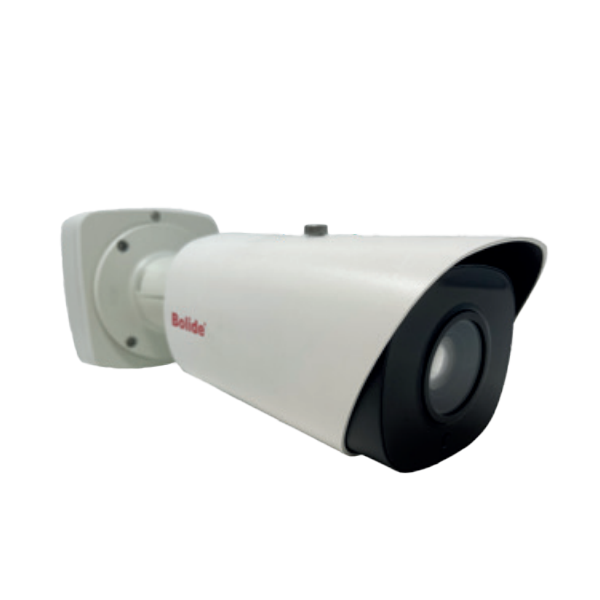

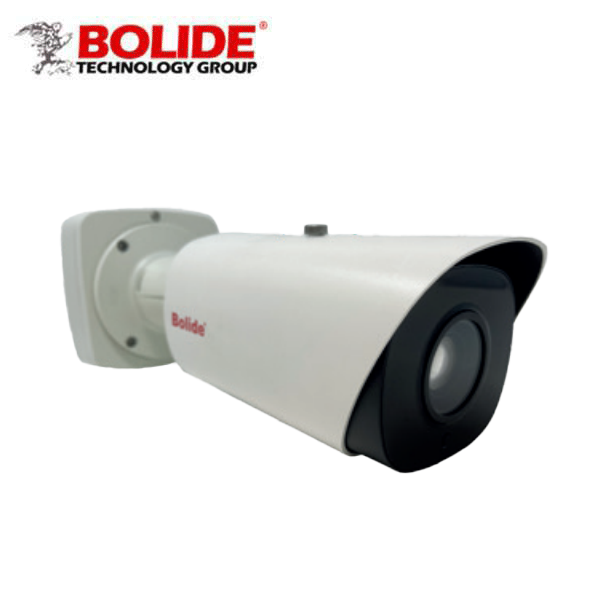

Bolide License Plate Recognition 5Mp Camera License plate recognition (LPR) cameras are specialized surveillance units designed to detect, capture and log vehicle license plates.
Features:
Specifications:
Camera | |
---|---|
Image Sensor | 1/2.8" Progressive Scan CMOS |
Min. Illumination | Color: 0.002Lux@F1.2 Color: 0.005Lux@F1.4 B/W: 0Lux with IR on |
WDR |
140db Super WDR |
Shutter Time |
1/100000s~1s |
IR Distance | Up to 65m |
Day and Night mode | Day/Night/Auto/Customize/Schedule |
S/N |
>55dB |
Lens | |
Lens |
Motorized 2.7~13.5mm |
Field of View |
H113º~H33º/D130º~D38º/V60º~V18º (2.7~13.5mm) |
Mount |
Φ14 |
Focus Control | Auto/Manual |
Iris Control (Optional for I Series) | Auto/Manual |
LPR | |
Max Vehicle Speed |
200km/h |
Recognition accuracy |
>95% |
Coverage |
Support Simultaneous detection of 4 regions |
White/Black List | Up to 1000 records inside the camera |
Smart Traffic Detection | License plate recognition, plate type classification, plate color recognition, vehicle type classification, vehicle color recognition, Vehicle direction detection |
Video | |
Max Image Resolution | 1920x1080 |
Primary Stream | 60Hz: 100fps @ (1920x1080), |
Secondary Stream | 50Hz: 50fps @(704x576, 640x480, 640x360, 352x288, 320x240, 320×192, 320x180) |
Tertiary Stream | 60Hz: 30fps@(1920×1080, 1280×720, 704×576, 640×480, 640x360, 320×240, 320×192, 320x180) 50Hz: 25fps@(1920×1080, 1280×720, 704x576, 640x480, 640×360, 320×240, 320x192, 320×180) |
Video Compression | Н.265+/H.265(HEVC//H.264+/H.264/MUPEG |
Video Bit Rate | 16Kbps-16Mbps|CBR/VBR Adjustable) |
Privacy Masking | Up to 28 areas(24 maskareas and 4 mosaicareas) |
ROI | Upto 8 areas |
Image Setting | Brightness/Contrast/Saturation/Sharpness |
Interface | |
Ethernet | 1 RJ45 10M/100M Ethernet Port |
Audio I/O | 1/1 |
Alarm I/O | 1/1 |
Network | |
Network Storage | NAS (Support NFS, SMB/CIFS), ANR |
Protocol | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 02.1x, QoS, IGMP, ICMP, SSL |
Audio | |
Audio Compression | G.711/AAC/G.722/G.726 |
Audio Sampling Rate |
8/16/32/44.1/48KHz |
Audio Bit Rate |
16~256kbps |
Two-way Audio |
Support |
System | |
Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 256G |
Advanced Function | BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark |
SIP/VoIP Support | Yes, Voice & Video-over-IP |
Event Trigger | Black/White List, Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. |
Event Action | FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc. |
System Compatability | ONVIF Profile G& Q& S & T, API |
General | |
Working Temperature | -40°C ~ 60°C |
Working Humidity | 0~90% (Non-condensing) |
Power Supply | PoE (802.3at) / DC 12V+10% |
Power Consumption | 8W MAX 16W MAX (With IR on) |
Weather Proof | Up to IP67-rated for Weather-resistant Performance |
Housing | Vandal-proofIK10-rated Metal Housing |
Weight | 1630g |
Dimensions | 320mmX134mmX126mm |
Manufacturer Warranty | 3/5 Years |
