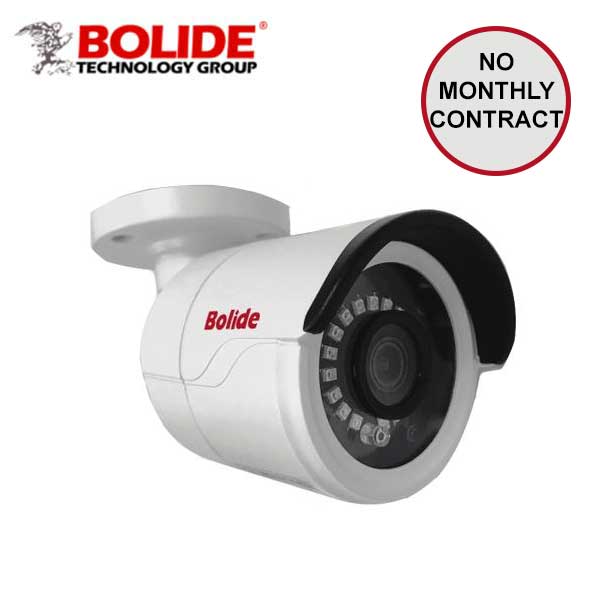

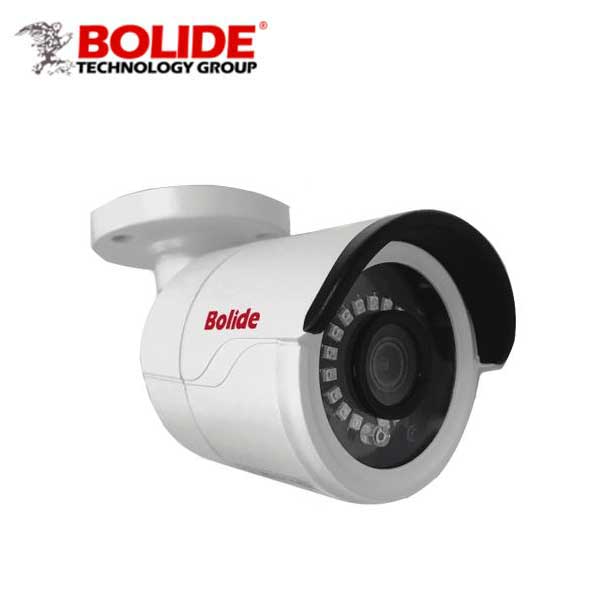

Bolide - BN8035 - IP / 5MP / Bullet Camera / Fixed / 3.6mm Lens / Outdoor / WDR / IP67 / 22.8m IR / PoE / BOL-BN8035-NDAA
- Product SKU: BOL-BN8035-NDAA
-
BOL-BN8035-NDAA
The new Ipac N series features up to 5 Mega Pixels of stunning Ultra HD resolution combined with the Next Generation of compression standards High-Efficiency Video Coding (HEVC /H.265)- which allows for bitrates nearly half those of other cameras utilizing older H.264 compression technology. The iPac NX series offers double the storage and half of the bandwidth requirements without sacrificing resolution or frame rate.
Features:
- 1/3” Progressive Scan CMOS
- Compression H.265 / H.264
- Built-In POE
- IR Distance up to 75ft
- 3.6 mm Lens
Specifications:
| Image Sensor: | 1/3” Progressive Scan CMOS |
| Min. Illumination: | 0.01Lux, 0.02Lux, 0 Lux with IR |
| Shutter Speed: | 1/5 s- 1/20,000 s |
| Lens Type: | 3.6mm |
| Lens Mount: | M12 |
| Day and Night: | IR Cut Filter with Auto Switch |
| Dynamic Range: | Wide Dynamic Range |
| Digital Noise Reduction: | 2D / 3D DNR |
| Video Compression: | H.265 / H.264 / MJPEG |
| Image Resolution: | Up to 5MP (2592 X 1520) |
| Video Bit Rate: | 256K-8M |
| Frame Rate: | 5MP (2560 X 1920) @ 15fps - QVGA (320 X 240) @1-30 fps |
| System Compatibility: | ONVIF 2.4, RTSP |
| Interface: | 1 RJ45 10M / 100M Ethernet Interface |
| IR Distance: | Up to 75 ft. |
| POE: | Built in Power over Ethernet |
| Security: | Flash-Prevention, Dual Stream, Heartbeat, Mirror, Password Protection, Privacy Mask, IP Address Filtering |
| Power Supply: | 12 VDC ± 10%, POE (802.3af) |
| Power Consumption: | Max. 5 W (Max. 7W with IR cut filter on) |
| Operating Temp: | -22 °F - 140 °F Humidity 95% or less (non-condensing) |
| Dimensions: | 5.7” x 2.7” x 2.8” |
| Weather Rated: | IP67 Rated |
Downloads:
BOL-BN8035-NDAA
The new Ipac N series features up to 5 Mega Pixels of stunning Ultra HD resolution combined with the Next Generation of compression standards High-Efficiency Video Coding (HEVC /H.265)- which allows for bitrates nearly half those of other cameras utilizing older H.264 compression technology. The iPac NX series offers double the storage and half of the bandwidth requirements without sacrificing resolution or frame rate.
Features:
- 1/3” Progressive Scan CMOS
- Compression H.265 / H.264
- Built-In POE
- IR Distance up to 75ft
- 3.6 mm Lens
Specifications:
| Image Sensor: | 1/3” Progressive Scan CMOS |
| Min. Illumination: | 0.01Lux, 0.02Lux, 0 Lux with IR |
| Shutter Speed: | 1/5 s- 1/20,000 s |
| Lens Type: | 3.6mm |
| Lens Mount: | M12 |
| Day and Night: | IR Cut Filter with Auto Switch |
| Dynamic Range: | Wide Dynamic Range |
| Digital Noise Reduction: | 2D / 3D DNR |
| Video Compression: | H.265 / H.264 / MJPEG |
| Image Resolution: | Up to 5MP (2592 X 1520) |
| Video Bit Rate: | 256K-8M |
| Frame Rate: | 5MP (2560 X 1920) @ 15fps - QVGA (320 X 240) @1-30 fps |
| System Compatibility: | ONVIF 2.4, RTSP |
| Interface: | 1 RJ45 10M / 100M Ethernet Interface |
| IR Distance: | Up to 75 ft. |
| POE: | Built in Power over Ethernet |
| Security: | Flash-Prevention, Dual Stream, Heartbeat, Mirror, Password Protection, Privacy Mask, IP Address Filtering |
| Power Supply: | 12 VDC ± 10%, POE (802.3af) |
| Power Consumption: | Max. 5 W (Max. 7W with IR cut filter on) |
| Operating Temp: | -22 °F - 140 °F Humidity 95% or less (non-condensing) |
| Dimensions: | 5.7” x 2.7” x 2.8” |
| Weather Rated: | IP67 Rated |
