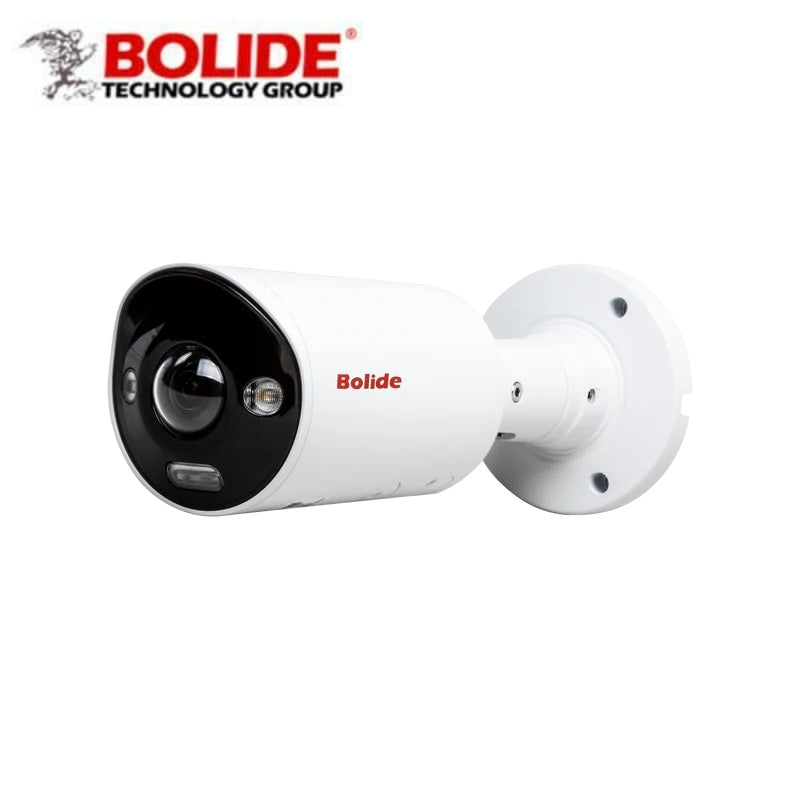

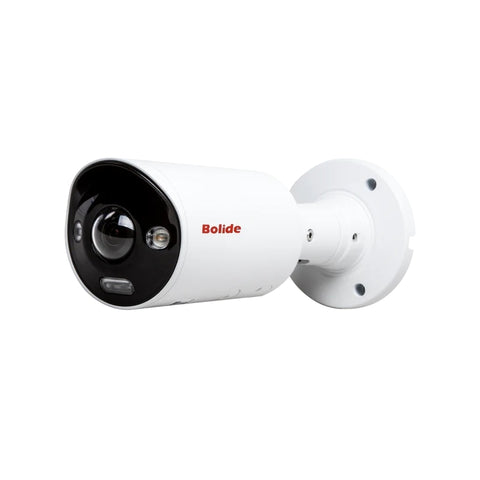

*Discontinued* Bolide - BN9135-PN - H.265 8MP (4K) / 180 Degree Panoramic Bullet Camera / 2.0mm Panoramic Lens / IP67 / 98 Feet IR / Two-Way Audio / 12VDC / MicroSD Slot Up to 256GB / POE / iPac AI Enabled with Facial Recognition System / NDAA Compliant
Out of Stock
SKU:
BOL-BN9135-PN
NSID:
78633
- $622.00
-
- $622.00
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
The BOL‑BN9135‑PN offers ultra-wide 180° coverage with a single panoramic 2.0 mm lens, capturing crisp 8 MP 4K video. It features powerful night vision with both warm‑light color and IR support, alongside built-in analytics and durable outdoor protection. Designed for high‑security environments, it integrates easily with industry-standard systems and supports both PoE and 12 VDC power.
- $622.00
-
- $622.00
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Description
x| Detailed Specifications | |
|---|---|
| Optics & Imaging | |
| Image Sensor | 1/2.8″ Progressive CMOS |
| Lens | 1.68 mm fixed panoramic lens @ F2.0, M12 mount |
| Illumination | Color: 0.01 Lux @ F1.2; 0.012 Lux @ F2.0 B/W: 0 Lux with IR |
| IR Range | Up to 98 ft |
| Day/Night | IR-cut filter with auto-switch |
| Dynamic Range | 120 dB Super WDR |
| Noise Reduction | 2D/3D DNR |
| Video & Compression | |
| Max Resolution | 8 MP (3840 × 2160) |
| Frame Rates | 3840×2160 @ 25 fps (60 Hz) 3456×1936, 3200×1800, 2880×1624, 2560×1440, 1920×1080, 1280×720 @ 25/30 fps |
| Compression Formats | H.265+, H.265, H.264, MJPEG |
| Bit Rate | 16 Kbps–16 Mbps |
| Networking & Interface | |
| Ethernet | 1 × RJ45 10/100 Mbps |
| Power Options | PoE (802.3af) or 12 VDC ±10% |
| Power Consumption | Max 6 W (idle), 9 W (IR active) |
| Audio & Storage | |
| Microphone & Speaker | Two-way communication |
| Local Storage | MicroSD slot (supports up to 256 GB) |
| Analytics & Intelligence | |
| Human and vehicle detection Line-cross detection Foot traffic heat map Rare sound detection Stationary object detection |
|
| Environmental & Mechanical | |
| Operating Temp | –40 °F to 140 °F; ≤95% RH (non‑condensing) |
| Weather/Vandal Resistance | IP67 and IK10 rated |
| Dimensions | 3.77″ × 2.91″ × 6.24″ |
| Net Weight | 1.38 lbs |
| Compatibility & Standards | |
| Protocols | ONVIF Profiles G/Q/S/T, API support |
