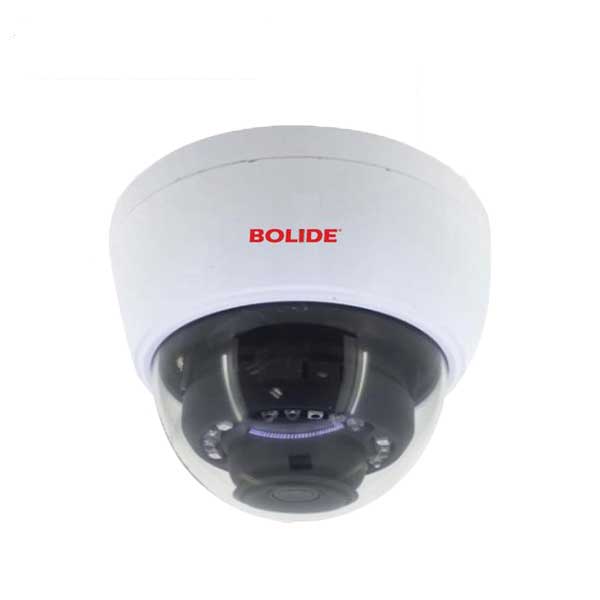

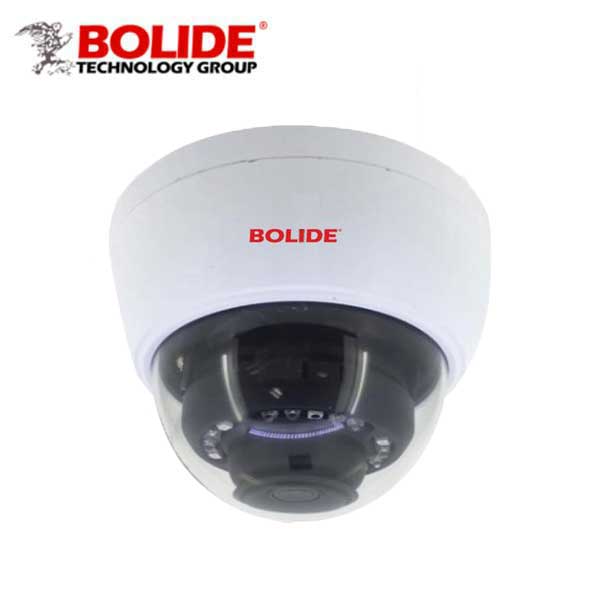

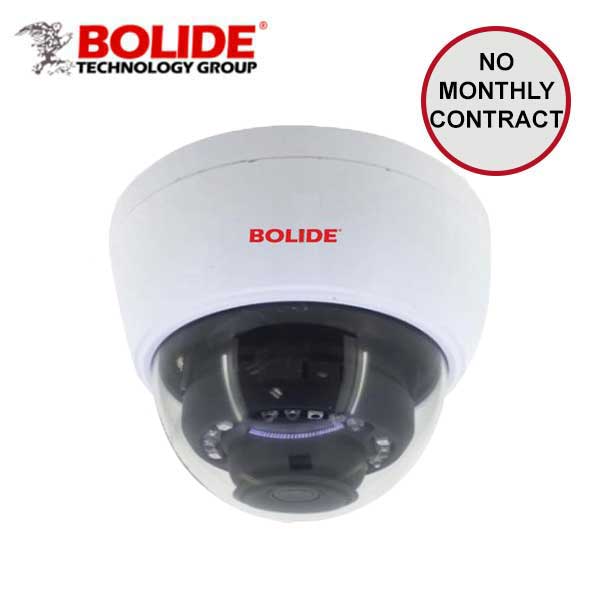

Bolide - BOL-BC1509AIR - HDCVI / 5MP / 4MP / Dome Camera / Fixed / 2.8mm Lens / Vandal-Proof / Outdoor / IP66 / 20m IR / 12VDC / White Finish
Available to Order
SKU:
BOL-BC1509AIR
NSID:
23407
The new supports 9 different video formats. Using the Quickswitch joystick built-in to the camera chord, the user can switch between AHD, TVI, CVI, and analog modes. After accessing the on-screen display via DVR or camera, the camera can be set to support 5MP resolution to make it the most supported HD over coax camera in the market.
Features:
- 1/3" CMOS
- 2.8mm Lens Fixed Lens
- 5MP
- AHD / TVI / CVI / CVBS ( Analog ) Compatible
12VDC - Control Over Coax, OSD, Quickswitch
Specifications:
| Image Sensor | 1 / 3” CMOS |
| Effective Pixels | 2560 (H) x 1920 (V) 1920 (H) x 1080 (V) |
| Resolution | 5MP / 4MP / 1080P / 960H |
| Signal System | NTSC / PAL |
| Sync System | Internal Sync |
| Video Output | AHD / TVI / CVI / CVBS ( Analog ) Compatible |
| S/N Ratio | 48Db ( min ) AGC ( closed ) |
| Dimension | 80mm x 94 mm |
| Lens | Manual |
| Power Input | 12VDC |
| Power Dissipation | 88mA – 93mA |
| Transmission Distance | 300 M |
| Working Temperatur | -40° ~ 60° C |
| Humidity | Less Than 85% RH |
| Storage Temperature | -40° ~ 60° C |
