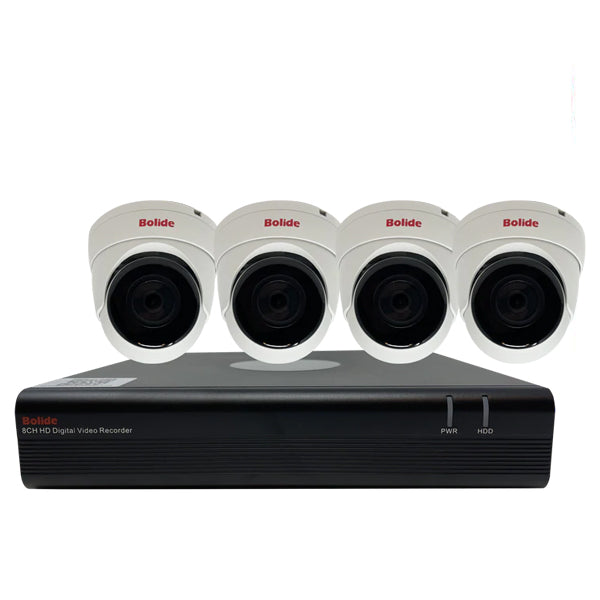

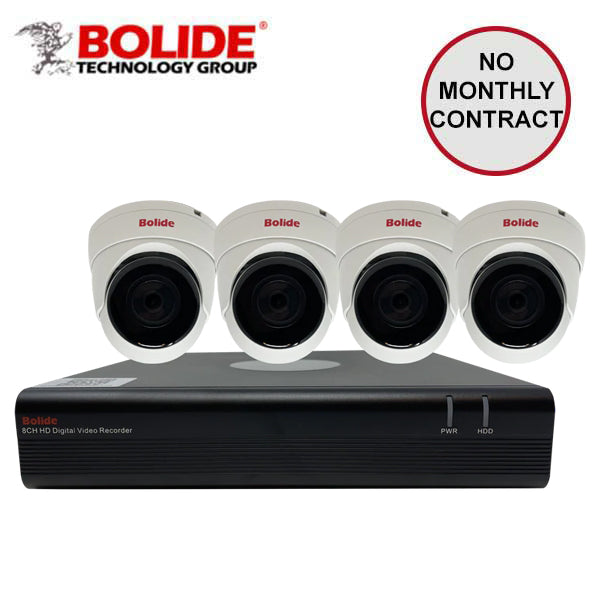

Bolide / Hybrid DVR Kit / 8 Channel / Control Over Coax / 4 x 2MP Mini Turret / 1080p / 1TB HDD / BK-KIT8-4 - UHS Hardware
Bolide / Hybrid DVR Kit / 8 Channel / Control Over Coax / 4 x 2MP Mini Turret / 1080p / 1TB HDD / BK-KIT8-4 - UHS Hardware

Bolide / Hybrid DVR Kit / 8 Channel / Control Over Coax / 4 x 2MP Mini Turret / 1080p / 1TB HDD / BK-KIT8-4

Available to Order
SKU: BOL-BK-KIT8-4
NSID: 36306

Please Note: This product has a lead time

$299.99
$358.80
$299.99

  • 8-Channel Inputs
  • H.265/H.264 Video Compression
  • IP Hybrid DVR, Supports AHD / TVI / CVI/ CVBS Analog Formats
  • Records Up to 2MP, 1080p Output
  • HDMI and VGA Outputs
  • 4-Channel Audio In / 1-Channel Audio Out
  • 1 SATA Port supporting up to 12TB
  • 1TB Hard Drive Included
  • PTZ Control

Call 1-800-878-6604 for Bulk / Dealer Pricing!

    Cameras Specifications:

    Image Sensor: 1 / 3” CMOS
    Effective Pixels: 1920 (H) x 1080 (V)
    Resolution: 1080P
    Signal System: NTSC / PAL
    Sync System: Internal Sync
    Video Output: AHD / TVI / CVI / CVBS ( Analog ) Compatible
    Audio: Yes, Built-in Mic ( TVI Mode Only )
    Dimension: 3.93 in x 3.54 in
    Lens: 2.8mm Fixed Lens
    Power Input: 12VDC
    Power Consumption: IR OFF ≤0.5W, IR ON ≤3.5W
    Remote Interface:
    ACD ( AHD Coax Protocol )
    Working Temperature: -22° ~ 122° F
    Weather Rating: IP66
    Weight:
    0.7lb

    DVR Specifications:

    Record Resolution: 1080N / 720P / 960H
    IP: 1080P / 720P
    Single IP Channel Preview Up to 2MP 30FPS Multi-Channel, Preview Only Sub-Stream
    Record Speed: Main Stream:
    1080N ( 960x1080 ): 30FP
    720P: 30FPS / Channel
    IP: PAL: 25FPS / Channel
    NTSC: 30FPS / Channel
    Sub-Stream:
    PAL:704x576: 10FPS/Channel
    NTSC:704x480:10FPS/Channel
    Display Resolution: VGA: 1024x768,1280x720, 1280x1024, 1440x900, 1920x1080
    HDMI: 1024x768,1280x720, 1280x1024, 1440x900, 1920x1080, 2560x1440, 3840x2160
    Feature: Single/Quad/S.E.Q/
    Video Compression: H.265 / H.264
    Video System: NTSC/PAL
    Operating System: Embedded Linux
    Analog Video Input/Output: 8-Channel BNC / HDMI Output
    Video Input: IP: Up to 2-Channels
    Composite: Up to 10 Channels ( Analog & IP )
    Audio Input/Output: None, Audio Over Coax Only ( Cameras Must Be Set to TVI Mode )
    Recording Bandwidth:
    IP: 8Mbps
    Recording Mode: Continuous / Manual / Motion Detection / Alarm / Video Analytics
    Simultaneous Playback: Up to 4 Channels
    Network Type: LAN, DHCP
    HDD Interface: 1 SATA HDD, up to 12TB
    USB: 2x USB 2.0 ( Front )
    PTZ Control: Control Over Coax, RS-485
    Mobile Surveillance: Bolide Quick Connect on iOS / Android
    Power Supply:
    DC12V / 2A
    Dimension: 9.05" x 8.46" x 1.85"
    Working Temperature: 32°F~+104°F
    Working Humidity: 10%~90%
    Humidity: 10% ~ 90% Humidity
    Dimension: 300 x 227 x 53mm (11.8 x 8.9 x 2.1in)

    Downloads:
