*Discontinued* Bolide - IP / 12MP / Fisheye Camera / Fixed / 1.8mm Lens / WDR / 10m IR / 360° Panoramic / 12VDC POE / IP66 / BN1208FE
*Discontinued* Bolide - IP / 12MP / Fisheye Camera / Fixed / 1.8mm Lens / WDR / 10m IR / 360° Panoramic / 12VDC POE / IP66 / BN1208FE

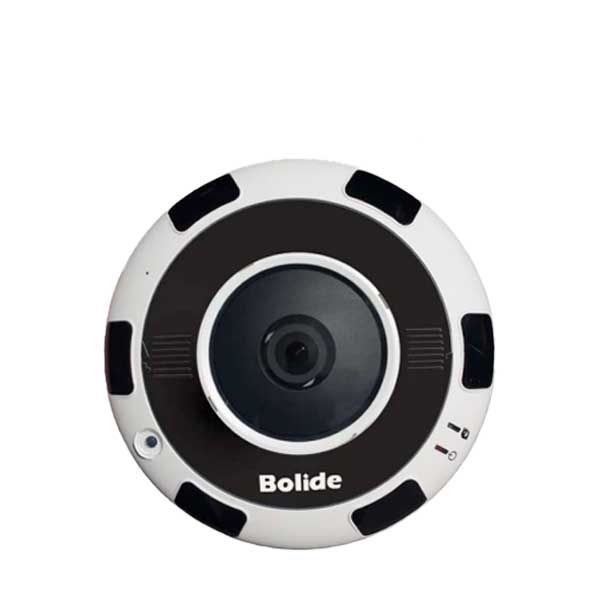

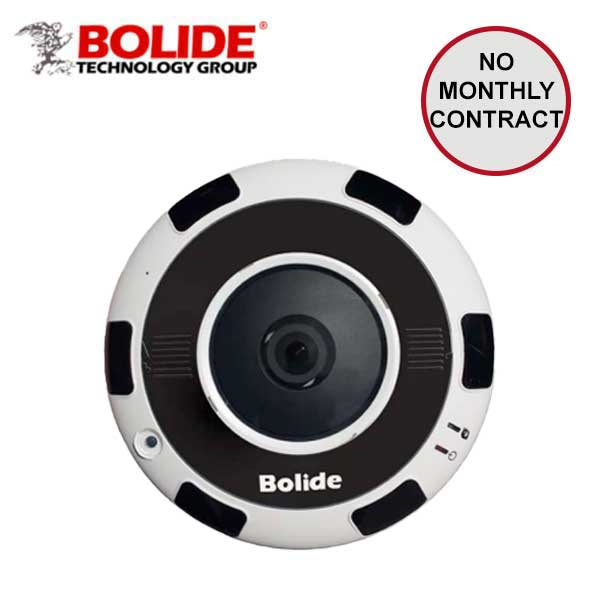

This BN1208FE is a 12MP IR Fisheye camera that has a fixed lens which allows it to take complete 360° panoramic footage. Comes with high-performance processor 12.0 mega pixel CMOS imaging sensor. Perfect for providing maneuverable surveillance, they can be used to monitor vandalism, theft, and break ins, from any angle.
- Built-in Micro SD 128GB
- 12MP Resolution
- 360° Panoramic
- WDR = 100dB
- Full Resolution
- De-Warp on Camera

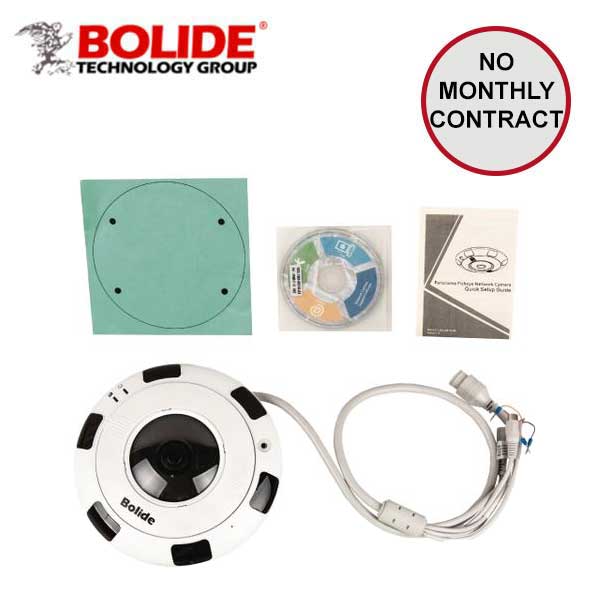

- Includes Wall-Mount Bracket
Details
Technical Specifications:
| Image Sensor: | 1/1.8" Progressive CMOS |
| Electronic Shutter: | Auto / User 1/5 - 1/10,000 ; 50/60Hz software selectable |
| Min Illumination: | 0.009 Lux B/W ( 0 Lux IR LED On) |
| Wide Dynamic Range: | WDR =100dB |
| Lens: | 12 Mega pixel 6th Gen. Fisheye 2mm lens |
| View Angle: | Field of View = 2.0 360 |
| IR Range: | Up to 10m (66ft) |
| Compression: | H.264/H.265 High/Main/Base Profile |
| Max Resolution: | 4000 x 3000 @20fps / 3072 x 3072 @30fps |
| Stream: | De-Warp with 4 modes 1P/3P/5P/7P |
| Ethernet: | 1 Ethernet (10/100 Base-T) RJ45 Connector |
| Audio Input: | Optional Microphone: 1 x RCA Input |
| Audio Output: | 1 x RCA Out- put @ 1V Line Level |
| Audio Compression: | G711 A-law, G711 u-law , RAW_PCM |
| TCP/IP: | IPv4 / IPv6 (DHCP / Fixed) 10/100 Mbps speed Full Duplex |
| Compliance: | Onvif v2.6 (Profile S) |
| RTSP Video: | Standard RFC2326, Support. Quicktime / VLC Player. User security authentication (Enabled / Disabled) |
| Simultaneous Recording: | Local Micro SD Memory, Remote FTP server, TCP/ UDP CMS, RTSP connection . |
| Power Supply: | 12V DC Terminal / PoE 802.3af |
| Power Consumption: | 5W / Max 8W (LED On) PoE Class3 |
| Protection: | IP66, IK10 |
| Dimensions: | Φ162 • 50.8 mm (Φ6.37 • 2 inch) |
