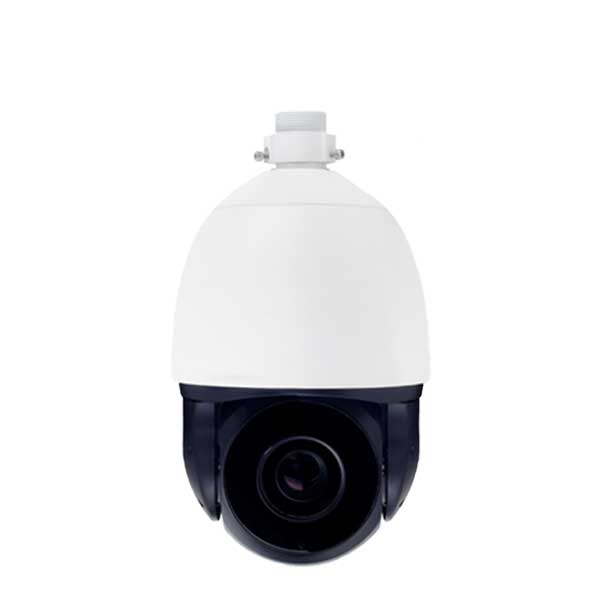

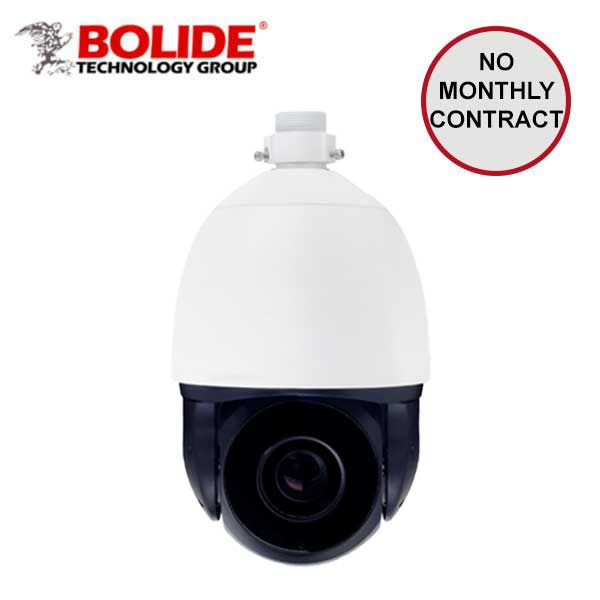

Bolide - IP / 4MP / Network PTZ Dome Camera / Varifocal / 5.3 ~ 159mm Lens / 30x Optical Zoom / WDR / Multiple Streams / Auto Tracking / 24VAC / IP67
Available to Order
SKU:
BOL-BN1009-PTZ-4.0POE
NSID:
23438
- $1,852.00
-
$2,222.40 - $1,852.00
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
This BN1009 is a 4MP IR PTZ camera that has a varifocal lens which allows it to take high quality footage even at 30x zoom. Comes with high-performance processor 4.0 mega pixel CMOS imaging sensor. Perfect for providing maneuverable surveillance, they can be used to monitor vandalism, theft, and break ins, from any angle and length.
Features:
- 1/2.8" Progressive Scan CMOS
- 3 Streams
- Built-in Micro SD 128GB
- WDR >120dB
- H.265/H.264/MJPEG
- 1920x1080/30fps
- 30x Optical Zoom
- Auto Tracking
- Includes Wall-Mount Bracket
Specifications:
| Image Sensor: | 1/2.8” Progressive Scan CMOS |
| Effective Pixels: | 2592(H) x 1520(V) |
| Electronic Shutter: | Auto/Manual, 1/5-1/20,000s |
| Min Illumination: | Color: 0.01Lux @(F1.5,AGC ON) B/W: 0Lux @(IR LED ON) |
| Wide Dynamic Range: | WDR >120dB |
| Lens: | 5.3~159mm varifocal Lens |
| Pan: | Pan: 0° ~ 360° endless |
| Tilt: | Tilt: -15° ~ +90° |
| Zoom: | Optical: 30x, Digital: 16x |
| View Angle: | H: 55°~2.3° |
| IR Range: | Up to 200m |
| Compression: | H.265, H.264, MJPEG |
| Max Resolution: | 3MP(2048×1536) |
| Stream / Frame Rate: | Stream1: 2048×1536/1920×1080/1280×720 @25/30fps Stream2: D1/VGA/640×360/CIF/QVGA @25/30fps Stream3: VGA/CIF/QVGA @25/30fps |
| Bit Rate Control: | CBR / VBR |
| Bit Rate: | Stream1: 100kbps~12Mbps Stream2: 10kbps~6Mbps Stream3: 10kbps~6Mbps |
| Audio Input/Output: | 1CH Input / 1CH Output |
| Alarm Input/Output: | 2CH Input / 1 CH Output |
| Noise Reduction: | 2D / 3D DNR |
| Audio Compression: | G.711, RAW_PCM |
| Audio Bit Rate: | 8kbps(G.711), 16kps(RAW_PCM) |
| Auto Tracking: | Supported |
| Intelligence IVS: | Perimeter, Single Virtual Fence, Double Virtual Fences, Loiter, Multi Loiter, Object Left, Object Removed, Abnormal Speed, Converse, Illegal Parking, Signal Bad |
| Power Supply: | DC12V, POE + |
| Power Consumption: | Less than 30W |
| Protection: | IP67, TVS4000V |
| Dimensions: | Φ173.2×292.6mm (φ6.82×11.52 inch) |
