*Discontinued* Bolide - IP / 5MP / Network PTZ Dome Camera / Varifocal / 4.98 ~ 199.2mm Lens / 40x Optical Zoom / WDR / Multiple Streams / Auto Tracking / 24VAC / IP67
*Discontinued* Bolide - IP / 5MP / Network PTZ Dome Camera / Varifocal / 4.98 ~ 199.2mm Lens / 40x Optical Zoom / WDR / Multiple Streams / Auto Tracking / 24VAC / IP67

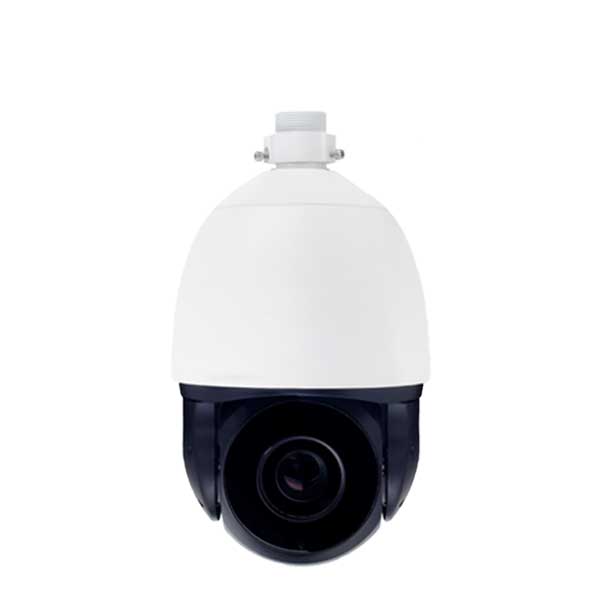

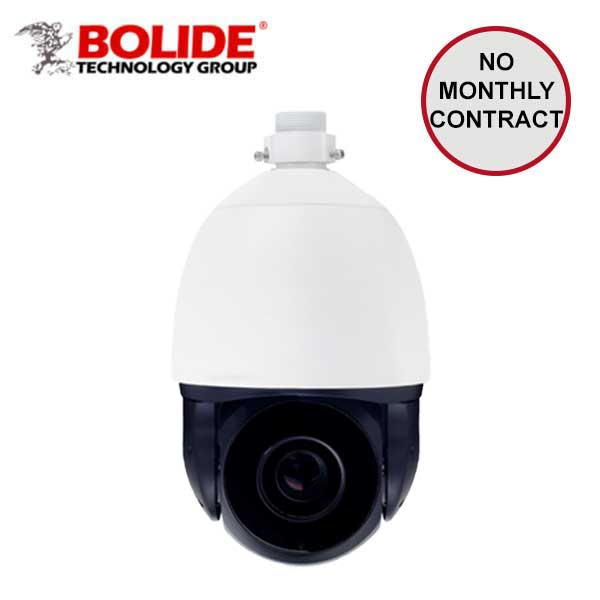

This BN1009 is a 5MP IR PTZ camera that has a varifocal lens which allows it to take high quality footage even at 40x zoom. Comes with high-performance processor 5.0 mega pixel CMOS imaging sensor. Perfect for providing maneuverable surveillance, they can be used to monitor vandalism, theft, and break ins, from any angle and length.
Features:
- 1/2.8" Progressive Scan CMOS
- 3 Streams
- Built-in Micro SD 128GB
- WDR >120dB
- H.265/H.264/MJPEG
- 1920x1080/30fps
- 40x Optical Zoom
- Auto Tracking
- Includes Wall-Mount Bracket
Details
Specifications:
| Image Sensor: | 1/2.8” Progressive Scan CMOS |
| Effective Pixels: | 2560 (H) X 1920 (V) |
| Electronic Shutter: | Auto/Manual, 1/5-1/20,000s |
| Min Illumination: | Color: 0.01Lux @(F1.5,AGC ON) B/W: 0Lux @(IR LED ON) |
| Wide Dynamic Range: | WDR >120dB |
| Lens: | 4.98 - 199.2mm varifocal Lens |
| Pan: | Pan: 0° ~ 360° endless |
| Tilt: | Tilt: -10° ~ +90° |
| Zoom: | Optical: 40x, Digital: 16x |
| View Angle: | H: 59.1'-1.8', V: 38.4'-1.1' |
| Smart IR Range: | Up to 200m |
| Compression: | H.265, H.264, MJPEG |
| Max Resolution: | 5MP (2560•1920) |
| Stream / Frame Rate: | Stream1: 2560•1920 @ 20fps, 2048•1536/1280•960 @25130fps Stream2: D1NGA/640•360/CIF/QVGA@ 25/30fps Stream3: VGA/CIF/QVGA@ 25/30fps |
| Bit Rate Control: | CBR / VBR |
| Bit Rate: | Stream1: 200kbps-12Mbps Stream2: 10kbps-6Mbps Stream3: 10kbps-3Mbps |
| Ethernet: | 1 Ethernet (10/100 Base-T) RJ-45 Connector |
| Audio Input/Output: | 1CH Input / 1CH Output |
| Alarm Input/Output: | 7CH Input / 2 CH Output |
| Noise Reduction: | 2D / 3D DNR |
| Audio Compression: | G.711, RAW_PCM |
| Audio Bit Rate: | 8kbps(G.711), 16kps(RAW_PCM) |
| Auto Tracking: | Supported |
| Intelligence IVS: | Perimeter, Single Virtual Fence, Double Virtual Fences, Loiter, Multi Loiter, Object Left, Object Removed, Abnormal Speed, Converse, Illegal Parking, Signal Bad |
| Power Supply: | AC24V/Hi-POE (Adapter optional) |
| Power Consumption: | Less than 40 W |
| Protection: | IP67, TVS4000V |
| Dimensions: | Φ226 • 362.8 mm (Φ8.9 • 14.28 inch) |
