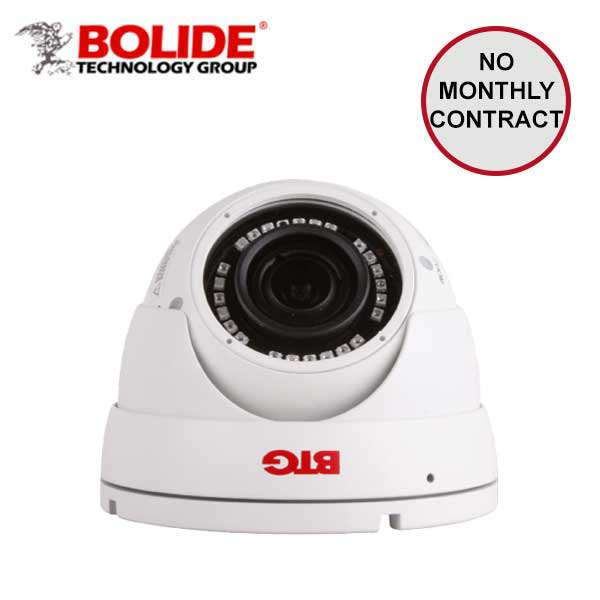

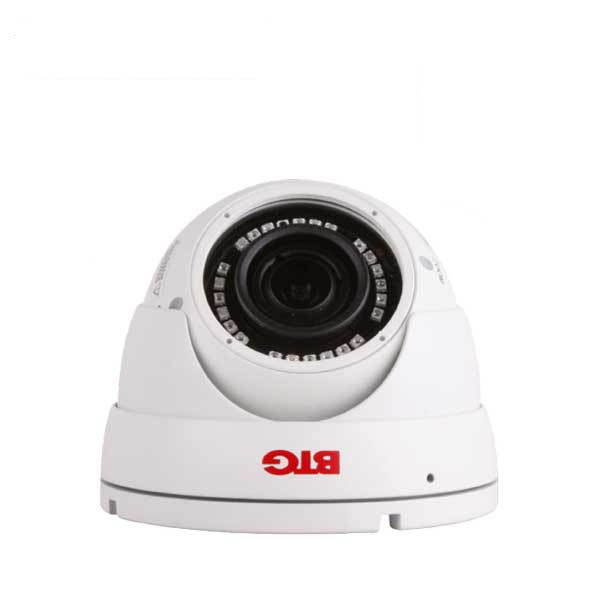

Bolide - N1509 - IP / 5MP / Eyeball Camera / Fixed / 2.8mm Lens / IP66 / 20m IR / DC12V PoE / White Finish
Bolide - N1509 - IP / 5MP / Eyeball Camera / Fixed / 2.8mm Lens / IP66 / 20m IR / DC12V PoE / White Finish
Bolide - N1509 - IP / 5MP / Eyeball Camera / Fixed / 2.8mm Lens / IP66 / 20m IR / DC12V PoE / White Finish
Bolide - N1509 - IP / 5MP / Eyeball Camera / Fixed / 2.8mm Lens / IP66 / 20m IR / DC12V PoE / White Finish
Bolide - N1509 - IP / 5MP / Eyeball Camera / Fixed / 2.8mm Lens / IP66 / 20m IR / DC12V PoE / White Finish

Bolide - N1509 - IP / 5MP / Eyeball Camera / Fixed / 2.8mm Lens / IP66 / 20m IR / DC12V PoE / White Finish

$141.60 $169.92
Availability: Available
Wishlist
  • Product SKU: BOL-BTG-N1509-2.8
  • NSID: 23458
  • BOL-BTG-N1509-2.8

    The new N1509 is a 5MP IR Eyeball network camera that has a fixed lens which allows it to take high quality footage up to 20m (65ft). Comes with high-performance processor 5.0 mega pixel CMOS imaging sensor, and is IP66 waterproof. Perfect for places with high activity, and Its super easy to install.

    Features:

    • Using high-performance processor 5.0 mega pixel CMOS imaging sensor
    • Supports 5mp (2592*1944) 15fps monitoring
    • Using linux embedded OS, low power consumption, steady and credible
    • Using h.265+, h265 encoding, high compression ratio and lower stream
    • Supports ICR automatic switchover, achieve round-the-clock monitoring
    • Supports network interrupt, IP conflict, motion detection, video blind smart alarm
    • Supports abnormal automatic recovery and network interrupt auto-reconnect functionality
    • Supports watermark encryption, prevents data tampering
    • Support DC12V/PoE, easy to install
    • Supports IP66 waterproofing grade
    • Supports anti-static and surge
    • Supports ONVIF protocol access
    • SDK development kit provided, allows access to other video management platforms



    $141.60
    Get it shipped
    Today!
    Order within
    00 Hrs
    00 Mins
    00 Secs

Specifications:

Type Fixed focal lens
Image Sensor 1/2.7” 5MP Progressive Scan CMOS
Resolution 2592 x 1944
Electronic Shutter Manual / automatic adjustment, 1/25 sec to 1/10000 sec
Min illumination 0. 1Lux@F1.2(color mode); 0.01Lux@F1.2(black and white)
IR Distance 20mm (65ft)
Focal Length 2.8mm
Video Compression
H.265+/H.265/H.264
Video Bit Rate
8kbps~32Mbps, Customizable
Video frame rate Main Stream (2592*1944@15fps), secondary stream (D1@25fps)
Recording mode Manual recording, time recording, recording
descending order of priority: manual/timing
Network interface 1 RJ45 10/100M Ethernet interface
Network protocol Support TCP/IP/HTTP/RTSP/FTP/PPPOE/RTCP /SMTP/DHCP/DDNS/NTP/UPnP/SNMP
Access standard ONVIF
Power Supply DC12V/POE
Power consumption 10W Max
Working Temp. -20°C ~ 55°C
Working Humidity ≤95%
Protection Class IP66
Material Metal
Mounting Wall Ceiling


Downloads:

BOL-BTG-N1509-2.8
