*Discontinued* Bolide - N1509 - IP / 5MP / Eyeball Camera / Vari-Focal / 2.8-12mm Lens / IP66 / 20-35m IR / DC12V PoE / White Finish

*Discontinued* Bolide - N1509 - IP / 5MP / Eyeball Camera / Vari-Focal / 2.8-12mm Lens / IP66 / 20-35m IR / DC12V PoE / White Finish

Discontinued
SKU BOL-BTG-N1509IRODVA-W NSID 23459
$194.40

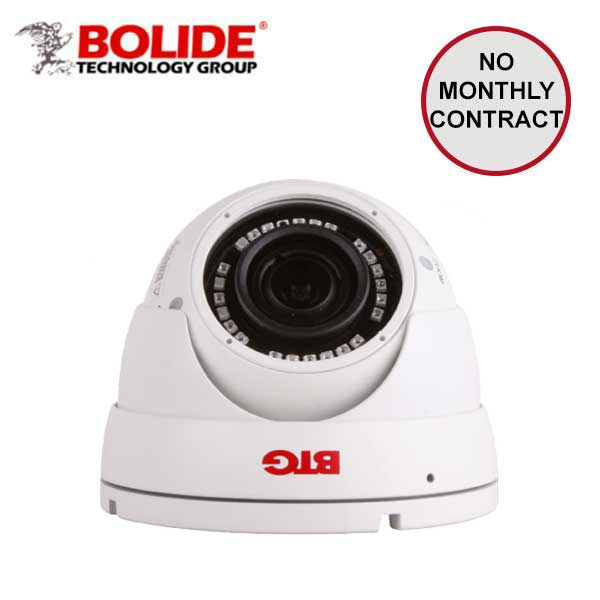

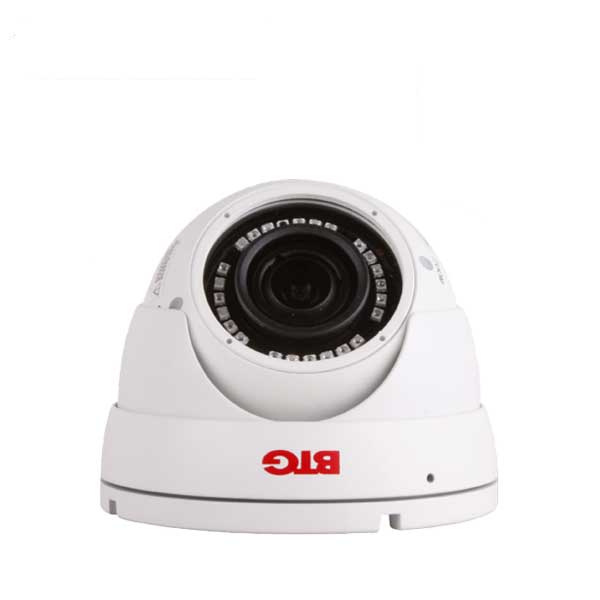

The new N1509 is a 5MP IR Eyeball network camera that has a Vari-Focal lens which allows it to take high quality footage at any range. Comes with high-performance processor 5.0 mega pixel CMOS imaging sensor, and is IP66 waterproof. Perfect for places with high activity, this camera is made for tough situations. It will record no matter what is thrown at it. And, Its super easy to install.

Features:

  • Using high-performance processor 5.0 mega pixel CMOS imaging sensor
  • Supports 5mp (2592*1944) 15fps monitoring
  • Using linux embedded OS, low power consumption, steady and credible
  • Using h.265+, h265 encoding, high compression ratio and lower stream
  • Supports ICR automatic switchover, achieve round-the-clock monitoring
  • Supports network interrupt, IP conflict, motion detection, video blind smart alarm
  • Supports abnormal automatic recovery and network interrupt auto-reconnect functionality
  • Supports watermark encryption, prevents data tampering
  • Support DC12V/PoE, easy to install
  • Supports IP66 waterproofing grade
  • Supports anti-static and surge
  • Supports ONVIF protocol access
  • SDK development kit provided, allows access to other video management platforms


View full details

Details

Specifications:

Type Manual Variable Focal lens
Image Sensor 1/2.5” 5MP Progressive Scan CMOS
Resolution 2592 x 1944
Electronic Shutter Manual / automatic adjustment, 1/25 sec to 1/10000 sec
Min illumination 0. [email protected](color mode); [email protected](black and white)
IR Distance 20-35m (65-115ft)
Focal Length 2.8-12mm
Video Compression
 H.265+/H.265/H.264
Video Bit Rate
 8kbps~32Mbps, Customizable
Video frame rate Main Stream (2592*1944@15fps), secondary stream (D1@25fps)
Recording mode Manual recording, time recording, recording
descending order of priority: manual/timing
Network interface 1 RJ45 10/100M Ethernet interface
Network protocol Support TCP/IP/HTTP/RTSP/FTP/PPPOE/RTCP /SMTP/DHCP/DDNS/NTP/UPnP/SNMP
Access standard ONVIF
Power Supply DC12V/POE
Power consumption 12W Max
Working Temp. -20°C ~ 55°C
Working Humidity ≤95%
Protection Class IP66
Material Metal
Mounting Wall Ceiling
