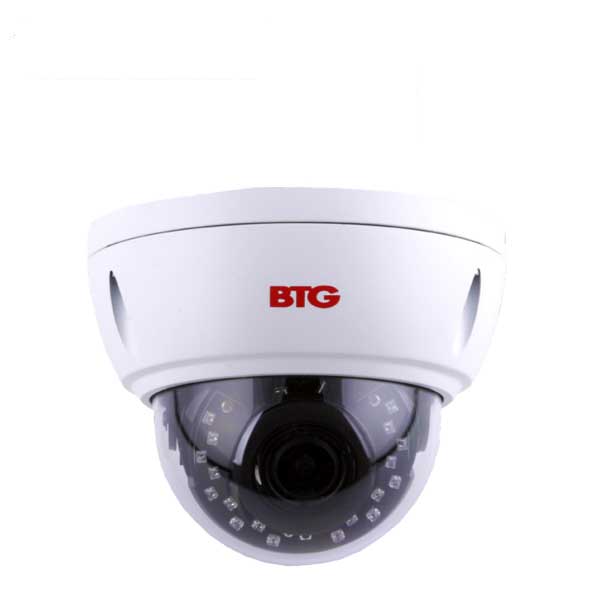

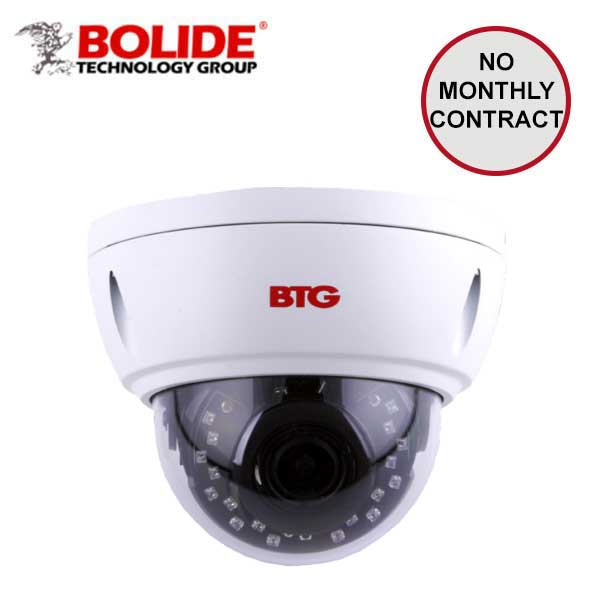

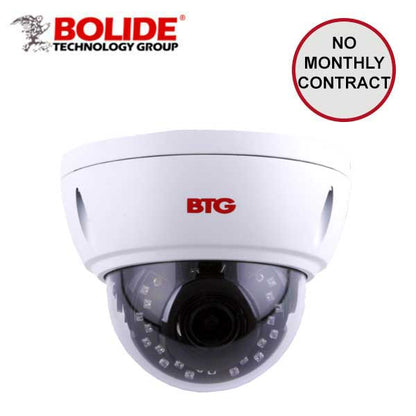

Bolide - N1509AVAIR - IP / 5MP / Dome Camera / Varifocal / 2.8-12mm Lens / Vandal Proof / Outdoor / IP66 / 35m IR / 12VDC POE / Off-White
Bolide - N1509AVAIR - IP / 5MP / Dome Camera / Varifocal / 2.8-12mm Lens / Vandal Proof / Outdoor / IP66 / 35m IR / 12VDC POE / Off-White
Bolide - N1509AVAIR - IP / 5MP / Dome Camera / Varifocal / 2.8-12mm Lens / Vandal Proof / Outdoor / IP66 / 35m IR / 12VDC POE / Off-White
Bolide - N1509AVAIR - IP / 5MP / Dome Camera / Varifocal / 2.8-12mm Lens / Vandal Proof / Outdoor / IP66 / 35m IR / 12VDC POE / Off-White
Bolide - N1509AVAIR - IP / 5MP / Dome Camera / Varifocal / 2.8-12mm Lens / Vandal Proof / Outdoor / IP66 / 35m IR / 12VDC POE / Off-White
Bolide - N1509AVAIR - IP / 5MP / Dome Camera / Varifocal / 2.8-12mm Lens / Vandal Proof / Outdoor / IP66 / 35m IR / 12VDC POE / Off-White
Bolide - N1509AVAIR - IP / 5MP / Dome Camera / Varifocal / 2.8-12mm Lens / Vandal Proof / Outdoor / IP66 / 35m IR / 12VDC POE / Off-White

Bolide - N1509AVAIR - IP / 5MP / Dome Camera / Varifocal / 2.8-12mm Lens / Vandal Proof / Outdoor / IP66 / 35m IR / 12VDC POE / Off-White

$216.00 $259.20
Availability: Available
Wishlist
  • Product SKU: BOL-BTG-N1509AVAIR
  • NSID: 23379
  • BOL-BTG-N1509AVAIR

    The new N1509AVAIR 5MP IR vandal-proof dome network varifocal 2.8-12mm lens camera, with waterproofing. Perfect for places with high activity, this camera is made for tough situations. It will record no matter what is thrown at it. And, Its super easy to install.

    Features:

    • High-performance processor 5.0 mega pixel CMOS imaging sensor
    • Supports 5MP (2592*1944) 15fps monitoring
    • Linux embedded OS, low power consumption, steady and credible
    • Uses H.265+, H265 encoding, high compression ratio and lower stream
    • Supports ICR automatic switchover, achieve round-the-clock monitoring
    • Supports network interrupt, IP conflict, motion detection, video blind smart alarm
    • Supports abnormal automatic recovery and network interrupt auto-reconnect functionality
    • Supports watermark encryption, prevents data tampering
    • Support DC12V/POE, easy to install
    • Supports IP66 waterproofing grade
    • Supports anti-static and surge
    • Supports ONVIF protocol access Infrared distance of 35 meters
    • SDK development kit provided, allows access to other video management platform



    $216.00
    Get it shipped
    Today!
    Order within
    00 Hrs
    00 Mins
    00 Secs

Specifications:

Type: Manual Variable Focal lens
Image Sensor 1/2.7” 5MP Progressive Scan CMOS
Resolution 2592 x 1944
Image System PAL/NTSC
Electronic shutter Manual / Automatic PAL: 1/25 s to 1/50,000 s. NTSC: 1/30 s to 1/50,000 s
Minimum Illumination Color: 0.01 lux @ (F1.2, AGC ON), 0 lux with IR
IR Distance
20-35m (65-115ft)
Focal Length: 2.8-12mm AF Lens
Video Frame Rate
5MP@20fps Main Stream (2592*1944@15fps), secondary stream (D1@25fps)
Video Compression
H.265+/H.265/H.264
Video Bit Rate 8kbps~32Mbps, Customizable
Network Interface
1 RJ45 10/100M Ethernet interface
Network Protocol
TCP/IP/HTTP/RTSP/FTP/PPPOE/
RTCP/SMTP/DHCP/DDNS/NTP/UPnP/SNMP
Access Standard ONVIF
Power Supply DC12V/POE ± 10 %
Power Consumption Max. 8W (Max. 8W with IR cut filter on)
Working Humidity ≤95% (non-condensing)
Operating Temp. -20°C ~ 60°C
Protection Class IP66
Material Metal


Downloads:

BOL-BTG-N1509AVAIR

The new N1509AVAIR 5MP IR vandal-proof dome network varifocal 2.8-12mm lens camera, with waterproofing. Perfect for places with high activity, this camera is made for tough situations. It will record no matter what is thrown at it. And, Its super easy to install.

Features:

  • High-performance processor 5.0 mega pixel CMOS imaging sensor
  • Supports 5MP (2592*1944) 15fps monitoring
  • Linux embedded OS, low power consumption, steady and credible
  • Uses H.265+, H265 encoding, high compression ratio and lower stream
  • Supports ICR automatic switchover, achieve round-the-clock monitoring
  • Supports network interrupt, IP conflict, motion detection, video blind smart alarm
  • Supports abnormal automatic recovery and network interrupt auto-reconnect functionality
  • Supports watermark encryption, prevents data tampering
  • Support DC12V/POE, easy to install
  • Supports IP66 waterproofing grade
  • Supports anti-static and surge
  • Supports ONVIF protocol access Infrared distance of 35 meters
  • SDK development kit provided, allows access to other video management platform


Specifications:

Type: Manual Variable Focal lens
Image Sensor 1/2.7” 5MP Progressive Scan CMOS
Resolution 2592 x 1944
Image System PAL/NTSC
Electronic shutter Manual / Automatic PAL: 1/25 s to 1/50,000 s. NTSC: 1/30 s to 1/50,000 s
Minimum Illumination Color: 0.01 lux @ (F1.2, AGC ON), 0 lux with IR
IR Distance
20-35m (65-115ft)
Focal Length: 2.8-12mm AF Lens
Video Frame Rate
5MP@20fps Main Stream (2592*1944@15fps), secondary stream (D1@25fps)
Video Compression
H.265+/H.265/H.264
Video Bit Rate 8kbps~32Mbps, Customizable
Network Interface
1 RJ45 10/100M Ethernet interface
Network Protocol
TCP/IP/HTTP/RTSP/FTP/PPPOE/
RTCP/SMTP/DHCP/DDNS/NTP/UPnP/SNMP
Access Standard ONVIF
Power Supply DC12V/POE ± 10 %
Power Consumption Max. 8W (Max. 8W with IR cut filter on)
Working Humidity ≤95% (non-condensing)
Operating Temp. -20°C ~ 60°C
Protection Class IP66
Material Metal


Downloads:
