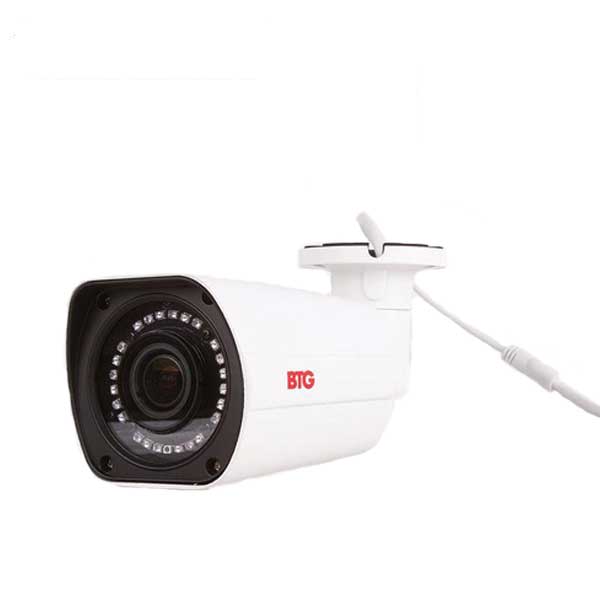

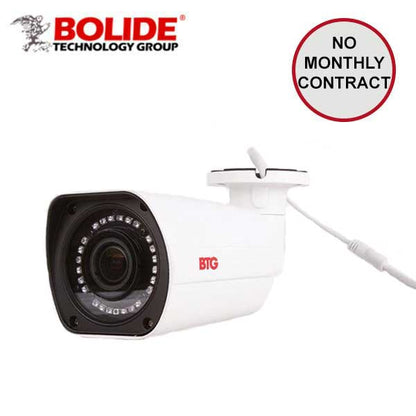

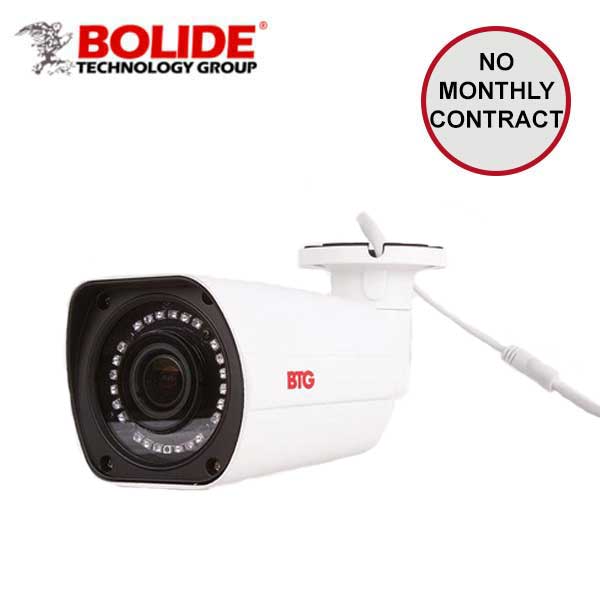

Bolide - N1536 - IP / 5MP / Bullet Camera / Vari-Focal / 2.8-12mm Lens / IP66 / 35m IR / DC12V PoE / White Finish
Bolide - N1536 - IP / 5MP / Bullet Camera / Vari-Focal / 2.8-12mm Lens  / IP66 / 35m IR / DC12V PoE / White Finish
Bolide - N1536 - IP / 5MP / Bullet Camera / Vari-Focal / 2.8-12mm Lens  / IP66 / 35m IR / DC12V PoE / White Finish
Bolide - N1536 - IP / 5MP / Bullet Camera / Vari-Focal / 2.8-12mm Lens  / IP66 / 35m IR / DC12V PoE / White Finish
Bolide - N1536 - IP / 5MP / Bullet Camera / Vari-Focal / 2.8-12mm Lens  / IP66 / 35m IR / DC12V PoE / White Finish

Bolide - N1536 - IP / 5MP / Bullet Camera / Vari-Focal / 2.8-12mm Lens / IP66 / 35m IR / DC12V PoE / White Finish

$194.40 $233.28
Available: In Stock
Wishlist
  • Product SKU: BOL-BTG-N1536
  • BOL-BTG-N1536

    The new N1536 is a 5MP IR Bullet network camera that has a manually controlled vari-focal lens which allows it to take high quality footage of anyone in range. Comes with high-performance processor 5.0 mega pixel CMOS imaging sensor, and is IP66 waterproof.

    Features:

    • Using high-performance processor 5.0 mega pixel CMOS imaging sensor
    • Supports 5mp (2592*1944) 15fps monitoring
    • Using linux embedded OS, low power consumption, steady and credible
    • Using h.265+, h265 encoding, high compression ratio and lower stream
    • Supports ICR automatic switchover, achieve round-the-clock monitoring
    • Supports network interrupt, IP conflict, motion detection, video blind smart alarm
    • Supports abnormal automatic recovery and network interrupt auto-reconnect
    • functionality
    • Supports watermark encryption, prevents data tampering
    • Support DC12V/PoE, easy to install
    • Supports IP66 waterproofing grade
    • Supports anti-static and surge
    • Supports ONVIF protocol access
    • Infrared distance of 35 meters
    • SDK development kit provided, allows access to other video management platforms



    $194.40

Customer Reviews

No reviews yet
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Specifications:

Image Sensor 1/2.5” CMOS
Resolution 2592 x 1944
Effective Pixels 5 Mega Pixel
Electronic Shutter Manual / automatic adjustment, 1/25 sec to 1/10000 sec
Lens Manual Vari-focal
Focal Length 2.8-12mm
Iris  Auto Iris control
Scanning Method Progressive
SNR  >50db
Automatic Gain Control, White Balance
BLC Supported
IR Distance 20-35m (65 - 115ft)
Min. Illumination 0. 1Lux@F1.2(color mode); 0.01Lux@F1.2(black and white mode)
Video Compression
H.265+/H.265/H.264
Video Bit Rate
8kbps~32Mbps, Customizable
Video frame rate Main Stream (2592*1944@15fps), secondary stream (D1@25fps)
Recording mode Manual recording, time recording, recording
descending order of priority: manual/timing
Alarm and Data transmission Support FTP, E-mail Browser, CMS
Privacy masking Supported
Motion detection Supported
Network interface 1 RJ45 10/100M Ethernet interface
Network protocol Support TCP/IP/HTTP/RTSP/FTP/PPPOE/RTCP /SMTP/DHCP/DDNS/NTP/UPnP/SNMP
Access standard ONVIF
Smartphone
IPhone / Android
Power Supply DC12V/POE
Power consumption 12W Max
Working Temp. -20°C ~ 55°C
Working Humidity ≤95%
Protection Class IP66
Material Metal
Mounting Wall Ceiling


Downloads:

BOL-BTG-N1536

The new N1536 is a 5MP IR Bullet network camera that has a manually controlled vari-focal lens which allows it to take high quality footage of anyone in range. Comes with high-performance processor 5.0 mega pixel CMOS imaging sensor, and is IP66 waterproof.

Features:

  • Using high-performance processor 5.0 mega pixel CMOS imaging sensor
  • Supports 5mp (2592*1944) 15fps monitoring
  • Using linux embedded OS, low power consumption, steady and credible
  • Using h.265+, h265 encoding, high compression ratio and lower stream
  • Supports ICR automatic switchover, achieve round-the-clock monitoring
  • Supports network interrupt, IP conflict, motion detection, video blind smart alarm
  • Supports abnormal automatic recovery and network interrupt auto-reconnect
  • functionality
  • Supports watermark encryption, prevents data tampering
  • Support DC12V/PoE, easy to install
  • Supports IP66 waterproofing grade
  • Supports anti-static and surge
  • Supports ONVIF protocol access
  • Infrared distance of 35 meters
  • SDK development kit provided, allows access to other video management platforms


Specifications:

Image Sensor 1/2.5” CMOS
Resolution 2592 x 1944
Effective Pixels 5 Mega Pixel
Electronic Shutter Manual / automatic adjustment, 1/25 sec to 1/10000 sec
Lens Manual Vari-focal
Focal Length 2.8-12mm
Iris  Auto Iris control
Scanning Method Progressive
SNR  >50db
Automatic Gain Control, White Balance
BLC Supported
IR Distance 20-35m (65 - 115ft)
Min. Illumination 0. 1Lux@F1.2(color mode); 0.01Lux@F1.2(black and white mode)
Video Compression
H.265+/H.265/H.264
Video Bit Rate
8kbps~32Mbps, Customizable
Video frame rate Main Stream (2592*1944@15fps), secondary stream (D1@25fps)
Recording mode Manual recording, time recording, recording
descending order of priority: manual/timing
Alarm and Data transmission Support FTP, E-mail Browser, CMS
Privacy masking Supported
Motion detection Supported
Network interface 1 RJ45 10/100M Ethernet interface
Network protocol Support TCP/IP/HTTP/RTSP/FTP/PPPOE/RTCP /SMTP/DHCP/DDNS/NTP/UPnP/SNMP
Access standard ONVIF
Smartphone
IPhone / Android
Power Supply DC12V/POE
Power consumption 12W Max
Working Temp. -20°C ~ 55°C
Working Humidity ≤95%
Protection Class IP66
Material Metal
Mounting Wall Ceiling


Downloads:
